The process’s stability and dependability are key components of PCB manufacturing’s success. Strict tolerances must be upheld throughout the manufacturing process in order to accomplish this. Tolerance in the context of PCB fabrication describes the maximum permitted departure from a given value. A circuit track/trace width, for instance, may have a tolerance of +/- 0.005 inches. This indicates that there is a maximum variation of 0.005 inches in the trace’s width. In PCB fabrication, tolerance is crucial because it guarantees that the final product will perform as planned. Tolerance can be impacted by a number of variables, including design specifications, production procedures, and material qualities. It goes without saying that tolerance management is essential to the PCB manufacturing process’s success.

Why is the thickness tolerance of PCB boards important?

Maintaining dependable and constant performance is why PCB board thickness tolerance is important. In the event that the board thickness deviates from the tolerance range, problems with functioning and assembly may arise. Respecting industry standards can increase consumer satisfaction and the product’s perceived trustworthiness, while accurate thickness tolerance guarantees correct fit and lowers the possibility of harm.

Recognizing tolerances in PCB fabrication

Electronic device performance is guaranteed to be consistent and dependable when PCB fabrication tolerances meet industry requirements. The permitted variation in thickness that may result in fitting issues and impact electrical characteristics is referred to as the PCB thickness tolerance. Ensuring device compatibility and achieving design criteria during production necessitates maintaining the desired tolerance. It is necessary to adhere to legitimate IPC guidelines and other quality control methods. Applications with extremely high requirements may be difficult to satisfy if suppliers and customers are misinformed about smaller tolerances. Consultations with experts can assist in overcoming even the most difficult design obstacles.

Tolerances for copper width and spacing.

For PCB board manufacturing to be successful, precise copper width and spacing tolerances must be maintained. In extremely demanding applications, signal distortion, overheating, and short circuits can be avoided by following legitimate IPC requirements and making sure that the copper width and spacing stay within the intended tolerance range. To determine whether reducing tolerances is feasible, suppliers should be consulted. Errors in the finished hole size, annular ring, or copper weight might result from miscommunication during the layout phase. Complying with the correct dimensions for the hole, pad, v-cut, and plating thicknesses can meet even the most difficult design problems without sacrificing component overages.

Annular Ring Tolerance

 Pcb Hole size Tolerances

Tolerances for PCB drilling

Achieving optimal control over PCB drilling tolerances is essential for producing printed circuit boards (PCBs) of superior quality. It impacts the device’s overall functioning and component performance, in addition to tolerances for multilayer board thickness and copper width and spacing. PCB makers must follow legitimate IPC requirements or internal tolerance guidelines as smaller tolerances become required for extremely demanding applications. Boards can satisfy even the most difficult design issues if they meet all the requirements, such as completed hole size, pad size, and annular ring.

PCB runnermanufacturing capability to acheive minimum drill hole size of 0.2mm and maximum hole size of 10mm with PTH tolerance ±3mil and NPTH ±2mil.

Tolerance for thickness of multilayer boards

For printed circuit boards with multiple layers, maintaining the thickness tolerance correctly is essential (PCBs). Variations in the board’s overall thickness could result in issues with heat dissipation and signal interference, which would ultimately impair the functionality of the device as a whole. When creating multilayer PCBs, the producer must follow stringent instructions and have appropriate control over variables like the quantity of layers and copper weight. When creating a multilayer circuit board layout, internal standards regarding board fabrication tolerances should be taken into consideration. It has become essential to meet design specifications; therefore, for feasibility consultations, a copy of the IPC Guidelines is helpful.

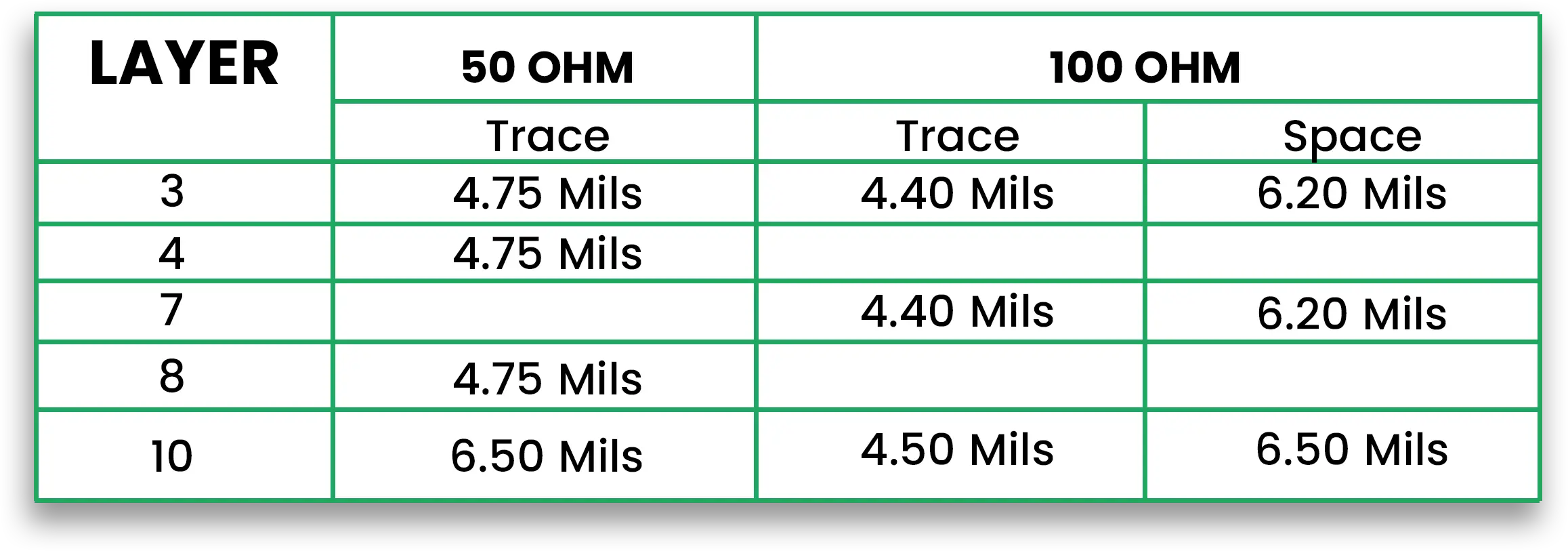

PCB design with controlled impedance tolerances

For electrical equipment to perform as well as possible, controlled impedance tolerances in PCB design are essential. Deviations from the required thickness may result in problems with signal integrity that could have a major effect on performance as a whole. To achieve smooth integration and efficiency, it is also crucial to assure optimal compatibility with other components and manufacturing processes. Throughout the manufacturing process, ensuring consistent quality depends on adherence to industry norms and specifications. PCB runner offers ±10% tolerance for impedance it means that at 80ohm to 110ohm the circuit will provide 90ohm and 100ohm resistance respectively.

Tolerances for routing/trace & spacing in PCB manufacture

In order to guarantee that electrical gadgets operate as intended, PCB manufacturers must maintain uniform routing/trace & spacing tolerances. Deviations from the required tolerance for thickness may result in problems such as delamination or warping. Keeping accurate circuit board assembly and performance demands adherence to industry standards and guidelines. Even the most difficult design problems can be avoided by adhering to uniform routing tolerances throughout all facets of PCB design and fabrication, from layout procedures to consulting. Reducing component overages while fostering stronger supplier relationships is another benefit of achieving tighter tolerances, which also guarantee high-heat performance.

Every single one of these components has a tolerance limit once the assembly is finished. Usually, this fluctuation alludes to what is known as a tolerance stack-up. To put it briefly, tolerance stack-up is the result of placing additional tolerances on top of each other. As one might expect, if a tolerance stack-up is not appropriately addressed and controlled, it can lead to harmful functional and manufacturing difficulties.

 Tolerance stack-ups are typically used to estimate the consequences of the cumulative variation permitted by certain dimensions and tolerances in order to characterize the problem-solving process. These measurements and tolerances are usually specified on an engineering plan or design.

Usually, tolerance stack-up is carried out with software that enables accurate simulations and computations of all component dimensions and tolerances. By meticulously measuring and computing each component’s measurements and tolerances, this can also be done by hand.

Tolerance Chart of PCB Runner for different PCB types

 The drilling tolerances offered at PCB runner are ±3mil along with secondary drill size ±10mm and routed slot ±0.10mm. All these are compliant with international manufacturing standards.

PCB runner is providing the manufacturing tolerances in compliance with the IPC-A-600 manufacturing standards.

For rigid PCBs the manufacturing tolerances offered are thickness tolerance which is about minimum -0.10mm and maximum +0.10mm. These values can vary by 10%.

Same is the case with line width tolerance offered at PCB runner which is minimum 10% and maximum 20% . Another type of tolerance includes external dimension tolerance which is ±5mil and V-cut tolerance ±5degree.

Tolerances in solder mask features during PCB assembly

During PCB assembly, it is essential to maintain solder mask feature tolerances correctly. Since any variance in thickness could cause warping or perhaps the circuit board to fail completely, the prescribed tolerance must be adhered to. Maintaining appropriate thickness tolerance enhances production consistency and yield rates while ensuring that parts fit correctly, and the board functions as intended. Solder mask clearance tolerance by PCB runner is standard 2.0mils and advanced 1.5mils. For outer  layers solder mask clearance offered at PCB runner 4mils standard and 3mil advanced. Our highly competitive team offers this solder mask feature during assembly process complying with the IPC-6012 standards.

PCB Runner offers turnkey solutions which includes custom design layout, fabrication, components procurement & assembly labor, for all industries. Our expert design layout team efforts help the end R&D engineers/ Buyers/ Purchasers to reduce their time by being back & forth to design PCB based on manufacturing capabilities & running DFM & DFA twice. You are welcome to submit your design files to our email at sales@pcbrunner.com or engineering@pcbrunner.com.

Introduction:

Electronic parts that are no longer manufactured or distributed by the original manufacturer are known as obsolete electronic components, and the only place to find them is via distributors of obsolete electronic parts. This may be the result of various factors, such as modifications in manufacturing techniques, advancements in technology, or just a deficiency in demand. Distributors of obsolete components might offer transistors, capacitors, resistors, and other electronic components.

The expenses associated with a faulty manufacturing line vary depending on the company’s size, the industry it works in, location, the products it produces, and other factors. But when a breakdown happens, the sensation of powerlessness and frustration is universal. Finding a seasoned partner who can get replacement parts for you if manufacturing is halted or slows down is one approach to feel at ease.

PCB Runners are experts in locating and distributing out-of-production and challenging-to-find electrical components. With many years of business expertise, we have provided thousands of enterprises with current production requirements, related products, and obsolete electrical components. PCB Runner can locate any component, even an outdated electronic one, if it exists across the globe thanks to the company’s extensive global supplier network. Naturally, finding a replacement for an electronic component gets even harder after it becomes outdated. This is why you need an expert with years of expertise working with this kind of component as well as exposure to all the most recent obsolescence data.

PCB Runner’s Obsolete Component Sourcing Services

Obsolescence problems can result in unfavorable experiences, which can severely damage consumer loyalty and company reputation. These experiences can include missing a product, problems with the product’s quality, a lack of vendor support, or anything else. Manufacturers may stop issues from harming their customers and their business in the long run by monitoring obsolescence and making plans for it.

With information insight for your technology, sourcing, distribution, and compliance oversight, ESG strategists, and business leadership, PCB Runner’s integrated platform offers a comprehensive, data-driven approach to supply chain risk management. Our global team of professional experts consists of engineers, designers, R&D innovators, product managers, supply chain/manufacturing professionals, sales/customer service staff, and quality assurance personnel. We have world-class production facilities and we are certified for ISO9001, and qualified for IPC Class 2, 3, and 3 for which we have aligned our quality systems and technology roadmaps.

To help their clients get the best deal possible, PCB Runner makes it their goal to bargain with suppliers to get the greatest terms and quality. PCB Runner is in a great position to negotiate advantageous terms for their clients because they frequently have long-standing relationships and a history of dealing with their suppliers. PCB runner’s primary responsibility is to oversee the procurement procedure from start to finish. They are therefore essential to supply chain management, particularly for companies that depend on outsourcing or global trade.

For you to strike a fair bargain with a dependable and trustworthy sourcing agent, a committed team of PCB Runners takes on the job of assisting your company with an approach to sourcing and identifying suppliers for you to make your items.

Obsolete Component Sourcing Process

It can be difficult to get obsolete electronic parts, but don’t worry; we’ve put up a list of advice that will help you improve your chances.

Make Contact:

Getting in touch with other enthusiasts through online groups and discussion boards devoted to technology and electronics can be beneficial. Making connections with people who share your interests could lead to the discovery of new suppliers for hard-to-find electronic components as well as insightful knowledge on how to acquire them.

Go to the Local Electronics Stores:

When looking for uncommon electronic parts, don’t rule out your neighborhood electronics stores. They might be willing to order the part for you or know how to find it even if they don’t have it in stock.

Examine Internet Marketplaces:

Rare electronic parts can also be found in abundance on websites like eBay and Amazon. Before making a purchase make sure to check the seller’s ratings and reviews to be sure you are working with a trustworthy vendor.

Make Use of Part Number Lookup Engines:

By simultaneously searching several suppliers and databases, part number search engines like “FindChips” and “Octapart” can assist you in finding hard-to-find electrical parts. The search engine can take care of the rest if you just enter the part number.

Industries Served

With the help of our extensive industry and product expertise base and global supplier network, we offer complete solutions for out-of-production and obsolete electrical components. Some of the main markets we serve are as follows:

Medical:

To perform life-saving procedures, the medical industry depends on robust, high-quality electronic devices. Our staff at PCB Runners is devoted to finding dependable medical parts so that decisions involving life and death are made correctly.

Aerospace and Defense:

At PCB Runners, we are aware of the significance that part legality and quality hold for our aerospace clients. We uphold a zero-tolerance stance because of this.

Communications:

The skilled staff at PCB Runners has been putting in a lot of effort to provide sophisticated supply chain administration solutions to facilitate the digital growth of the telecom industry. We can assist telecom customers in finding parts fast, including those involved in the 5G revolution.

Internet of Things:

IoT companies have to handle intricate supply chains and acquire necessary parts to keep up manufacturing and satisfy consumer demands for electronic products. We at PCB Runners can help IOT companies quickly get tracking sensors, replacement parts, and other items. Working with an international community of suppliers of old components, PCB Runners offers a plan to keep your products manufactured even if obsolescence starts to become a problem.

Quality and Compliance

We take the following steps to ensure quality control for providing obsolete components to our clients.

Supplier assessments:

This assessment entails a methodical, ongoing assessment of suppliers. We evaluate a supplier’s ability to satisfy quality requirements consistently by looking at things like the company’s quality management systems, trade references, and accreditations.

Component inspection:

It comprises internal assessments of every electronic component that is received. Our component inspection method consists of visual examinations, dimensional checks, scrape testing, resurfacing, and other procedures.

 Supplier Qualification:

Some criteria are taken into account to qualify suppliers during the assessment process. These elements could consist of the supplier’s standing in the market, financial soundness, accreditations, quality control procedures, and conformity to industry norms.

Quality control systems:

Evaluating a supplier’s quality control systems can reveal information about how well-equipped they are to regularly deliver components of the highest caliber. To verify compliance with quality standards, this assessment may entail looking into testing protocols, inspection techniques, processes, and traceability systems.

Previous Results and Track Record:

Assessing a supplier’s prior results is essential to determining their dependability and consistency. Examining their track record of producing flawless components, their receptiveness to quality concerns, and their dedication to ongoing development are some of the tasks that may be included in this evaluation.

Why Choose PCB Runner for Obsolete Components

• With its global part search capabilities, PCB Runner provides a high-quality, completely traceable, and quick-turnaround component sourcing service that is valued by both smaller, independent companies and some of the world’s largest brands.
• With the use of the newest part-search technologies and a distinct network of international sourcing agents, PCB Runner can identify obsolete or difficult-to-find components far more rapidly and accurately than its competitors.
• With our extremely efficient and reliable part-sourcing service, we will ensure that your manufacturing line continues to run while providing a completely traceable and time-sensitive supply chain solution.
• We are aware that every client and their needs are unique and distinct. Customers need to be able to trust their source to fulfill their needs, in our opinion. Our specialty is assisting clients in launching their goods into the market as quickly as feasible.

PCB Runner offers turnkey solutions which include custom design layout, fabrication, components procurement & assembly labor, for all industries. Our expert design layout team efforts help the end R&D engineers/ Buyers/ Purchasers to reduce their time by going back & forth to design PCB based on manufacturing capabilities & running DFM & DFA twice.

You are welcome to submit your design files to our email at sales@pcbrunner.com or engineering@pcbrunner.com

Printed circuit boards, or PCBs, are the building blocks of electronic devices because they allow signals to flow between components and provide electrical connections between them. Vias, which create interlayer connections, are one of the essential components of PCB design. One popular form of via that is essential to obtaining the best possible performance, reliability, and signal integrity is the staggered via. The purpose of this note is to examine the features, benefits, applications, and manufacturing considerations of staggered vias in detail. As seen in the figure below, they have a conical shape but are joined without overlapping to make an impressive structure.

Characteristics and Layout:

Staggered vias are distinguished by their distinct entry and exit locations on various PCB layers. In order to minimize the possibility of signal crosstalk between neighbouring vias, the entrance and exit points are purposefully spaced apart. This offset design minimizes interference possibility and preserves signal integrity while improving electrical performance.

Benefits of Staggered Vias:

Signal Isolation:

Staggered vias greatly lessen the chance of signal interference between neighbouring vias by offsetting the entry and exit sites. In high-speed applications, where preserving signal integrity is critical, this trait is very important.

Improved Electrical Performance:

Higher-frequency signal transmission is made possible by staggered vias’ reduced resistance and inductance. Improved overall electrical performance is a result of the decreased parasitic effects.

Ease of Manufacturing:

When compared to more sophisticated via types, staggered vias are comparatively easier to create. They necessitate perforating the entire printed circuit board, and the offset design is simply incorporated into the manufacturing process.

Tighter designs:

Upon closer inspection of the high-density interconnect PCB, we can see that the circuit network connections on the board are extremely intense. Because of its tremendous intensity, the board appears to require less actual physical space. The designers can create more compact constructions by utilizing design elements like tacked and staggered vias, which will increase the versatility of HDI circuits.

Reduced trace lengths:

In comparison to other regular vias,  have shorter trace lengths. The smaller dimensions and sizes of the staggered are the cause of this. Additionally, a micro via’s smaller size enhances its FR capabilities and EMS features.

Outstanding dependability:

Staggered via is far more inventive and efficient than through-hole when taking reliability into account. Compared to other vias, microvias are far more dependable, regardless of the size of the circuit board. Microvias are a dependable solution for preserving a circuit board’s thermo-mechanical dependability. Additionally, a PCB’s functionality and performance are impacted by staggered via reliability.

Encouragement of cutting-edge technology:

This is just another fantastic advantage of microvias. Staggered fit into a PCB with less room. As a result, they enable the production of compact and smaller PCBs. Compact PCBs are also now a common feature of contemporary electronics.

Manufacturing challenges of PCBs using staggered vias

Drilling:

Using a laser to drill micro vias frequently requires exact adjustment of the laser’s parameters to ensure that the holes produced are the right size and form.

Plating:

Specific plating techniques must be used to ensure that micro vias are correctly attached to the other printed circuit board (PCB) layers.

Examine:

Staggered Microvias may be difficult to visually verify, thus non-destructive testing methods may be required to ensure proper production and connection.

Selection of materials:

The materials chosen for use on the printed circuit board can have a big impact on how reliable staggered micro vias are. The materials utilized in the production of micro vias must be of a high grade.

Select Top-Rated PCB Manufacturers:

It’s critical to find a reputable manufacturer who guarantees accurate positioning of staggered vias. The best manufacturers are able to perfectly design the PCB board to fit your specifications. Their state-of-the-art and well-equipped manufacturing facility operates high-tech machinery and processes. Providing consistency and quality should be the aim of a PCB maker. Thus, deal with the PCB manufacturing company to obtain a superior product.

PCB Runner provides all services under one roof as a PCB manufacturer in the UK and Europe and a PCB assembly service provider in the UK and Europe. Our clients receive single-window service. In order to make it easier for our customers to work with our printed circuit board production and assembly skills, we offer exclusive services. Our clients pick us because we provide:

Trusted PCB Provider in Europe and the UK
24 Hour Tech Support Using PCB Runner

High-Grade PCB Manufacturing in the UK and Europe
Get A Free PCB And Assembly Quote Right Now

Pcb Runner manufacturing capabilities

Advanced PCB Board Types

We provide a range of sophisticated PCB board kinds and HDI board types, including the following:

• From the topmost layer to the bottommost layer, via vias
• Blind vias connecting two or more HDI layers to a surface layer
• Buried /staggered  amidst two or more inner HDI strata
• Substrates that are passive and not connected electrically
• Coreless structure with pairwise layers
• Coreless construction alternative using a pair of layers

There are more benefits when you use our HDI boards. By simply converting their current design to an HDI board design, any innovative organization can reap the benefits of HDI boards. Manufacturer of High-Density Interconnect, PCB Runner, provides a wide range of services for converting your advanced printed circuit boards to HDI PCB design.

Buried staggered via – How Are Buried and Blind Vias Constructed?

Drilling

The multilayer lamination can be done either before or after the vias are formed. Drilling is used to add the blind and buried vias to the PCB, which might be risky. It is critical that the builder comprehends and is conscious of the drill’s depth. Insufficient depth in the hole could prevent a strong connection. However, if the hole is too deep, it may result in distortion or a deterioration of the signal. It wouldn’t work if any of these things happened.

The process of sequential lamination

A hydraulic press is used to laminate the layers of copper in a printed circuit board (PCB) together at high temperatures and pressures. The layers are separated by a fibreglass sheet that has been pre-impregnated with epoxy. Sequential lamination can be used to incorporate buried vias into a PCB. A PCB with buried vias is produced by first creating a layer with blind vias (as though it were a two-sided PCB) and then consecutively laminating this layer with an inner layer.

Plating and Metallization

Each staggered microvia hole contains tiny conformal seed layers of metal deposited by electroless copper techniques. Thicker metal is subsequently deposited in a subsequent copper electroplating operation until the via is filled to the level of the pad surface. For reliability, a flawless, void-free copper plating is essential.

Process Management

To maximize manufacturing yield, integrity must be maintained throughout the drilling, metallization, and imaging processes. In order to maintain depth uniformity, plate quality, microvia diameters, and capture pad sizes within allowable tolerances and move toward 6 sigma capability levels, statistical process controls are in place.

Staggered Microvia PCBs balance cost restrictions and achieve strict functionality requirements during volume manufacturing by utilizing such disciplined methodologies.

Applications of Staggered Via PCBs

Staggered vias are widely used in many different contexts, such as:

1. Consumer electronics:

These devices are frequently used in laptops, tablets, cellphones, and other portable devices when limited space demands effective interconnection solutions.

2. High-Speed Designs:

In high-speed PCB designs, like those used in data centres, networking equipment, and telecommunications devices, staggered vias are preferred. Staggered vias are perfect for processing high-frequency signals because of their improved signal integrity characteristics.

3. Multilayer PCBs:

Staggered vias work well in these situations because they offer a dependable way to connect the various layers of the board.

4. Defence and Aerospace:

Aerospace applications are characterized by strict quality standards and long working lifetimes. Staggered microvias maintain G-forces under extreme circumstances and combine steering systems.

5. Medical Equipment:

Staggered Microvias in implanted devices, ultrasonic transducers, and other instruments are motivated by the connecting of multilayer rigid-flex-rigid printed circuit boards that conform to human anatomy.

6. Emerging Applications:

Staggered Microvia PCBs will be essential to the intrinsic scalability of consumer IoT networks and associated edge devices as sophisticated circuitry moves toward self-learning capabilities.

The needs for electronic functionality seem to be growing with each new generation of products. Microvias are therefore still being used at an exponential rate on a global scale in businesses where intelligence, speed, and efficiency criteria are always increasing.

Quality and Compliance

Strict Quality Control

At PCB Runner, we recognize the value that PCB functionality and quality have for our clients. For this reason, we incorporate quality-oriented concepts throughout every stage of the assembly and production of PCBs. We are still dedicated to conducting all PCB-related activity in accordance with recognized worldwide quality standards.

We ensure that every one of our assembled and bare PCBs meets or surpasses the exact specifications provided by our customers. Our reputation for excellent quality, timely delivery, and competitive pricing is attested to by our clientele.

Our products are guaranteed to be of the highest quality and dependability thanks to our strict manufacturing procedures. International standards like ISO9001 are met by us, and we are eligible for IPC Classes 2, 3, and 3A.

ACCREDITATIONS

We withhold a number of PCB certifications as a symbol of our dedication to the quality management system, demonstrating our steadfast commitment to upholding standards of quality.

Use the icons below to browse through our official certifications.

The 2015 ISO 9001 standard

ISO 14001:2015

ISO 13485:2016

Our engineers are all certified IPC A-610 personnel. Please get in touch with us if you would like more information.

The following six quality control areas are what you should search for in a PCB CM:

• IPC accreditation: Your board’s production technicians must be qualified in soldering, reworking, and other assembly tasks.
• Component knowledge: To ensure that your board is constructed using the best parts, the CM should have engineering procedures and checks in place.
•  Controls for processes: System and assembly methods that are documented are essential to preserving manufacturing process uniformity.
• Verifications of assembly: Solder joints on assembled boards should be checked both before and after soldering.
• Exam and evaluation: Every task must be continuously confirmed using a variety of automated and manual inspection methods.
• Practical workstation: Complex printed circuit board assemblies must be constructed on an orderly and well-maintained assembly line that spans the factory and includes each individual workstation.

Advantages of choosing us:

For the production and assembly of fully functional printed circuit boards, PCB Runner is the recommended option. The diversity and adaptability of the solutions we provide are preferred by our clients. We provide every kind of printed circuit board you need, ranging from single-layer to multi-layer, rigid boards, rigid-flex boards, and HDI boards. No matter the quantity of your purchase, we can handle boards of any form or size that you require.

The fact that PCB Runner has specialists for every step of PCB assembly and manufacturing is by far our greatest asset. We provide PCB fabrication and assembly services that are full turnkey, partial turnkey, and full feature. To put it briefly, we provide a comprehensive end-to-end solution for your projects. From design and manufacturing to assembly, testing, packing, and shipping, our professionals will be at your side every step of the way.

You will quickly see the benefits of working with PCB Runner for your PCB fabrication and assembly since they are a one-stop shop, saving you the trouble of contacting multiple businesses to finish your project.

Our Proficiency

• PCB Panels
• Layer Stackup, Blind, and Buried
• Lead Free
• Soldering Through Laser
• Micro Via
• via in Pad
• Full-Featured PCB Manufacturing and Assembly Capabilities offered by  PCB Runner
• Stiff PCBs
• Flexible PCBs
• PCBs that are rigid-flexible
• PCBs using High Density Interconnect (HDI)
• PCBs with many layers

Base Materials for PCBs

What we can offer you is:

• PCBs at High Temperatures
• PCBs that comply with RoHS regulations
• PCBs with High-Frequency RF
• Fast Digital PCBs
• Prototype PCB Assembly, PCB Services, and PCB Assembly
• Sources for Components: Low Volume, High Volume, Partial Turnkey, and Full Turnkey PCB Assembly

Read More: Stacked Via PCB Manufacturing Services for UK and Europe

Conclusion

An essential component of PCB design, staggered vias allow for effective interlayer communication while preserving signal integrity. Their special offset design improves electrical performance and lessens signal interference, which makes them appropriate for a variety of uses, especially in multilayer PCBs and high-speed designs. The significance of staggered vias in producing dependable and high-performing printed circuit boards (PCBs) will not diminish as technology advances, propelling improvements in manufacturing processes and guaranteeing the continuous development of electronic products.

PCB Runner specializes in Staggered Via Manufacturing with complex specifications for all industries and critical design requirements. Please do submit your schematics & BOM files to our email at sales@pcbrunner.com or engineering@pcbrunner.com

High Production Volume, High Quantities of PCBs

After the verification of the prototype, do you intend to produce PCBs in big quantities and at high volume? Over the years, MADPCB has established a solid reputation with both local and international clients, earning them the trust of those looking for a dependable PCB fabrication service and an expedited PCB prototype. We can create stiff boards with 1–30 layers, flexible printed circuits (FPCs) with 1–8 layers, rigid–flex boards with 2–20 layers, and metal core PCBs (MCPCBs) with 1–4 layers, either with or without laser drilling micro vias technology. For clients with specific or varied service needs, MADPCB, a China-based all-in-one PCB solution supplier, additionally offers PCB design, assembly, functional testing, and reverse engineering services.

In selecting special materials PCB manufacturing, the following manufacturing issues might occur:

Materials: Certain materials work well for certain circuits when it comes to the materials required to create a PCB, for example. Ultimately, they won’t offer the optimum signal integrity performance if alternative special materials PCB are specified in the board layer stack ups. Additionally, there are instances where the materials needed for the design aren’t economical to manufacture or appropriate for the board’s working settings.

The greatest method to guarantee error-free production is to work with a quality CM to optimize your design. You’ll find that they are an excellent source of DFM information.

To accomplish this, your CM must to have a group of engineers who can check your design for DFM problems and offer suggestions for improving production. A group of component engineers should also be able to examine your parts, so you won’t be caught off guard by any that are unavailable or not advised for production.

Naturally, there may be instances in which you have a board that needs to be manufactured quickly for a proof of concept, product demo, or prototype, and you won’t have the time to work through all of the DFM concerns. Thankfully, the majority of CMs can assist you by utilizing what you already have. Sometimes the CM can adjust quickly. At times, during production, they will make impromptu corrections to manufacturing issues. The true secret is to collaborate with them in advance and address as many DFM concerns as you can in the original design to minimize the amount of cleanup that needs to be done afterwards.

To avoid typical PCB manufacturing issues, collaborate with a CM who possesses an exceptional ability to fulfil your requirements. Selecting a partner with the appropriate experience and knowledge will guarantee that even the most challenging PCB designs are constructed and finished to your satisfaction.

PCB Runner is a leading provider of special materials PCB manufacturing services.

PCB Runner has been the top PCB manufacturing and PCB assembly service supplier in the UK and Europe for over a decade. As quick turn manufacturers, we specialize in both small and large production numbers. We meet the requirements for IPC Classes 2, 3, and 3A and have an ISO9001 certification. PCB Runner provides printed circuit boards of the highest calibre, dependability, and prompt delivery to a variety of industries. Whether they are in the military, aerospace, defence, medical, or any other area with vital applications, our customers depend on us to provide PCBs. One of the few UK-based PCB manufacturers and PCB assembly service providers is PCB Runner.

• Trusted PCB Provider in Europe and the UK
• 24 Hour Tech Support Using PCB Runner
• High-Grade PCB Manufacturing in the UK and Europe
• Get A Free PCB And Assembly Quote Right Now

Our Abilities

• Stiff PCBs
• Flexible PCBs
• PCBs that are rigid-flexible
• PCBs using High Density Interconnect (HDI)
• PCBs with many layers
• PCB prototypes

Process followed for Special Materials PCB Design and Production

Analyzing requirements and choosing components

Analyzing the requirements and choosing the right components, such as the CPU and power supply, is the initial stage in PCB design. Design a blueprint that satisfies every need.

Front-end design within the system

PCB design software is first used to create PCB layouts. Commercial software for PCB design includes Altium Designer, Autodesk EAGLE, KiCad EDA, and OrCAD. A PCB schematic Gerber file is often the result of this design. Copper tracking layers, drill drawings, component nomenclature, and other parameters are among the data encoded in Gerber files.

Photo tool Launch

Before beginning the production of circuit boards, the Design for Manufacture (DFM) check must be performed. This is to prevent design inconsistencies. Subsequently, a laser printer/plotter is used to image the PCB onto a photo film. Accurate registration holes are punched into each film sheet to align the various layers of the PCB picture film. The purpose of the film is to assist in the creation of a copper path figure.

Inner layer printing

The substrate is taken, chopped, cleaned, and dried. It is often a composite epoxy substrate. The substrate has copper pre-bonded to both sides of it. The most crucial element in preventing short circuit or open circuit problems is panel cleanliness.

Removing the undesired copper with etching

After that, unhardened copper material is removed from the panel by washing it in an alkaline solution. Beneath the photoresist layer that has solidified, the desirable copper layer is completely shielded. After that, the photoresist covering the copper layer is likewise taken off. Thus, the only copper layer that remains intact is the necessary one.

Punching registers to align layers

Registration holes are created by aligning and visually punching the various layers. The inner and outer layers will line up as a result.

Punching registers to align layers

Registration holes are created by aligning and visually punching the various layers. The inner and outer layers will line up as a result.

Optical inspection carried out automatically

Errors in inner layers cannot be corrected after lamination. Therefore, prior to bonding and lamination, the panel is put through an automated optical inspection process. Using a laser sensor, the device examines the layers and, if any inconsistencies are found, lists them by comparing them to the original Gerber file.

Build up and Connect

An aluminum press plate holds the PCB panel’s layers together. Copper foils are pressed over the original layers of a double or multiple later PCB, with insulating layers positioned in between, and the etching process is repeated. Ultimately, the PCB panel receives its final shape from the lamination of all the layers together.

Drilling

Next, holes are drilled into the PCB stack. The electronic components of the PCB, including the via holes, are supposed to be positioned and connected in these holes. A hole that is drilled has a diameter of between 100 and 150 microns. Drilling is an exact technique that requires precision. To attain accuracy, one can utilize X-Y coordinate systems or laser locators.

Platting and Copper Deposition

After drilling, this procedure involves applying a new layer of copper to the entire panel. It covers the nonconductive special materials PCB that were exposed following drilling and also ties the panels together. For plating, a chemical electrolysis setup is employed. To guarantee correct connection, approximately 25 microns of copper are inserted into the drill holes.

Copper etching and outer layer imaging

A photoresist material is put over the outer copper layer, just like in step 3, and they are then photographed. The excess copper is removed, and a protective tin guard coating is placed over the necessary copper region. This is followed by the establishment of PCB connectors.

Application of Solder Mask

After cleaning the board, the solder mask is put on. The purpose of the solder mask is to shield the board from corrosion and copper oxidation. Applying an epoxy and a solder mask together gives the board its typical green hue. UV light exposure removes unwanted solder masks. The board is then cooked in the oven.

Silver or gold surface polish

After that, the PCB is plated with a hot air solder levelling finish or lead-free HASL in gold, silver, or bronze. This protects the copper and makes it possible for the components to be soldered to the pads that are made.

The silkscreen

The process of printing all of the important information on the PCB, including component numbers, manufacturer identification, company name, and debugging locations, is called silk screening or profiling. This is helpful for maintenance and repairs.

Conduct an electrical test

Probe testers are used for electrical testing. Tests for both open and short circuits are run. Functional reliability is ensured via electrical tests. Functional tests are followed by durability testing.

V-Measuring

The fabricated panel is cut to reveal the real PCB. PCBs are cut to precise dimensions and forms in accordance with the customer’s design and the original date on the Gerber file.
The board may be readily removed from the panel thanks to the V-cuts created along its sides.

Packing and final examination

PCBs go through a quality and final visual check. Test results are given to customers for validation. To avoid any physical damage to the boards, the packaging is either vacuum sealed or airbag/air pocket packaged.

Quality of PCB Manufacturing

During the process of fabrication and assembly, quality requirements are maintained by:

• Statistical process control monitoring rates of scrap and defects
• Thorough inspection verifying the output of the operation
• Frequent machine calibration and maintenance
• Adherence to strict industry standards such as ISO and IPC
• Tight supplier quality control procedures
• Supervision of the manufacturing floor environment for quality assurance
• Thorough examination of the completed boards, in-process materials, and raw materials
• Initiatives for continuous improvement to reduce flaws
• Quality control guarantees dependable, consistent PCB production.

Applications of Special Materials PCBs

Medical area

The following are a few typical medical PCB devices: Medical imaging systems: CT, CAT, ultrasound scanners; monitors: blood pressure, glucose, and heart rate monitors; and the computers that gather and interpret these images.
insulin and patient-controlled analgesia pumps are examples of infusion pumps, inside gadgets, such as pacemakers. PCB contributes significantly to raising the standard of medical care by providing tools and equipment that help physicians discover problems and increase their accuracy and efficiency.

End-user devices

Flexible printed circuit boards, or FPCs for short, are a type of PCB made primarily of polyester or polyimide film. FPC gains popularity with its high density, lightweight, thin thickness, bending resistance, flexible construction, and resilience to high temperatures under the trend of intelligent and thin mobile electronic products. The following consumer electronics include PCBs. Communication devices, such as radios, tablets, smartphones, and smartwatches. Entertainment systems include stereos, video game consoles, and televisions. home appliances, such as coffee makers, microwaves, and refrigerators.

Aerospace sector

The aerospace sector has more stringent specifications, requiring PCBs to be durable and resistant to oxidation. The primary USB of any operating system used by the aerospace sector is the PCB assembly with heat management. The PCB heat dissipation design can be implemented using a compact architecture for heat dissipation. Heavy-duty, highly tailored PCBs are essential to electronic equipment used in aircraft. In the aerospace sector, PCBs are used in the following ways: power: satellites, control towers, and airplanes;  accelerometers, pressure sensors, and communication equipment as surveillance tools.

Applications for the military and defence

PCBs are used in many different applications, such as computers, guns, cars, and communications equipment. Military equipment frequently uses materials like copper, aluminium, and high-temperature laminates. The applications are listed below. Radio communication systems are examples of communication equipment. Control systems, including missile detection and radar jamming systems.

apparatus: monitor

Quality and Compliance

In the electronics manufacturing sector, PCB Runner, a seasoned provider of expert PCB creation services, has over ten years of experience. The majority of the businesses we manufacture PCBs for are global in scope and have been with us since the beginning. We work hard to keep our clients’ satisfaction levels at or above 99%, and we take pride in offering the best service available. We are able to adapt to our client’s changing needs because of our flexibility. Because we are adaptable, we can work with the most precise, efficient, and economical design and manufacturing methods.

Engineers, designers, R&D innovators, product managers, supply chain/manufacturing specialists, sales/customer service representatives, and quality assurance workers make up our multinational team of professional experts.

Our production facilities are of the highest calibre, and we have synchronized our quality processes and technology roadmaps to meet the requirements of IPC Class 2, 3, and 3A. We are also accredited for ISO9001.

Why Choose PCB Runner for Special Materials PCB Manufacturing?

The Netherlands-based PCB maker is aware that every client and their needs are unique and distinct. Customers need to be able to trust their source to fulfil their needs, in our opinion. Our speciality is assisting clients in launching their goods into the market as quickly as feasible.

One of the rare businesses that actually manufactures boards in-house is PCB Runner. We manufacture every kind of board, including:

• Aluminum-based metal PCBs
• PCBs using Rigid-Flex (FR-4 and Polyimide)
• Board flex (polyimide)
• Through-Holes, SMT, BGA, and other HDI boards
• Lead-Free Boards that Comply with WEEE and RoHS
• Intel PCB Mil spec (IPC Class 1, 2, 3).
• 40+ layer multi-layered circuit boards
• Materials for Boards: FR-4, Polyimide, Rogers, Nelco, Megtron
• Spacing and Trace to 2/2 mils
• Blind and Buried vias
• Filled vias Boards with Heavy Copper Via-in-Pad
• Skilled Assembly and Fabrication Services

In addition to the aforementioned, we provide professional manufacturing and assembly services for:

• Prototype circuits
• Board Runs
• Small and Medium
• Quick Turn PCBs
• Burn-In for Boards

Read More: Mastering PCB Design: From Schematic to BOM and Production – A Comprehensive Guide by PCB Runner

Conclusion

Based on actual production procedures, this in-depth manual took readers step-by-step through the whole PCB manufacturing process, from initial schematic design to factory fabrication, assembly, testing, and inspection. Electrical engineers creating boards for mass production will find it useful to have a clear understanding of the process.

Important lessons learned include designing PCBs with manufacturing in mind, producing high-quality design data, interacting with fabrication and assembly partners in an efficient manner, and maintaining strict quality control to guarantee sturdy boards that are prepared for product installation. Electrical engineers may reliably and efficiently turn concepts into actual products by adhering to this special materials PCB production strategy.

PCB Runner offers High-quality special materials PCB manufacturing services for all industries and critical design requirements. Please do submit your schematics & BOM files to our email at sales@pcbrunner.com or engineering@pcbrunner.com

Stacked Vias: What Does It Mean?

Stacked vias are created by stacking numerous vias on top of one another. To ensure an electrical connection, each via would be drilled first, then metalized with a small annular ring at the top and bottom. Because the annular ring is frequently extremely thin—about.002 inches—very precise registration is required. Because stacked vias may be stacked on top of one another and take up less space on a circuit board than through-hole vias, they are more flexible and practical for efficient routing of high-density boards. The efficient use of the stacked vias allows for total flexibility in the layer connection.  Additionally, it reduces its parasitic capacitance, which is frequently connected to vias. More steps are required throughout the PCB manufacturing process when using stacked vias to ensure a strong inter-via connection. Even at slightly higher prices, the increased routing flexibility often makes the difference between being able to route the design well and not being able to, which results in better design solutions. According to our engineering staff, using this layout strategy will become more and possibly even critical as component densities increase and the board’s surface area decreases.

What Advantages Do the Stacked Vias Offer?

Stacked vias are created by stacking numerous vias on top of one another. To ensure an electrical connection, each via is first drilled and then metalized while keeping a small annular ring at the top and bottom. Since the annular ring is frequently quite narrow—as thin as .002′′—very precise registration is required.

Less space

Additionally, since one via may be piled on top of the other, stacked vias take up less space on a circuit board than through-hole vias, increasing the possibility that the high-density board will become more flexible and useful.

Flexibility in layers of connectivity

The efficient use of the stacked vias allows for complete flexibility in layer connectivity. Additionally, it reduces its parasitic capacitance, which is frequently connected to vias. Further steps are required during the fabrication of PCBs with stacked vias in order to ensure a strong inter-via connection.

However, even at somewhat higher costs, greater routing flexibility often makes the difference between being able to route the design successfully and failing to do so, leading to better design solutions.

Improve density and size concerns

With today’s shrinking, high-signal transmission performance, and scalability in many applications, stacked vias are a way to further improve density and size concerns when creating printed circuit boards (PCBs), two very important factors.

When drilling requirements span multiple layers and blind vias have aspect ratios greater than 1:1, stacked vias may be the most reliable internal connection solution.

Better routing capabilities, lower parasitic capacitance

Also referred to as laminated buried and blind vias and stacked vias, many vias are formed together around a single center. Staggered vias are laminated vias that have distinct centers. Stackable vias not only increase density and save space, but they also provide better routing capabilities, lower parasitic capacitance, and greater flexibility for interior connections.

Challenges in manufacturing stacked via PCBs

The following issues should be taken seriously, even though it is challenging to identify the precise requirements that may result in failure:

Aspect Ratio

Reliability increases with smaller aspect ratios. Microvias (stacked vias) with an aspect ratio of 0.7, for example, have been shown to withstand accelerated life tests but microvias with an aspect ratio of 1 fail after a few thermal cycles.

Voiding

While voiding is associated with failure, its volume and form, as well as the stacked vias aspect ratio, have a more significant role. Consequently, it is not possible to say with certainty that voids always result in a higher failure rate.

Stacking versus scattering

 The criteria used to compare the dependability of staggered versus stacked microvias are inconsistent. Generally speaking, designers try to stagger the other micro vias in the vertical interconnect by stacking no more than two microvias vertically.

Plates made of copper

The thickness of the plating at the butt joint causes failure, even when the copper wrap coating does not.

Arguments in Favor of Hiring an Expert in PCB Stacked via Design

Four Arguments in Favor of Hiring an Expert in PCB Stacked via Design and Layout Services

Numerous PCB manufacturing and assembly companies focus exclusively on particular tasks or provide third-party services to large PCB manufacturers. Nonetheless, the methodology of a seasoned provider of PCB design for stacked and layout services sets them apart. The following guidelines will assist you in realizing the advantages of collaborating with them.

1. Technical Competency:

A lot of PCB design concepts are unsuccessful and never result in functional prototypes. The manufacturer’s and product designer’s lack of sight is one of the main causes. You can get advice on concept generation, schematics, and prototype construction from a skilled PCB designer. Working with them will enable you to create layouts that fit your company’s needs.

2. Rectify Design Flaws:

Many design errors are introduced at the conceptualization stage, and if they are not fixed, they may result in operational inefficiencies at a later stage. Skilled PCB designers are frequently able to spot these defects and offer fixes to lessen the problems. Additionally, at various iteration stages, design defects may be introduced. The designers may be quick to spot these and provide you with an ideal solution.

3. Reduce Time, Efforts, and Costs:

 There are a number of components or considerations that go into PCB design and layout, which could drive up expenses. By examining your design plans, the PCB design experts can frequently quickly determine the elements that may contribute to your expenditures.  To increase efficiency, they could even advise you to simplify the designs or recommend replacing some parts. They might even assess what needs to be improved by comparing your schematics with the current boards.

4. Enhanced Time-to-Market Competencies:

 In order to effectively meet the needs of their customers, the majority of firms today strive to increase their time-to-market capabilities. You may reduce the likelihood of product failure by building efficient, functioning prototypes more quickly with the assistance of a specialized PCB design and layout service. Therefore, you can be confident of the meticulous planning and efficient designing and manufacturing that follow if you collaborate with an expert PCB designer. You’ll notice a noticeable improvement in the speed of your production and prototyping.

Why Should You Hire a PCB Runner to Design Your Circuit Board?

 PCB Runner is a proponent of doing things correctly the first time. Therefore, before we send your product, we ensure that there are no mistakes or omissions. Our customers benefit from this by saving money, time, and the hassle of constant adjustments and corrections.

 A fully personalized PCB design and layout service is provided by PCB Runner. Additionally, we provide PCB assembly and prototyping services, enabling us to validate the design before committing to mass production.

 Our Principal Area of Specialization and services related to stacked via pcb manufacturing

Our speciality is offering:

• Superior surface mount design for µBGA, BGA, PCIE, PCI, CPCI, and further applications
• Three designs: rigid, flex, and rigid-flex
• Controlling differential impedance
• High-velocity signal arrangement
• Ultra-low EMC/EMI design for magnetic resonance imaging
• Design of sensitive analogue circuit boards
• High-frequency layout and design of PCBs
• High voltage and high current architecture
• Plan for Construction
• Create with Manufacturing in Mind
• Expert paperwork for the fabrication
• Create with Testability in Mind
• PCB manufacture and assembly, as well as prototype
• Examining circuit boards
• Producing In-Circuit Testing Data

Manufacturing  Stacked Vias

Compared to staggered vias, stacked vias require additional steps in the production process. As a result, it is more difficult. This is where several vias are stacked on top of each other. They connect multiple layers with low space usage. Each via is drilled and then plated prior to being stacked on top of one another. There are two narrow, annular rings available on the top and bottom.

The upper one indicates precise registration, while the lower one is used for electrical connections. The design consists of three separate acts:

• Filling copper holes
• Planarization
• Further imaging
• Copper filling with stacked vias

Every stacking via is filled with electroplated copper. It provides structural stability and ensures a dependable electrical connection. There may occasionally be flaws in the copper that has been deposited. The following difficulties are explained:

When copper is deposited incorrectly, vias might turn into voids. Such cavities inside the framework lead to localized stresses. As a result, the same reliability of stacked microvias can be compromised.

Poorer bonding occurs between the target pad beneath the microvia and its base when electroless low-grade copper is used.

Advanced techniques and materials used for stacked via fabrication

Copper filling

Electroplated copper is filled in stacked vias. This gives strong structural support along with providing solid electrical connections in pcb. Sometimes situation occurs when defects have been seen in electroplated copper for example :

1. Inappropriate filling creates gaps in vias. This can result in the generation of localized stress in the structure of PCB. This can also affect the reliability of stacked microvias.
2. Poor-graded copper has no proper electrolytic properties resulting in inferior bonding of the base of microvia with the target pad.

Microvia Filling Procedure

 The micro via that is stacked needs to be filled and either buried or have a copper cover placed on it. The fact that the HDI PCB Manufacturer creates an electrical channel that incorporates the copper cap in the structure that the micro via is layered onto is one of the issues with stacked via. Accordingly, until the PCB manufacturer stacks another structure on top of the copper cap, it is not a component of the circuit.

Microvias and buried vias in stacked structures need to have a fill layer in addition to their caps in order for the copper cap to develop.

To ensure good electrical contact with the plated copper wrap and to reduce the copper thickness, they typically include a planarization step. Currently, three fill types are used in the production of HDI PCBs. One possible fill material is electrolytic copper plating, often known as “a-stage” fill material or the dielectric system’s liquid. or an epoxy fill by a third party. The barrel crack failures are prevented by the solid copper of the entire micro via (or, in rare cases, the hidden one) and the good electrolytic copper plating. Because the “a-stage” fill precisely matches the underlying dielectric material’s glass transition temperature (Tg) and coefficient of thermal expansion (CTE), it is considered to be good.

The third-party fill does not have the same Tg and CTE as the base material, regardless of whether it is conductive or not. Every fill kind has benefits and drawbacks of its own.

Planarization Method

During the HDI PCB fabrication process called planarization, the fill and some of the wrap-related copper are removed from the microvia’s knee or buried via to thin the copper layer between layers and create a strong bond between the copper wrap and the electroplated cap. An open circuit could result from a conductivity issue between the wrap and the cap if the planarization is not aggressive enough. An excessively aggressive planarization can result in an excessively thin wrap, which can cause damage from knee cracks.  The fact that the third-party fillers typically have a different Tg and CTE than the epoxy of the base dielectric layers is an issue. These variations may cause issues when these are utilized to fill buried vias or microvias.

Standards for Manufacturing and Quality Control

When choosing a High-Density Interconnect (HDI) stacked vias PCB provider, quality control and adherence to production standards are essential factors to consider. Let’s examine why taking these factors into account is essential to guaranteeing the dependability and functionality of your electronic devices.

 Consistency in Quality:

 Throughout the manufacturing process, a trustworthy stacked via based PCB supplier upholds strict quality control procedures. By delivering PCBs that meet or surpass your standards, this consistency in quality lowers the possibility of errors and guarantees dependability in your final products.

 Standards and Certifications:

 Seek vendors with certifications such as ISO 9001, a widely accepted standard for quality control systems. These accreditations show a dedication to excellence and a follow-through with accepted industry norms.

 Extensive Testing:

 Find out how the provider conducts testing. Before the PCBs are supplied to you, a trustworthy supplier should perform a battery of tests, such as electrical, impedance control, and reliability testing, to find and fix any problems.

 Material Traceability:

Materials must be traceable, particularly in sectors where regulations are stringent. For compliance and troubleshooting purposes, knowing the origin and history of the materials used in your PCBs can be quite important.

Failure Analysis:

 A reliable system for failure analysis has to be in place at a provider that prioritizes quality. If there are any flaws or problems, they ought to be able to find the source right away and put preventative measures in place to stop it from happening again.

Continuous improvement culture

 Selecting a supplier who upholds a continuous improvement culture is important.

These vendors guarantee that your PCBs take advantage of the newest breakthroughs in the market by continuously improving their processes and keeping up with industry developments.

 Paperwork for Quality Control:

 Verify that the supplier includes thorough paperwork for quality control with every shipment. These records, which provide transparency and assurance about the caliber of your PCBs, ought to include a detailed account of the testing and inspection outcomes.

 Integration of Customer Feedback:

 Reputable vendors actively seek out and consider input from their clients. They are able to meet particular project requirements and consistently improve the quality of their services because of their customer-centric approach.

Industries and products that benefit from multilayer  stacked via technology

In fact, because of their benefits, multilayer PCBs are ideal for a wide range of sectors and uses. Below are a few particular applications for multilayer printed circuit boards:

1. Consumer Electronics:

 A wide range of consumer electronics, including tablets, smartwatches, smartphones, and other portable gadgets, use multilayer printed circuit boards (PCBs) having stacked vias. The development of advanced features and multitasking capabilities in these devices is made possible by the high functionality and compact size of multilayer PCBs.

2. Telecommunication Equipment:

Because of their strength and resilience to harsh weather, multilayer printed circuit boards (PCBs)having stacked vias are the standard in the telecom sector. They are found in routers, base stations, mobile devices, and other telecom hardware.

3. Industrial Equipment:

 Industrial controls and machinery are a good fit for multilayer printed circuit boards. They are appropriate for severe industrial settings where equipment may be subjected to rough handling or extreme circumstances because of their longevity and dependability.

4. Medical Equipment:

 Multilayer printed circuit boards (PCBs) stacked via technology are essential components of medical equipment, such as imaging, monitoring, and therapy devices as well as diagnostic tools. Advanced medical technology development is aided by the mobility and functionality that multilayer printed circuit boards (PCBs) offer.

5. Military & Defense Equipment:

Compact designs and high-speed circuits are essential for the equipment used by the military sector. Our Stacked via PCB are perfect for military and defence applications because they allow for the integration of various functionalities while retaining mobility and reliability.

6. Automobile sector:

 Onboard computers, engine control units, sensors, and other electronic components are among the many applications for Stacked via PCB  in the car sector. Their tiny form size, superior performance, and resilience to heat make them ideal for the demanding needs of automotive applications.

 7. Aerospace sector:

 High-performance, lightweight, and small electronics are required for the aerospace sector. In the aerospace industry, multilayer printed circuit boards are used in satellite technology, navigation equipment, communication systems, and cockpit computers.

 8. Computer electronics:

 High-performance computing systems, servers, laptops, and desktop computers all make heavy use of Stacked via PCB. They offer the dependability, performance, and compactness needed for computer motherboards and other parts.

Read More: Solving Common Issues in Edge Plating PCBs Tips and Tricks

Pcb Runner Quality Control Commitment

 Strict Quality Control

At PCB Runner, we recognize the value that PCB functionality and quality have for our clients. For this reason, we incorporate quality-oriented concepts throughout every stage of the assembly and production of PCBs. We are still dedicated to conducting all PCB-related activity in accordance with recognized worldwide quality standards.

We ensure that every one of our assembled and bare PCBs meets or surpasses the exact specifications provided by our customers. Our reputation for excellent quality, timely delivery, and competitive pricing is attested to by our clientele.

Our products are guaranteed to be of the highest quality and dependability thanks to our strict manufacturing procedures. International standards like ISO9001 are met by us, and we are eligible for IPC Classes 2, 3, and 3A.

 Why Opt for PCB Runner?

 There are various benefits to selecting PCB Runner as your printed circuit board maker. We provide quick turnaround times on all kinds of high-quality PCB services. We put every PCB through quality and reliability testing.

Kindly visit our website to acquire an estimate for any bespoke circuit board you may need.

Certifications and Registrations for PCB Runners

ACCREDITATIONS

We withhold a number of PCB certifications as a symbol of our dedication to the quality management system, demonstrating our steadfast commitment to upholding standards of quality.

Use the icons below to browse through our official certifications.

The 2015 ISO 9001 standard

ISO 14001:2015

ISO 13485:2016

Our engineers are all certified IPC A-610 personnel. Please get in touch with us if you would like more information.

The PCB Runner Advantage

For the production and assembly of fully functional printed circuit boards, PCB Runner is the recommended option. The diversity and adaptability of the solutions we provide are preferred by our clients. We provide every kind of printed circuit board you need, ranging from single-layer to multi-layer, rigid boards, rigid-flex boards, and HDI boards. No matter the quantity of your purchase, we can handle boards of any form or size that you require.

The fact that PCB Runner has specialists for every step of PCB assembly and manufacturing is by far our greatest asset. We provide PCB fabrication and assembly services that are full turnkey, partial turnkey, and full feature. To put it briefly, we provide a comprehensive end-to-end solution for your projects. From design and manufacturing to assembly, testing, packing, and shipping, our professionals will be at your side every step of the way.

You will quickly see the benefits of working with PCB Runner for your PCB fabrication and assembly since they are a one-stop shop, saving you the trouble of contacting multiple businesses to finish your project.

Our Proficiency

• PCB Panels
• Layer Stack up, Blind, and Buried Via’s
• Lead-Free
• Soldering Through Laser
• Micro Via
• Via in Pad

Full-featured PCB Manufacturing and Assembly Capabilities are offered by  PCB Runner

• Stiff PCBs
• Flexible PCBs
• PCBs that are rigid-flexible
• PCBs using High-Density Interconnect (HDI)
• PCBs with many layers

Base Materials for PCBs

What we can offer you is:

• PCBs at High Temperatures
• PCBs that comply with RoHS regulations
• PCBs with High-Frequency RF
• Fast Digital PCBs
• Prototype PCB Assembly, PCB Services, and PCB Assembly
• Sources for Components: Low Volume, High Volume, Partial Turnkey, and Full Turnkey PCB Assembly

 PCB Runner offers custom design manufacturing for all industries along with critical stacked Via’s / Elic design requirements. Please do submit your schematics & BOM files to our email at sales@pcbrunner.com or engineering@pcbrunner.com

The metallization of a circuit board’s edges is known as side plating, sometimes known as edge plating or Castellation, in the PCB industry. Stated differently, side plating is the copper plating that extends along one or more of the board’s peripheral edges and from the top to the bottom surface. Any surface treatment that offers electrical connectivity can be used for side plating, including HASL, ENEPIG, and ENIG. The printed circuit board’s edge is utilized for the technical aspects of the subsequent assembly when side plating is applied. The PCB’s interior spaces and some of its exterior can be metalized.

In order to ease electrical connections, exposed copper connections around the borders of a printed circuit board (PCB) are plated with a metallic coating, such as tin or gold. A thorough explanation of PCB edge plating is given in this article, along with information on edge connector types, plating procedures, inspection, reliability considerations, and upcoming trends.

PCB Edge Plating Advantages:

1. Improved Current Conduction:

A higher current carrying capacity enhances the quality and dependability of the board. In addition, the right amount of conduction safeguards delicate edge connections while enabling components to function as needed.

2. Integrity of Signal:

By reducing interference from entering the internal electrical pulse transmission, edge plating improves signal integrity.

3. Dispersion of Heat:

The metallic nature of the plated edges provides an extra cooling surface area that is utilized to release heat into the surrounding air. The metallic surface increases the board’s dependability, particularly when parts are heat-sensitive.

4. Improved Performance of EMC/EMI:

Sterilized edges stop random electric and magnetic fields by letting stray currents pass through.

5. Enhance Compatibility with Electromagnetic Fields:

Enhancement of electromagnetic compatibility through edge plating

6. Avoid Injury from Electrostatic Fields:

Static electricity can damage delicate components while handling circuit boards, however, metal surfaces can help absorb static electricity.

Challenges in Edge Plating PCBs

As previously discussed, accurate handling of the PCB circuit boards is crucial for PCB edge plating. A small error can lead to a number of issues, including burr formation and the copper peeling phenomenon. And then there is a significant risk from the two circumstances. Let’s now examine various PCB edge plating constraints, which are signed prior to the fabrication process, in addition to the specific understanding of the application range of PCBs.

Copper Peeling:

Insufficient adhesive strength of the plating on the large substrate surface is the cause of the copper peeling. The difficult challenge can be overcome by employing chemical and proprietary methods to roughen the surface.

Burrs:

During the final machining step of PCB edge plating, specifically the milling process, burrs are frequently generated, especially on castellation holes. To smooth out the edges of the feature, we use the particular and adapted process flow for this task.

There must be some spaces where route tabs are placed. The manufacturer is unable to plate the entire edge because the circuit boards inside the production panel of the PCB prototype must be fixed. Before beginning the through-hole plating process, the outlines that need edge plating must be routed in order to fabricate boards with edge plating. V-cut notches on circuit boards that need edge plating are thus ruled out.

The edge plating technique necessitates meticulousness in order to overcome plating laying problems. To perform an edge plating procedure correctly, you need specific tools and a reasonable level of experience. A PCB edge needs to be handled carefully and prepared before plating in order for the plating to adhere to it. For the duration that the board is in use, the plating must stay fixed to the edge. In addition, care must be taken during the edge plating soldering process to prevent harm to the interlayer through-hole connections. The procedure to stop burrs from forming is given the highest priority. A board can fail catastrophically due to burrs.

PCB Runner’s PCB Manufacturing and Prototype Services

The most reputable and trustworthy option for full-feature printed circuit board creation is Pcb Runner at PCB Manufacturer in the UK since we provide a range of board sorts and have an incredibly flexible approach to problem-solving.

UK and Europe’s (Luxembourg’s) Complete Feature Circuit Board Manufacturing Capabilities

• Fast Turnaround
• Prototype
• Widespread Manufacturing
• Special Services at No Cost
• Audits for DFM and DFA
• Penalization
• Electrical Examination
• Creating Stencils
• Personalized Layer Stack-up
• Consultation to lower the cost of board production.
• Streamlined Circuit Assembly

Typically, the edge plating of PCBs entails:

• Making holes to receive edge contacts
• Electroless and then electrolytic plating of copper
• Etching to create distinct traces
• Surface preparation techniques such as micro etching
• Immersion plating of metal, such as gold
• Sanitizing and then drying the boards
• Examining the quality: thickness, continuity, and flaws
• If necessary, electrical testing

Standard PCB techniques plus final plating are typically used during fabrication.

Ref: Altium edge plating

Quality Control for Edge Plating

Essential process controls required:

Plating Thickness:

Use X-ray fluorescence or microscopy to verify that the minimum thickness is met. Poor plating raises the possibility of corrosion or wear.

Continuity:

Use plated edge contacts to confirm electrical connectivity from the inner layers.

Plating Coverage:

Look for spaces or thin spots near traces.

Over Plating:

Take care that the glass weaving does not receive an excessive amount of plating can prevent reproduction.

Trace Geometry:

Verify that dimensions match specifications by using trace geometry.

Applications of Edge Plating PCBs

PCB Edge-Plating in the Communications Industry

With satellite communication, internet access, and mobile communication all included, the communication industry is one of the fastest growing in the world. The transmission of signals must be stable and fast in these domains. By encasing signal layers in gold plating, Edge Plating PCB reduces the possibility of signal loss and interference and provides exceptional signal transmission performance. This feature makes sure that communication devices continue to function exceptionally well in a variety of environmental settings, ensuring consistent connectivity and high-quality conversation.

Medical Device Applications

Precision and dependability are critical in the medical industry. Medical gadgets, such as monitoring devices, implantable medical devices, and medical imaging equipment, frequently use edge plating printed circuit boards. The necessity for these devices to function in damp, hot, or humid conditions highlights the importance of PCB durability. In addition to offering exceptional connectivity, Edge Plating PCB can survive severe environmental conditions, guaranteeing the precision and long-term dependability of medical equipment.

Automation and Control in Industry

Devices used in industrial control and automation must be able to function reliably in situations with high temperatures, high voltages, and significant electromagnetic interference. The Edge Plating PCB’s design makes it resistant to damage and corrosion in these harsh environments. It also offers greater current capacities, which makes it extremely beneficial for industrial power transmission. With less maintenance and downtime, this PCB technology helps to increase the efficiency and dependability of industrial automation systems.

Quality and Compliance

With certifications in both ISO 9001:2015 and ISO/TS 16949:2009, PCB Runner, a PCB manufacturer located in the Netherlands, provides fabrication and assembly services. Regardless of whether the circuit board is a prototype or is being produced in large quantities, our straightforward objective is to provide our clients with guidance and support about their board needs and to manufacture them promptly, with superior quality, and with first-rate customer care.

We supply boards all around Europe, the UK, and the rest of the world from our base in the Netherlands. In addition to providing complete PCB design and manufacturing services, we also offer product construction, test, SMT and PTH assembly, and cable assemblies.

A one-stop shop for circuit board

With a focus on client satisfaction, PCB Runner, PCB assembly Netherlands, provides contract manufacturing for electronic assemblies. Our main offering to clients is a one-stop shop for circuit board, circuit assembly, box and system builds, and all associated engineering services, from concept to production.

Electronic contract manufacturing

From design through mass production, PCB Runner offers our clients full electronic contract manufacturing services. Our goal is to be the most productive and successful supplier of all services related to electronic manufacturing. Customers are pleased that a single provider, totally dedicated to quality and customer satisfaction, can manage all of their assembly-related demands.

Why Choose PCB Runner for Edge Plating PCBs

The Netherlands-based PCB maker is aware that every client and their needs are unique and distinct. Customers need to be able to trust their source to fulfil their needs, in our opinion. Our speciality is assisting clients in launching their goods into the market as quickly as feasible.

One of the rare businesses that actually manufactures boards in-house is PCB Runner. We manufacture every kind of board, including:

• Aluminum-based metal PCBs
• PCBs using Rigid-Flex (FR-4 and Polyimide)
• Board flex (polyimide)
• Through-holes, SMT, BGA, and other HDI boards
• Lead-Free Boards that Comply with WEEE and RoHS
• Intel PCB Mil spec (IPC Class 1, 2, 3).
• 40+ layer multi-layered circuit boards
• Materials for Boards: FR-4, Polyimide, Rogers, and Others
• Spacing and Trace to 3 mils
• Blind and Buried vias
• Filled vias Boards with Heavy Copper Via-in-Pad
• Skilled Assembly and Fabrication Services

In addition to the aforementioned, we provide professional manufacturing and assembly services for:

• Prototype circuits
• Board Runs
• Small and Medium
• Quick Turn PCBs
• Burn-In for Boards

Read More: Solving Common Issues in Edge Plating PCBs Tips and Tricks

Conclusion

In conclusion, a variety of industries use PCB edge plating and connections as a flexible and affordable interconnection solution for interchangeable subsystems, cards, and modules. Edge connectors will continue to be able to fulfil the demands of thinner boards, faster signalling, denser contacts, and enhanced reliability because of continuous improvements in board materials, plating technology, and precision production processes. Although there are other options, such as board-to-board connectors, edge connectors’ ease of use and simplicity guarantee their continued use whenever field replaceability of circuits is needed long into the future.

PCB Runner offers custom design edge plated technology manufacturing layout services for all industries and critical design requirements. Please submit your schematics & BOM files to our email at sales@pcbrunner.com or engineering@pcbrunner.com

Harnessing the Power of Effective PCB Routing: Strategies, Best Practices, and Future Trends

In the realm of printed circuit boards, a rigid circuit board is the most common type of board. They are still widely employed in many everyday consumer products and are still quite popular today.  Because of its unyielding construction, rigid PCBs are a type of circuit board that cannot be bent or curved. They consist of multiple layers, adhered to one another by heat and glue, including a substrate layer, a copper layer, a solder mask layer, and a silkscreen layer.  While certain circuit boards are exclusively single-, double-, or multilayered, rigid PCBs can be any of these depending on the specifications. But once they are made, there is no turning back on them.

Construction of Rigid PCBs

Typically, rigid PCBs are made up of several layers, each of which consists of a solder mask, conductive copper layer, and substrate material. The substrate material, which is typically fiberglass, offers insulation and stiffness. Circuit traces are created by etching the conductive copper layer, which links different components. The solder mask layer aids in soldering components onto the board and shields the copper traces from oxidation.

The Importance of Effective Rigid PCB Routing

In the field of electronics, the functionality and dependability of devices are directly impacted by the quality of PCB routing. Several implications of efficient PCB routing methods are as follows:

Improving Circuit Performance and Stability:
The performance and stability of electronic circuits are greatly influenced by the efficient routing of printed circuit boards. Signals can go between components as effectively as possible with well-designed routing, reducing delays and distortions. This in turn enhances the circuit’s general speed and responsiveness.
PCB layout and signal integrity are intimately related. Signal integrity is the foundation of dependable electronics. Accurate information delivery and the preservation of electrical signal quality are made possible by properly routed traces, which also serve to prevent distortions.

This is particularly important for high-speed circuits because even minute delays or variations can cause problems.
Preventing Crosstalk and Interference: Crosstalk and electromagnetic interference (EMI) are reduced via efficient routing. Unwanted signal coupling is minimized by making sure that traces are properly spaced and routed away from sensitive components. This protects the quality of the transmission and avoids unintentional interactions that can  compromise functionality.

Maintaining Reliability:
Well-designed electronics are characterized by their reliability. Inadequate power distribution, noise, and signal reflections from poor routing techniques can cause unstable behavior or even failure. A PCB that has been painstakingly routed guarantees that components receive consistent power, which lowers the possibility of erratic performance or early component wear.

Implications of Inadequate Routing

Signal Distortion and Delay:
Signal distortion and delays can be caused by poor routing. Signals may have timing problems and changed waveforms due to impedance mismatches, reflections, or long transmission distances. This may result in a breakdown in component communication and impair the functionality of the circuit as a whole.

Noise and Interference:
Inadequate routing leaves traces vulnerable to outside noise or interference from nearby components. This interference has the potential to cause data transmission problems by adding noise to signals and lowering their quality.

Decreased Reliability:
Device reliability is decreased when circuits with inadequate routing are more likely to malfunction. Unexpected voltage drops, problems with heat dissipation, or weakened connections can cause malfunctions or early device failure in parts.

While ineffective routing can lead to several problems that jeopardize the circuit’s functioning and long-term dependability, effective routing guarantees optimal performance, signal integrity, and stability. To ensure that the electronics they design and engineer meet the highest reliability standards while maintaining optimal performance, they must become proficient in PCB routing.

Rigid PCB Routing best practices

Correct routing of your board is one of the most important parts of the printed circuit board (PCB) design and layout process. Adopting appropriate PCB routing best practices will help you cut down on problems later on in the production process and save time.  It might be difficult for novices to navigate the procedure because there are so many different routing tools and approaches available. When you begin routing your PCB, bear the following points in mind.

AVOID DEPENDING ON YOUR AUTOROUTE

An autoroute tool is likely something you’ve encountered if you’ve ever used PCB design software. When using this tool for PCB layout, it could initially appear like a time-saving and practical option. But you should never depend just on this instrument. While this program is useful for novices learning how to route a PCB, routing the board yourself will yield the best results.  Furthermore, auto-routing doesn’t always yield precise results. Using the tool frequently leads to common symmetry errors, which might cause quality concerns and additional routing challenges on your end. It is recommended to use this tool in conjunction with manual routing rather than as a stand-alone fix.

GO ABOVE A SOLID GROUND PLANE WITH HIGH-SPEED SIGNALS

It is imperative to route via a stable ground plane when working with high-speed signals. By doing this, you can make sure that the trace connection holds strong and that, after the PCB is completed, no other issues arise.

Another way to lessen the likelihood of impedance—which is likely to happen with two separate ground planes—is to route PCBs over a solid plane. Connecting trace components to the appropriate locations on the board is essentially made easier by adhering to this best practice.

SET UP VIAS IN A GRID TO PREVENT HOT SPOTTING

PCB routing relies heavily on the via positioning. Hot spots are areas with significantly higher current densities due to improper route placement. Severe issues may arise from an increase in heat in a particular area of the board.

Placing the vias into a grid to spread them out across the board’s area is the easiest strategy to avoid these hot spots. You should give the vias at least 15 millimeters of distance apart for optimal results.

 USE A TRACE BEND OF 135 DEGREES

When routing your printed circuit boards, try to stay away from using a 90-degree trace bend. The trace width produced by this angle is less than the advised minimum. Although this might not seem like a big deal, it might cause several issues with the PCB’s final layout. Additionally, a 90-degree trace bend’s small outside edge acts as a heat trap that might result in shorts. Route tracing bends at 135 degrees is the optimal angle. This broader perspective will guarantee that your board is laid out correctly and prevent short problems.  To prevent crosstalk, increase the distance between the tracks. The distance between traces is another important consideration. A signal accumulation between two traces in a single location of the board is prevented by proper spacing. Crosstalk is the term for the increase in activity brought on by incorrect trace spacing. When there is crosstalk, one trace signal drowns out the other. Because of this, after PCB routing is complete, there is a possibility of circuit shorts.  To prevent this kind of problem, it’s best to include the proper amount of gap between traces while routing your PCB.

 AVOID HOT SPOTS BY USING DAISY CHAIN ROUTING

Daisy chaining is another method of avoiding hot spots in PCB routing. One method of routing that connects many locations on the circuit board is called daisy chaining. Long stub traces, which frequently result in issues with the signal being transferred, are avoided with the aid of this kind of PCB routing.

Daisy chaining is a useful routing technique to employ when attempting to prevent hot spot problems since it guarantees adequate space for the signal to pass through.

 AVOID RUNNING SIGNALS OVER SPLIT PLANES

The return signal path between traces must be considered while routing over two distinct reference planes. Verify that the signal can travel the return path successfully. Crosstalk can also be more likely when routing across a split plane, which can result in additional trace signal problems.

 ELIMINATE NOISE BY DIVIDING DIGITAL AND ANALOG GROUND PLANES

The analog and digital ground planes should be kept apart to facilitate the identification of which components need to be connected to which plane. Stated differently, keeping these two portions apart guarantees that the corresponding digital and analog components are connected correctly. Isolating the two signals, preventing interference, and lowering noise are the main goals of separating these two parts.

 PARTITION THE LAYOUTS VIRTUALLY INTO DIGITAL AND ANALOGOUS GROUNDS

Routing a PCB by virtually dividing its digital and analog components is another useful best practice. There is a virtual line that divides the planes instead of a physical one. This offers a simple method for seeing the links between each of the corresponding planes. This virtual line must be taken into account when routing the PCB to distinguish between the digital and analog traces. Maintaining the distinct signals of the PCB on the right side of the board may be facilitated by essentially dividing the two grounds.

 USE THE APPROPRIATE TRACE WIDTH TO AVOID BROKEN CONNECTIONS

When routing your PCB, knowing the appropriate trace width will help you avoid wasting a lot of time and effort trying to fix issues. Excessive heat buildup throughout the board may result from the amount of energy flowing through the traces if they are not wide enough. The link that runs between the traces may fail as a result of this temperature rise.
Before PCB routing, accurately determining your trace width can help lower the possibility of overheating and faulty connections.

The PCB Trace Spacing Regulation Standards.

Various industry groups and standards agencies determine the regulations governing PCB trace spacing. These standards make sure that, to avoid signal interference, electrical leakage, and other problems, the distance between traces on a printed circuit board (PCB) satisfies specific specifications. The following significant factors determine how far apart traces are spaced on a printed circuit board (PCB):

Rules for Trace Spacing Design

The following design guidelines are commonly applied when determining PCB trace spacing:

Considering Voltage

Greater distances between higher voltage traces are necessary to avoid arcing. Standard design guidelines:

Considering Impedance

A wider distance increases impedance by lowering capacitive coupling. As an illustration:

Predicted on the Prevention of Crosstalk

Noise coupling is reduced by greater distances between high-speed digital or analog traces:

Manufacturability-based
Respect tolerances and capacities of the fabrication process:

Margin of Safety

Margin addition shields shorts from process unpredictability:

10–20% additional margin space

Greater leeway in prototype compared to production  Reliable trace isolation is ensured through the careful use of suitable design criteria.

Rules for Trace Width Design

Trace width selection is guided by similar considerations:

Higher current handling is possible with thinner traces based on current:

Based on thermal rise restrictions, additional widening might be required.

Considering Impedance
Greater impedance results from narrower traces:

Manufacturability-based
Compare the trace width to the manufacturing capacity:

PCB Design Guidelines:

Reducing Interference

It is PCBs’ worst enemy. Don’t worry; we’ll provide you with design principles to lessen this threat. Adopt these strategies to produce high-performing, crosstalk-free devices.

Boost the distance between traces.

 More space between traces prevents inductive and capacitive coupling. Give your traces some breathing room, and the chatter will decrease.

Make use of ground planes

Capacitive coupling is decreased by separating signal traces with a ground plane. It also minimizes inductive coupling by giving currents a return path. Your allies are the ground aircraft.  Make use of differential signaling. Send complimentary signals at the same time. Signal integrity is improved via the cancellation of noise and interference.

Apply impedance control.

 Match the impedance of traces to eliminate reflections and distortions. Crucial for high-speed designs, impedance control maintains signal quality.

Shield your traces.

Guard traces, copper planes, and shielding materials protect against interference. Safeguard your traces, and let them thrive.

Optimize trace routing.

Route traces at right angles and stagger them on different layers. Utilize vias for transitions between layers.

Mind the trace length.

Keep trace lengths as short as possible. Less length equals less chance for crosstalk.

Consider trace width.

Wider traces reduce inductive coupling. Experiment with trace widths to find the ideal balance.

Think about Board Edge Clearance

Another factor to consider during panel construction is board edge clearance. It prevents harm by acting as a shield for the copper and board components.

Design for Manufacturability: Optimizing Depanelization

Release in Tabs for Breakouts

There are two methods for depanelizing PCBs: breakout tabs, which create tiny tabs in between the PCB designs. There is a gap on the panel between these tabs. There should be 0.125 inches of space between the copper and the components and the tab.

Clearance  in V-grooves

Cutting the V-grooves, which are pre-scored V-shaped marks positioned beside the board edges, is an additional technique for depanelization. The components in V-grooves should have a 0.05-inch clearance, and the copper should have 0.02 inches of clearance. A delicate art, efficient PCB routing strikes a balance between electrical needs and physical limitations.  Understanding the function of routing and how to get the best outcomes requires knowing this. Routing, or “tracking,” the board involves skill and accuracy, from using an auto-router carefully to making sure high-speed signal routing is applied appropriately.

Employ Auto-Router Moderation

Even though auto-routers can greatly expedite the routing process, it’s not always a good idea to rely just on them. Even though they are automated, auto-routers may not always consider the minute details of certain board designs. It is a tool that should be used in addition to human adjustments, not in instead of them.  When used sparingly in conjunction with human supervision, auto-routers can improve routing efficiency and avert certain problems at the design stage that could later need PCB troubleshooting.

Employ High-Speed Signaling

Higher signal speeds are required by modern electronics, which makes high-speed signal routing essential. This method guarantees the least amount of distortion or interference during signal transmission.  High-speed signal design in electronic circuits requires even trace widths, careful attention to impedance, and sufficient space between traces. By using such meticulous measures, signal integrity problems are avoided during the routing board nets process, and the device operates at peak efficiency.

Expand the Traces You Draw

Making your traces as wide as feasible is one of the fundamental principles of PCB design. In addition to improving performance and lowering the possibility of overheating traces, wider traces can carry higher currents and provide lower resistance.  Additionally, they are less prone to manufacturing problems, which results in fewer errors and disruptions during PCB CNC routing procedures. The fact that larger traces can withstand greater power levels without suffering appreciable energy loss is another important benefit.

Put Daisy Chain Routing Into Practice

Using a technique called Daisy Chain Routing, parts are linked together in a succession, akin to a chain’s links.
When routing buses with several similar components, like RAM chips on a memory module, this technique is quite helpful. The signals are routed through each component in turn rather than going straight from one to the main source or other component. This produces a layout that is more ordered and uncluttered, which is advantageous for boards that have limited space. Particularly in high-speed designs, the signal delay that is added as it moves through each component in the chain must be taken into consideration. The ability to require fewer layers on a network is another benefit of daisy chain routing.

Employ Stack Multilayering

There is a pressing need to reduce size while retaining functionality in the rapidly evolving field of electronics.
This goal is satisfied by the Multilayer Stackup Design method. As the name implies, this method routes more traces in the constrained board area by using many layers of the PCB.  Because interior layers can operate as a shield against external noise sources, this promotes superior electromagnetic interference (EMI) shielding and allows for a more compact design. Separate layers for power, ground, and signals can also greatly enhance the performance of the PCB by lowering crosstalk and enhancing impedance management.

Use the Buried and Blind Vias

In PCB design, vias are crucial because they enable connections between various layers. Conventional through-hole vias pass through the whole board, but they might take up valuable routing space in high-density systems.
Go into Buried and Blind Vias. Blind vias do not go over the whole board; instead, they connect one or more inner layers to an outer layer. Buried vias are entirely contained within the board and connect two or more inner layers.
These tailored vias can significantly reduce potential interference locations and improve signal integrity, all while saving a substantial amount of space. However, using them makes the production process more complicated.

Thus, even if they have obvious benefits, it’s important to balance them against the additional expenses and production difficulties.

Techniques for PCB Thermal Management

You might want to be aware of the best PCB thermal management strategies to avoid excessive heat because it can lower the performance of your PCB. For better heat dissipation, a lot of PCB designers use cooling fans, thermal via arrays, and heat sinks. In their thermal design of PCBs, they might also incorporate heat pipes and thick copper traces.

Consider the following methods for heat dissipation as you strive to optimize your PCB for thermal management:

Warmth Sinks

Metallic vias intended to conduct heat in a PCB are referred to as heat sinks. These metallic vias transport heat from the top layers to the insulating layers, distributing it across the PCB. Heat dissipation is possible because of this technique, which transfers heat to a copper plane. Engineers typically mount heat sinks to parts that produce heat, such as power transistors and switching devices. You should anticipate that these devices will disperse heat across wide areas and transfer heat to the surrounding environment.

Heating Pipes

Heat pipes are a wonderful option for thermal management on a PCB with limited space. Because they aid in passive heat transfer, they are frequently utilized to support tiny electronics. To absorb heat, these pipes include trace amounts of water, acetone, nitrogen, and ammonia. Heat-absorbing fluids condense into vapor, which is then sent through a pipe and into a condenser. The vapor is subsequently condensed by this condenser, returning it to a liquid state.

The heat pipe can then resume the cycle by utilizing the fluid to absorb heat once more once the vapor condenses back into a liquid. Because these pipes have no moving components and can operate quietly and vibration-free, several industries employ them in PCBs. They also don’t need a lot of care and are excellent thermal conductors.

Fans for cooling

Using cooling fans increases PCB thermal resistance in another way. Heat buildup can be avoided by installing a cooling fan to a PCB, which allows hot air to be forced out of the area. Cooling fans help remove heat more thoroughly and quickly, which is why high current power supplies usually utilize them.

Via Arrays for Heat

Using thermal via arrays is one of the primary PCB thermal approaches. These thermal via arrays support the PCB’s appropriate heat conduction. Since proximity allows these devices to dissipate heat more quickly and effectively, they function best when placed close to heat sources. Simple vias and filled and capped vias are the two primary forms of thermal via arrays that are typically seen in PCBs. Since they greatly lower the PCB’s thermal resistance, simple vias are frequently a preferred option.

However, because PCB designers can position filled and capped vias beneath a thermal solder pad, they typically offer better performance. They may draw heat straight from the source thanks to their positioning. However, because PCB designers can position filled and capped vias beneath a thermal solder pad, they typically offer better performance. They may draw heat straight from the source thanks to their positioning. Because of its copper filling, which stops uncontrollably large solder flow and cavities from forming in the via during reflow soldering, a filled and capped via also performs very well at dissipating heat.

Heavy Copper Wires

A PCB’s ability to dissipate heat can be enhanced by thick copper traces because additional copper permits heat to disperse over a greater surface area. Thick copper traces are typically used by businesses for high-power applications. Additionally, thick traces will be used to help cool components with significant thermal dissipation.

Essentials of PCB Routing for the Contemporary Designer:

Differential Pair Routing

When a plane ground offers a return path for the signal to flow, that is known as single-ended routing. Single-ended routing has a few drawbacks, including low signal-to-noise ratio, crosstalk, and electromagnetic interference.  The most exciting aspect of differential pair routing is that interference will exist equally in both signals so that the receiver can cancel out the signal, even though differential routing requires two signals with opposite polarity but the same magnitude to transfer a single data signal from another.

You must pay attention to trace width, spacing, and other performance factors to guarantee the best possible performance from differential pair routing.

Routing  Complex  ICs

You must comprehend the fundamental configuration to comprehend the setup and regulations of routing sophisticated ICs. To accomplish the desired downsizing, compact routing is squeezed into numerous layers to create reduced trace widths for sophisticated integrated circuits. Complex integrated circuit routing is a high-speed constraint that needs a predetermined schematic. In this case, you must make sure that the entire ground path stays extremely close to the receiver that provides you with the least amount of data.

Making Use of AutoRoute

Using automated PCB routing ensures optimal resource utilization with accurate time management. Tracing routing manually gets very difficult when working on a larger board. You can complete the task faster with the auto router’s assistance. Numerous CAD systems and PCB design tools with auto router features are available; they are rather simple to use and produce excellent results.

If you are persuaded to get an auto-router, you must comprehend and become familiar with the crucial guidelines and limitations that determine net classes based on the trace widths and spacing of each board. A thorough comprehension of the regulations might help one realize the intended design. Running traces across the component placement and routing must be avoided. Before analyzing the configuration,  perform a route cleanup to check the routing of the circuit.

Additional PCB routing approaches and advice

Different PCB routing suggestions apply to analog parts, terminal components, connectors, and other components. Look at these pointers:

• To find out the exact width and spacing needed, speak with the PCB maker.
• To guarantee a steady current flow, you will want power and broader ground connections.
• The ground and power must be kept close to one another to minimize inductance and prevent noise in the circuit.
• Depending on the circuit, different trace widths will be present in the power supplies.
• Large spacing is required when working with high-speed traces to avoid any type of crosstalk.

It can be concluded that having sophisticated routing tools and approaches can greatly enhance designs With the correct guidelines and resources, you can complete even the most challenging designs. Both manual and automatic methods have their merits, but to stay current and produce well-designed PCB designs that meet your needs, you should keep up with the newest technological advancements.

Prospective Developments in PCB Panelization

Miniaturization Difficulties and Solutions

Miniaturization creates new difficulties for PCB panelization as electronic devices get smaller and smaller. To ensure that depanelization techniques can support complex layouts while preserving quality and dependability, designers and manufacturers will need to work closely together. Sophisticated materials and fabrication methods will be crucial in overcoming these obstacles.

Keeping Up Quality and Dependability

Techniques for Testing and Inspecting

Assurance of quality is still the top priority in PCB depanelization. Strict testing and inspection protocols are necessary to find flaws, such as bad components or solder joints, before they become more serious difficulties. Techniques like X-ray testing and automated optical inspection (AOI) are frequently employed to guarantee the integrity of depanelized PCBs.

Reducing the Risks of Panelization

Panelization has several advantages, but it also has certain inherent dangers, like the possibility of uneven solder paste distribution or stress concentration at V-cut lines. Designers and manufacturers need to be very deliberate in their planning and validation to reduce these risks. Minimizing potential problems also involves selecting the right materials and following industry guidelines.

Aspects of Sustainability and the Environment

Cutting Down on Waste in Depanelization One important component of sustainability is less material waste, which is achieved by efficient penalization. Through the optimization of panel layouts and the reduction of inter-PCB space, manufacturers can effectively minimize the quantity of scrap material produced during the manufacturing process. This environmentally friendly strategy fits nicely with the increased focus on sustainable production methods.

Eco-Friendly Practices and Materials

Further improving sustainability can be achieved by depanelization that uses eco-friendly materials and procedures. For example, using lead-free solder complies with standards and lessens its impact on the environment. When creating panelized PCBs, designers can also investigate the usage of recyclable materials and take end-of-life disposal options into account.

Conclusion

To correctly implement a circuit design on a working PCB, well-thought-out routing techniques utilizing both automation and manual tweaking are necessary. Both novice and seasoned designers will benefit from using the techniques in this guide to create routing layouts that are clear, effective, error-free and ready for manufacturing. It is time well spent to pay attention to routing to prevent hassles caused by a board layout that is not ideal. Proper PCB layout guarantees correct signal transfer and improves circuit response as devices get smaller and more sophisticated. It preserves dependability, minimizes interference, and protects signal integrity. Noise, unreliability, and signal distortion can result from poor routing. Thus, it becomes crucial to become proficient in PCB routing. Expertise is needed to navigate obstacles like high-speed signals and intricate architecture. It is essential to maintain controlled impedance, appropriate location, and strict adherence to design limitations. These subtleties are enhanced by multi-layer PCBs, which permit increased component density, enhanced signal isolation, and effective power distribution.

PCB Runner offers custom design layout services for all industries and critical design requirements. Our expert design layout team efforts help the end R&D / product engineers to reduce their time by being back & forth to design PCB based on manufacturing capabilities & running DFM & DFA twice. Please submit your schematics & BOM files to our email at sales@pcbrunner.com or engineering@pcbrunner.com for quick design layout estimations.
