    What Is Castellation PCB?

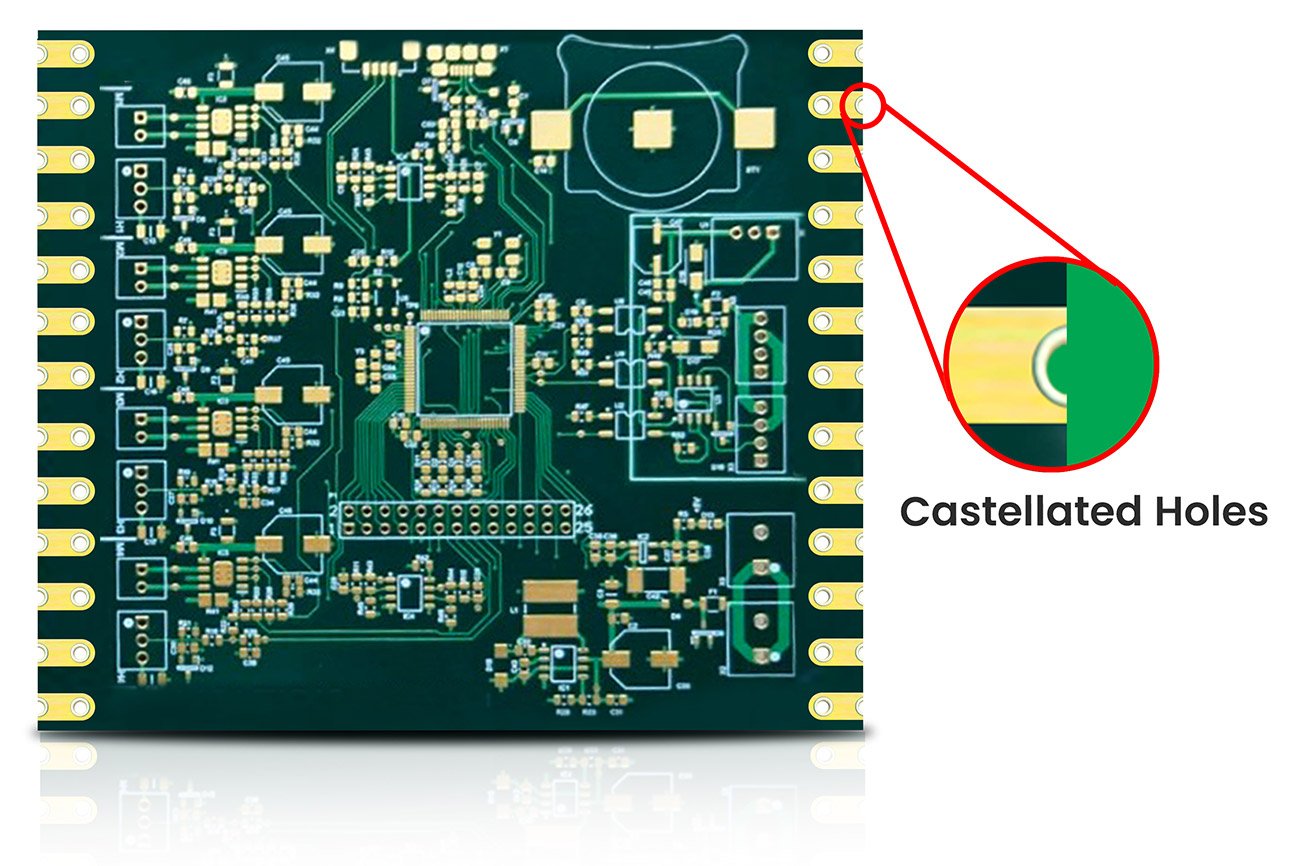

    Castellation or plated semi/half-hole PCBs are a type of PCB that consists of half-cut holes alongside its edges. These edges can be used to connect the PCB to the other parts of the circuit. Half-drilled holes with half apertures on the top and half on the bottom are called castellated holes, and they are copper-plated and situated on a PCB’s periphery. They allow for space-saving directly soldering interconnections across the PCB border to other devices or PCBs.

    Castellation PCBs have become a widely used option for joining and combining electronic parts in a variety of applications, such as wearable technology, gaming consoles, consumer electronics, and smart home systems. They are the perfect answer for a variety of applications because of their small size, simplicity of construction, and enhanced electrical performance. Designers may produce high-quality goods that meet the strict specifications of contemporary electronic gadgets and improve the end-user experience by grasping the complexities of castellation PCBs.

    Types of Castellated Holes:

    Half Holes:

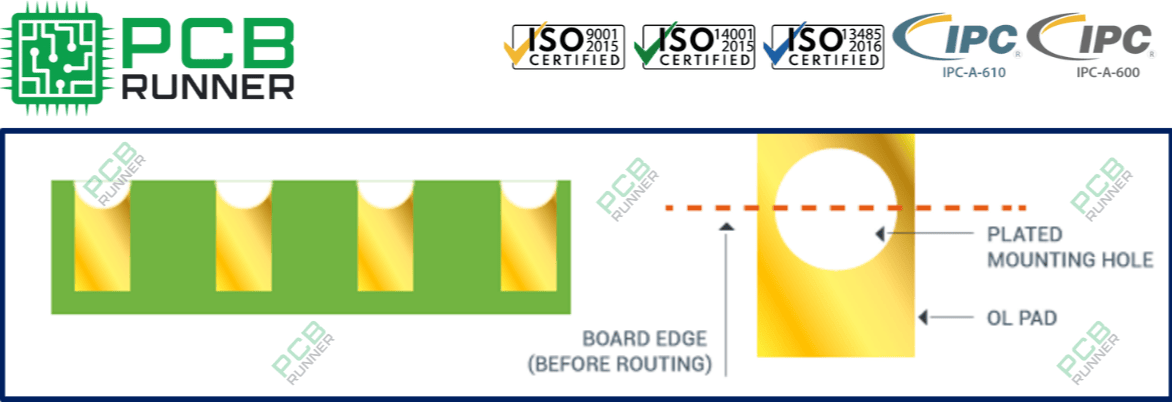

    When the mounting hole is cut in exact half.

    Smaller holes:

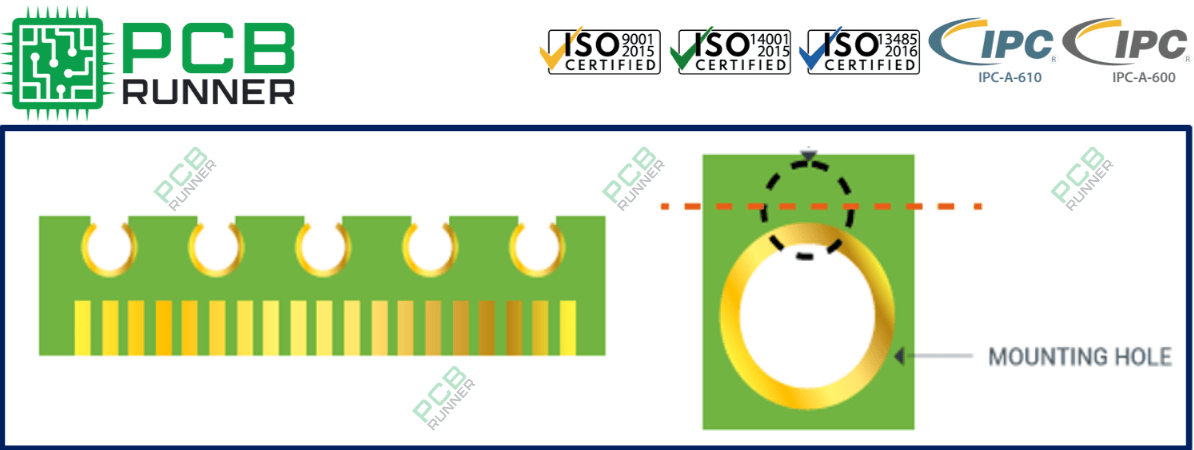

    When smaller holes are cut inside the bigger mounting holes.

    Tangent holes:

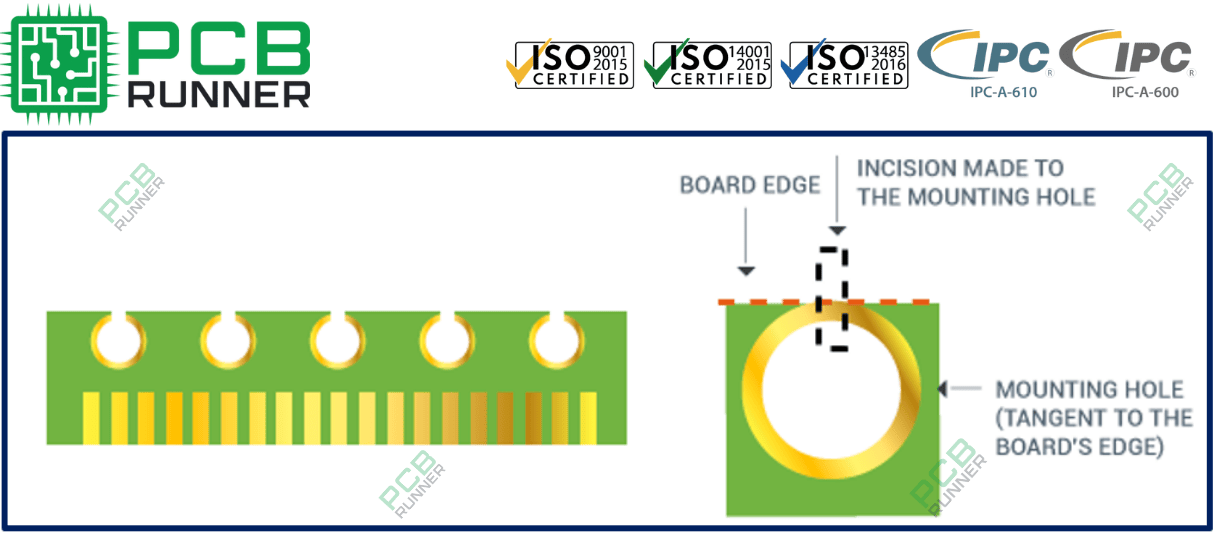

    This hole is tangent to the boards edge and is made by creating a small incision inside the bigger mounting hole.

    Key Characteristics Of Castellation PCB:

    Key characteristics of PCBs’ castellated pores include:

    • Plated holes that are partially drilled on the PCB’s edges.
    • Typically, a diameter falls between 0.3 and 0.75 mm.
    • The typical distance between centers is between 0.8 and 1.27 mm.
    • Allow SMT soldering directly vertically to the PCB edge.
    • Offer sturdy mechanical support when soldered to Mounting boards SMT pads.
    • Allows PCBs to be plugged in or stacked, doing away with connectors.
    • Large BGA and FPGA packages are mounted close to the board edges.
    • A male connector is created from a PCB edge using castellated holes.
    • Requires a precise plating and drilling procedure.

    Applications of Castellation PCBs:

    • Smartphones and Tablets
    • Wearable Devices
    • Bluetooth Devices
    • Smart Home Devices
    • Gaming Consoles
    • Inverter
    • Industrial Automation
    Castellation PCB services has significant impact on various electronic manufacturing industries.

    Advantages of Castellation PCBs:

    ∙ Reliability: Castellation PCB’s sturdy solder joints provide dependable electrical connections even in challenging industrial settings with the potential for vibration, temperature swings, and electromagnetic interference.

    ∙ Compactness: Castellation PCB’s modest size enables simpler designs, which can be especially useful in industrial applications where space is limited, such as automation or conveyor systems.

    ∙ Easy Assembly: Assembly is made easier by the castellated holes, which offer a handy soldering point for joining the PCB to additional boards or components. This cuts down on production costs and assembly time.

     . Better Electrical Performance: By eliminating the need for extra connectors or wires, the castellated holes on PCBs act as the primary electrical connection between the PCB and other elements, improving electrical performance when compared with conventional PCB designs.

    Steps taken by PCB Runners production team to make the controlled tolerances castellation PCBs:

    ∙ During manufacturing and assembly, we attach the PCB to a panel using brake tabs. Each tab requires up to 5 mm of edge length, and two are typically placed per edge. However, as might be predicted, the size and form of the board have a significant impact on the quantity and placement of tabs.

    ∙ A copper circular ring needs to be present on the board’s top and bottom. The final hole diameter + 0.70mm is the smallest pad size that we advise. For instance, the pad size should be at least 1.50mm if the finished hole size is defined as 0.80mm, which is our suggested minimum hole size. This results in a 0.30mm annular ring.

    ∙ We strongly advise inner layers to preserve the identical size pads at the end of the annular rings in the outer layers, unless it is unfeasible; this will boost the castellated hole’s mechanical strength.

    ∙ Although we suggest a to be 0.8mm or bigger, we may make castellated holes with a completed hole diameter as low as 0.5mm. Additionally, the PCB must have precisely one-half of the hole left on it any other split ratio could result in more manufacturing errors.

    ∙ These tables show the capabilities lists for both Rigid and Flex PCBs manufactured at PCB Runners.

    Castellation PCB have significant impact on PCB manufacturing services.

    Flex PCBs

    Parameter

    Capability

    Board size

    10*10mm

    Minimum Drill (Mechanical) Hole Diamete

    0.008” (0.2 mm)

    Minimum Via (Laser) Size

    5 mil (0.15 mm)

    Minimum Micro Via (Laser) Size

    3 mil (0.07 mm)

    Castellated holes size

    Clearance with routing method

    Min hole is 0.50mm

    Min distance b/w Test point and plate edge

    0.2mm

    Board routing method

    Laser cut and punching

    Aspect Ratio

    Laser Drill (min 1:1 & standard 1:1)

    Mechanical Drill ( min 1:2 & standard 1:1)



    Rigid PCBs

    Parameter

    Capability

    Board size

    20*30mm

    Minimum Drill (Mechanical) Hole Diamete

    0.006” (0.15 mm)

    Minimum Via (Laser) Size

    1 mil (0.025 mm)

    Minimum Micro Via (Laser) Size

    1 mil (0.025 mm)

    Castellated holes size

    Clearance with routing method

    Min hole is 0.50mm

    Min distance b/w Test point and plate edge

    0.2mm

    Board routing method

    CNC Method

    Aspect Ratio

    Laser Drill (min 1:1 & standard 1:1)

    Mechanical Drill ( min 1:2 & standard 1:8)



    For Rigid PCBs of size 20*30mm we offer minimum drill size of 0.15mm and castellated hole size of 0.50mm. For Flex PCBs of size 10*10mm we are offering minimum drill size of 0.2mm and castellated hole size of 0.50mm.

    Quality Commitment of PCB runner

    PCB Runner offers turnkey solutions which include custom design layout, fabrication, components procurement & assembly labor, for all industries. Our expert design layout team efforts help the end R&D engineers/ Buyers/ Purchasers to reduce their time by going back & forth to design PCBs based on manufacturing capabilities & running DFM & DFA twice.

    You are welcome to submit your design files to our email at sales@pcbrunner.com or engineering@pcbrunner.com

    PCB Runner offers high-quality and effective castellation PCB for flawless assembly services.
