Building a PCB, or printed circuit board, assembly is a bit like putting together a puzzle. Every piece needs to fit just right. If you miss a step, the whole thing can fall apart. From the initial idea to the final board assembly, numerous opportunities exist for things to go wrong. But don’t worry, most problems are easy to spot and fix if you know what to look for.

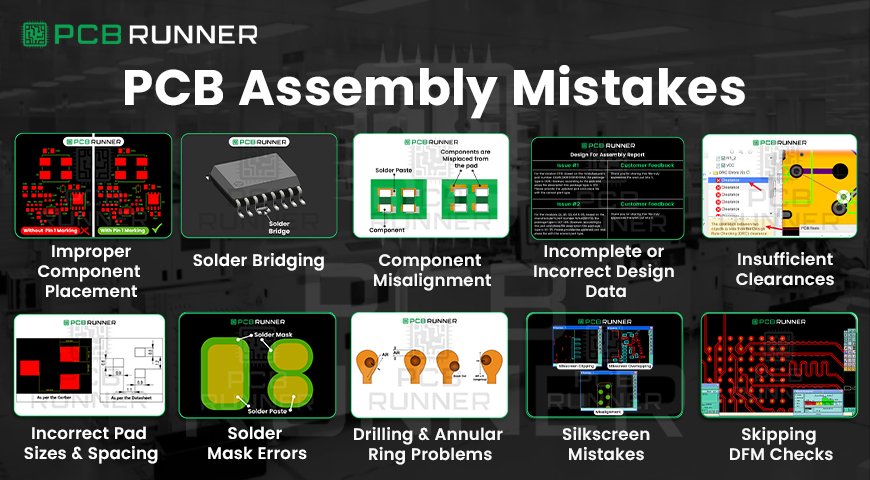

Below, you’ll find the most common mistakes in PCB assembly and simple ways to avoid them. Whether you’re new to circuit board assembly or you’ve done it a hundred times, these tips will help you get better results every time.

1. Improper Component Placement

One of the biggest mistakes in PCB assembly is putting parts in the wrong place. Even a minor mix-up can cause short circuits, signal problems, or even damage the board.

How to avoid it:

• Double-check your design files before starting.

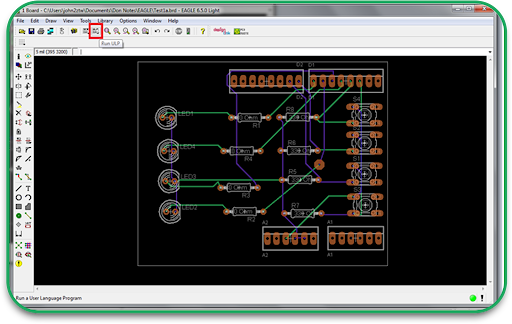

• Use PCB design software to visualise the layout of your board.
• Pay close attention to part orientation, look for pin one or polarity marks.
• After assembly, do a visual inspection to catch any misplaced parts.


2. Solder Bridging

Solder bridging occurs when excess solder creates a connection between two pads or traces that shouldn’t be in contact. This can cause short circuits and device failures.

How to avoid it:

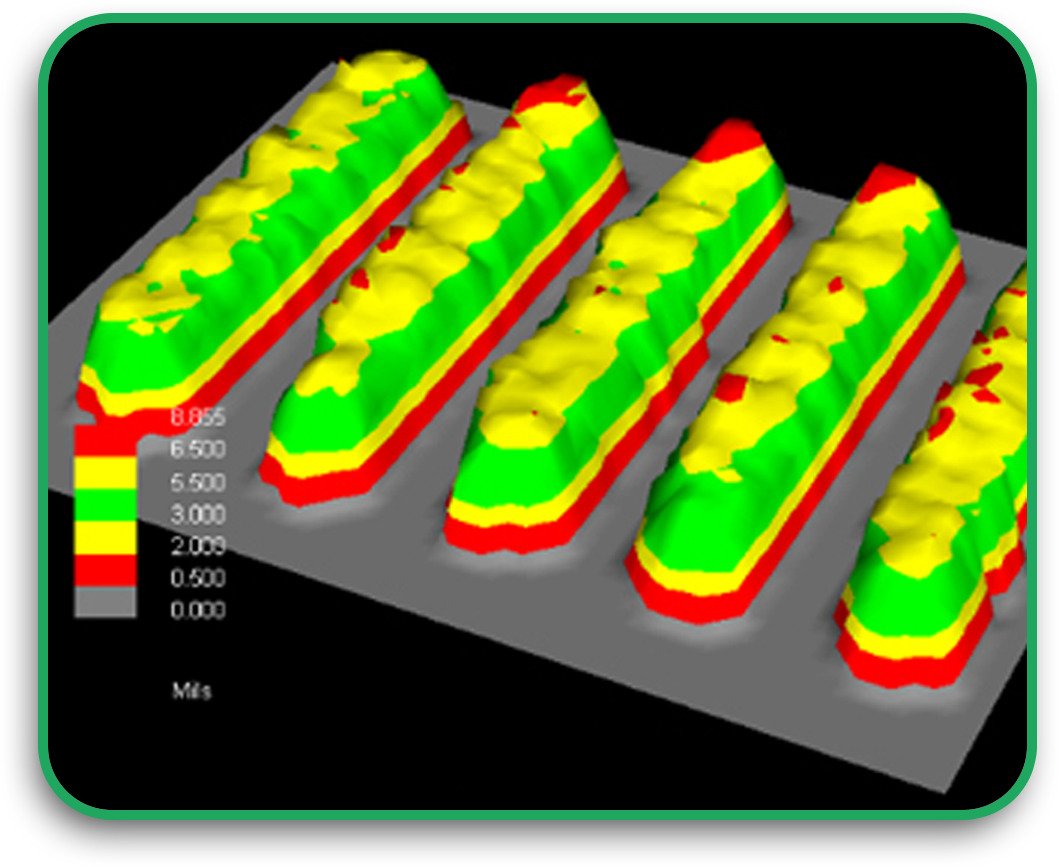

• Use the right amount of solder paste.
• Make sure your solder stencil has proper openings and spacing.
• Inspect your PCB prototype or finished board for solder bridges.
• Use a solder wick or sucker to fix any bridges you find.

3. Component Misalignment

If a part isn’t aligned with its pads, it may not form a good connection. This can cause weak joints, signal issues, or even make the part fall off later.

How to avoid it:

• Calibrate your pick-and-place machines regularly.
• Use support systems to keep the board steady during the assembly process.
• Check placement accuracy before soldering.
• Do regular maintenance on your assembly equipment.

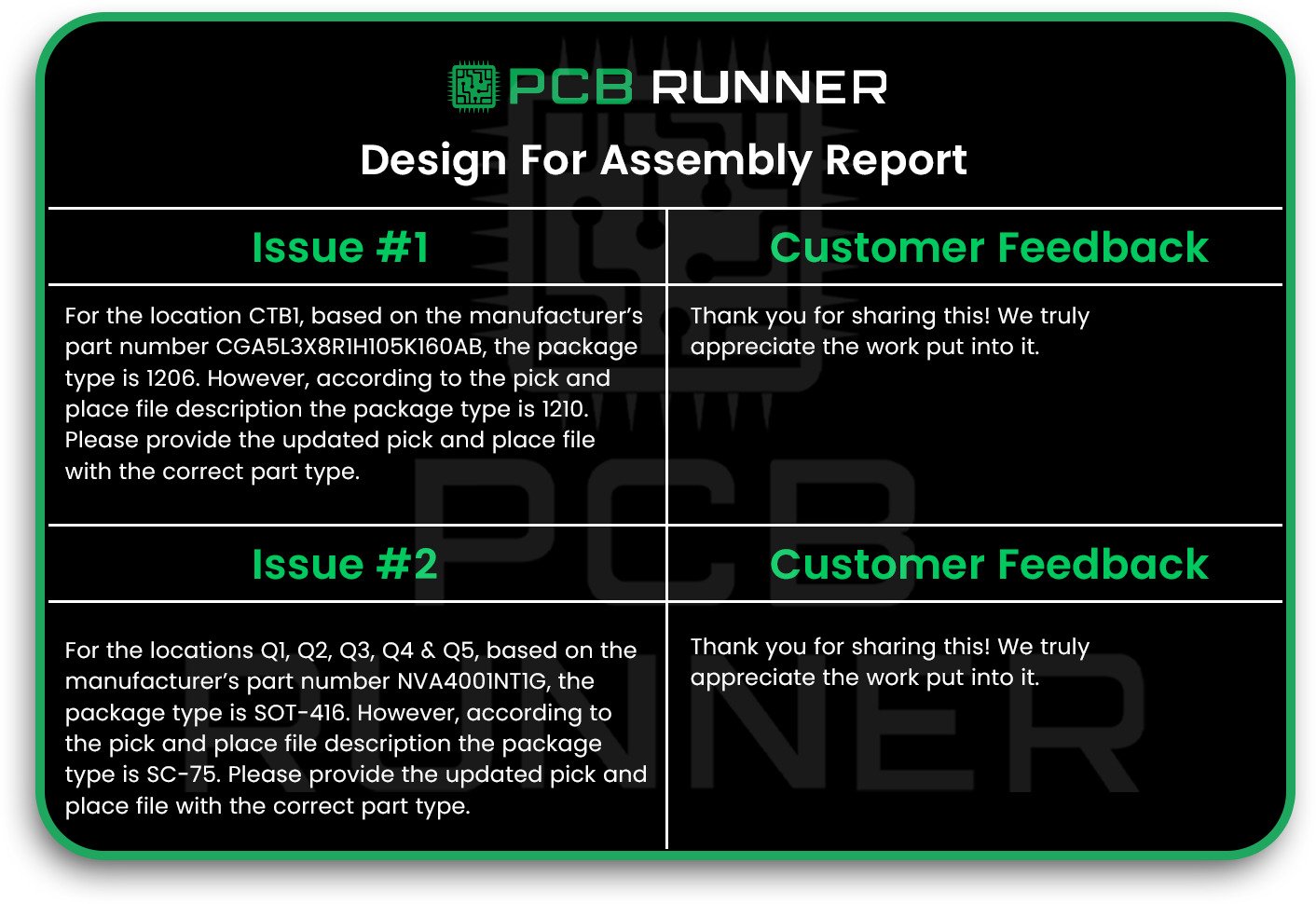

4. Incomplete or Incorrect Design Data

If your assembly team doesn’t have all the correct information, mistakes are bound to happen. Missing or unclear drawings, wrong part numbers, or missing polarity marks can all lead to trouble.

How to avoid it:

• Provide precise, complete assembly drawings.
• Include all part references, values, and special instructions.
• Ensure that polarity and pin one marks are clearly visible on your silkscreen.
• Double-check that your assembly notes match your PCB fabrication assembly files.


5. Insufficient Clearances

If traces, pads, or components are too close together, you risk short circuits, noise, or even manufacturing errors.

How to avoid it:

• Follow standard clearance guidelines for your board assembly.
• Use your design software’s clearance check tools.
• Don’t try to squeeze too many parts into a small space; leave room for safe connections.


6. Incorrect Pad Sizes and Spacing

Pads that are too small can make weak solder joints. Pads that are too large can cause components to shift out of place during soldering.

How to avoid it:

• Use recommended pad sizes for each component type.
• Keep pad spacing within the limits set by your PCB assembly company.
• Test your design with a PCB prototype before full production.

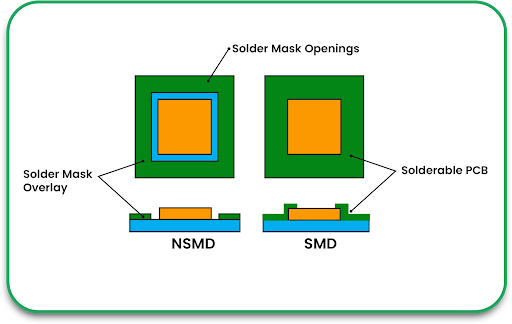

7. Solder Mask Errors

A solder mask keeps solder where it belongs. If the mask openings are incorrect, you may encounter solder bridges or exposed copper that can corrode over time.

How to avoid it:

• Ensure there’s sufficient space between mask openings and nearby pads or vias.
• Check for solder mask slivers, which can wash away during manufacturing.
• Review your design for proper solder mask coverage before sending it to PCB Assembly UK.

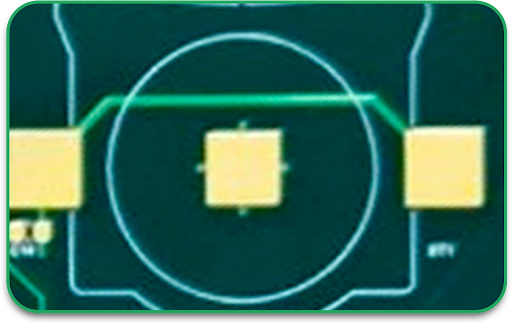

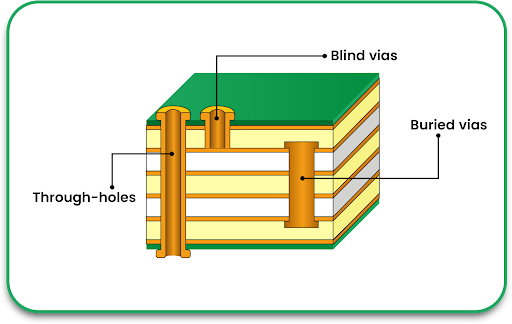

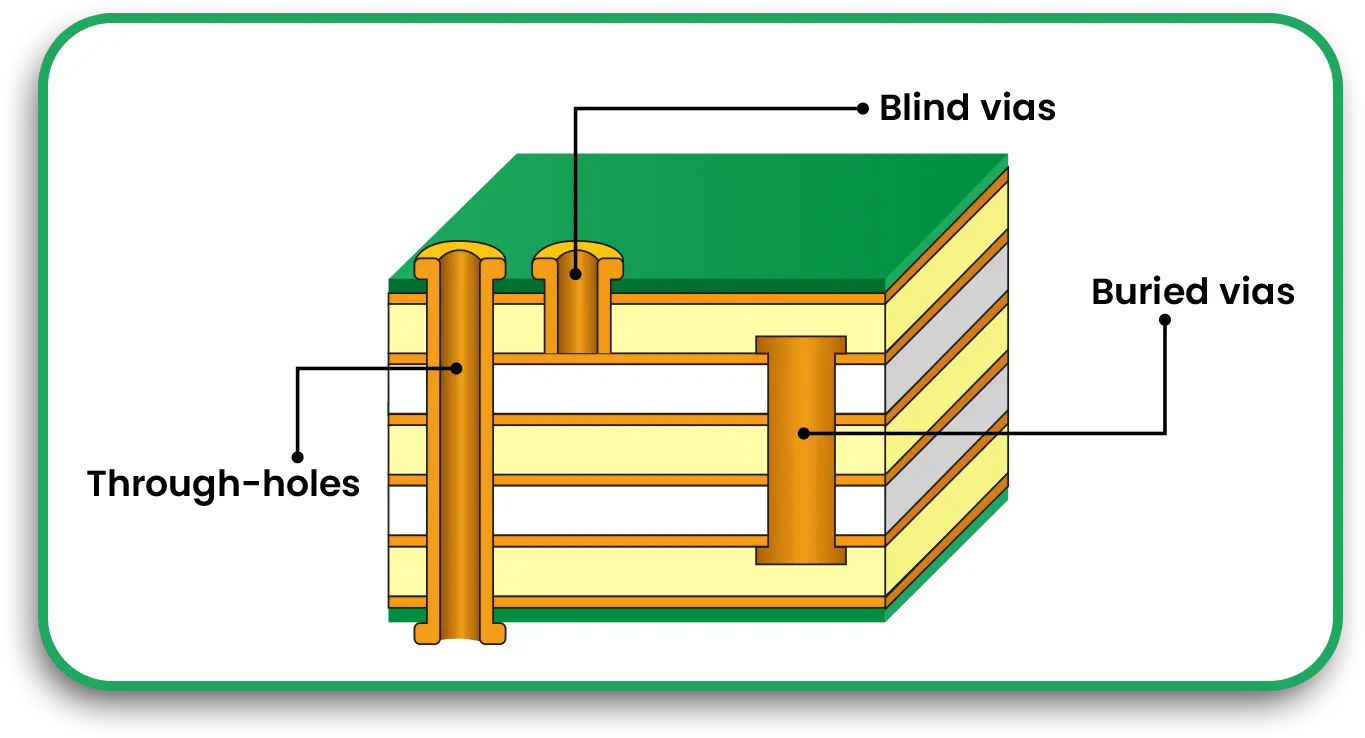

8. Drilling and Annular Ring Problems

Drilling holes for vias or component leads is a delicate process. If the holes are off or the annular ring (the copper around the hole) is too small, you can lose electrical connections.

How to avoid it:

• Follow your PCB and assembly supplier’s guidelines for hole size, ring width, and spacing.
• Avoid making holes too close to the edge of the board.
• Check your finished boards for missing or broken rings.

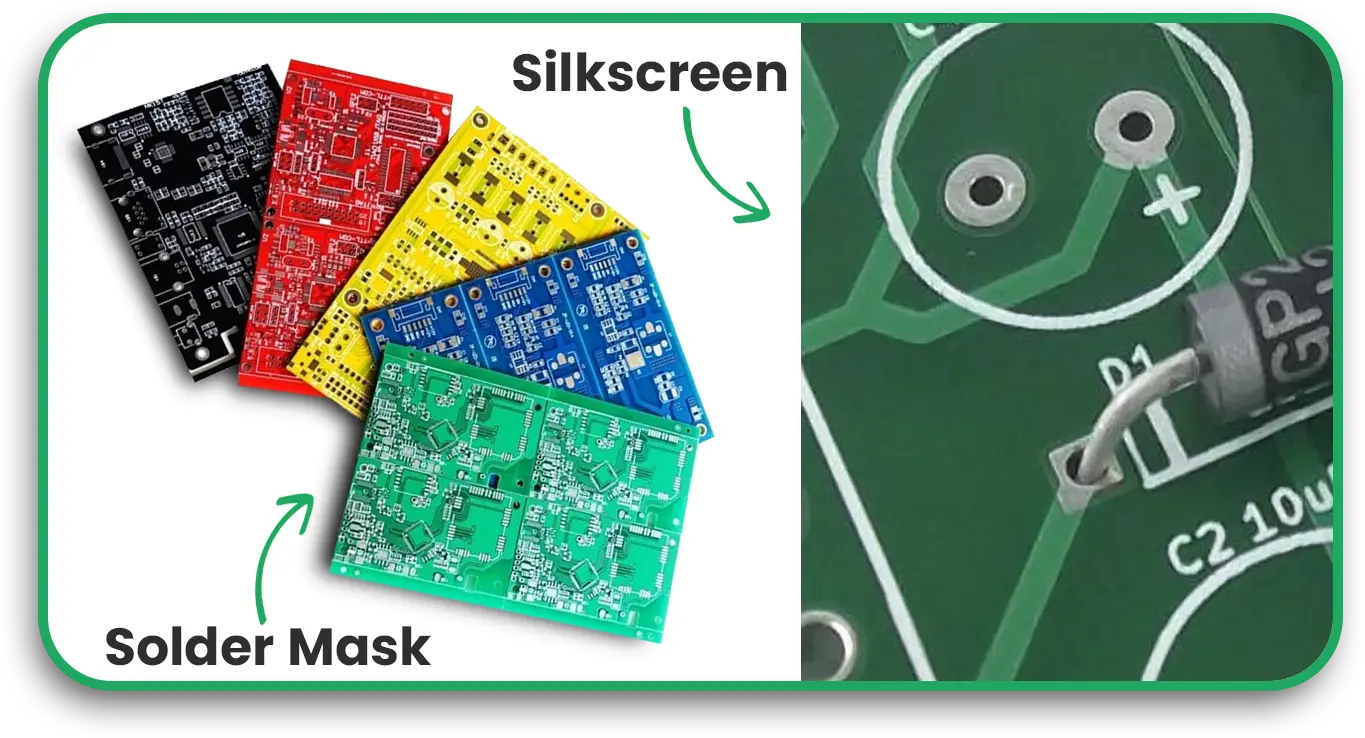

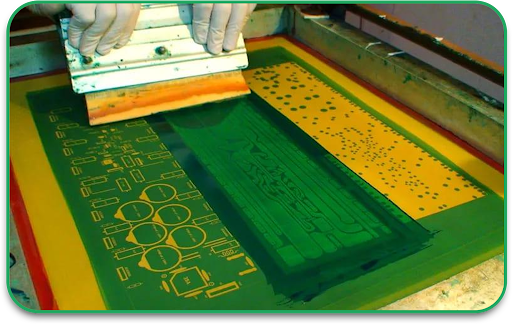

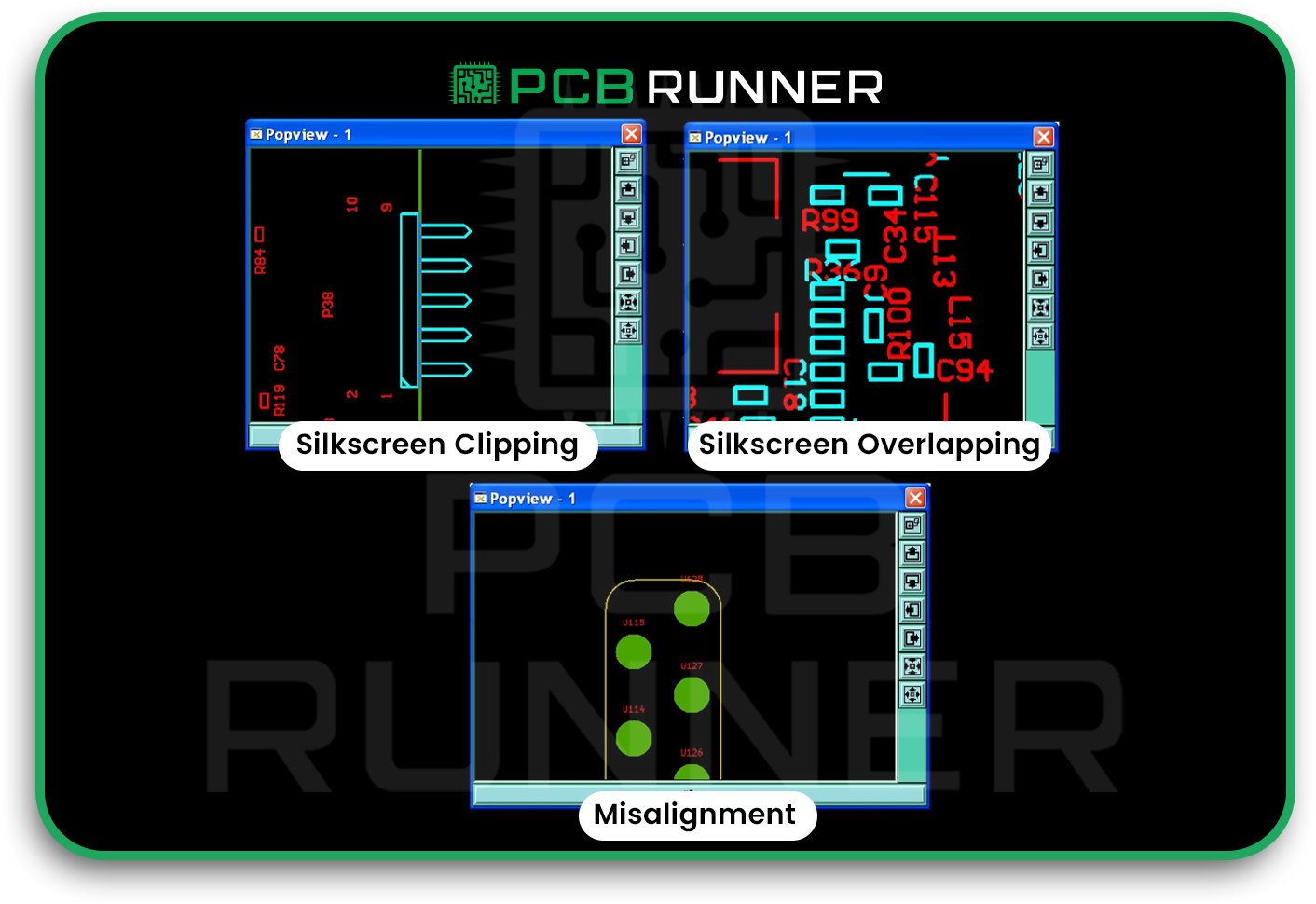

9. Silkscreen Mistakes

The silkscreen layer indicates the location and orientation of parts. If it’s missing or wrong, your assembly team might make mistakes.

How to avoid it:

• Ensure that all essential markings (such as polarity or pin 1) are clear and easy to read.
• Double-check that the silkscreen data matches your assembly instructions.
• Use high-contrast colours for easy visibility.


10. Poor Thermal Management

Excessive heat during soldering can damage your board or components. Not enough heat can lead to weak joints.

How to avoid it:

• Use thermal pads or heat sinks where needed.
• Control soldering temperatures carefully.
• Follow DFM (Design for Manufacturability) and DFA (Design for Assembly) guidelines to predict and prevent heat-related issues before assembly.

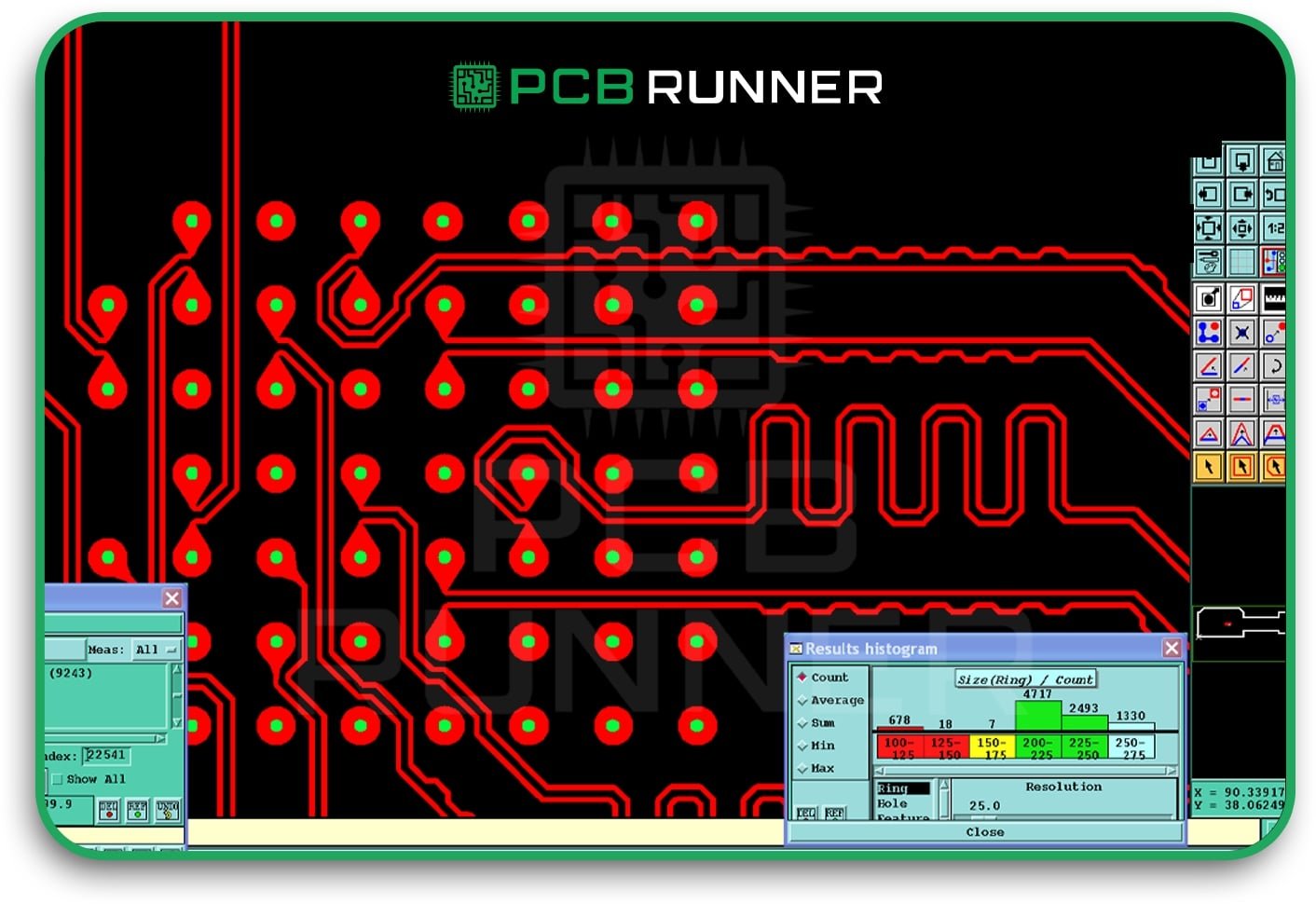

11. Skipping Design for Manufacturability (DFM) Checks

DFM checks help identify problems before your board enters production. Failing to perform these checks can result in costly mistakes and delays.

How to avoid it:

• Always run DFM checks before sending your design to a PCB assembly company.
• Utilise online tools or consult with your PCB assembly partner in the UK for assistance.
• Fix any issues found during the check, even small ones can cause significant problems later.


12. Not Testing Prototypes

Jumping straight to mass production without testing a PCB prototype can lead to disaster. Small mistakes can turn into significant losses if you don’t catch them early.

How to avoid it:

• Build and test a prototype before full production.
• Use your prototype to identify and correct assembly errors, design flaws, and any issues with real-world performance.
• Make changes based on your test results before ordering more boards.

Product Highlights: What Makes a Good PCB Assembly Process?

A great PCB fabrication assembly process is:

• Careful: Every step is checked and double-checked.
• Clear: All instructions and drawings are easy to understand.
• Flexible: Mistakes are identified and corrected promptly.
• Supported: Your PCB assembly company provides assistance and guidance when you need it.

Tips for Different Types of Projects

For simple boards:

Start with a PCB prototype to catch easy-to-miss mistakes.

For complex boards:

Work closely with your PCB assembly company to ensure every detail is correct.

For high-volume orders:

Utilise automated inspection and testing to maintain high-quality standards.

Final Thoughts

PCB assembly doesn’t have to be stressful. By watching out for these common mistakes and following simple steps, you can consistently build better boards. Take your time, review your work, and always test before scaling up. Your next circuit board assembly will thank you for it.

When you pick up a device, your phone, a remote, or even a washing machine, there’s a printed circuit board (PCB) inside, quietly making everything work. But have you ever wondered how these boards are made to last? Or how can you trust that a PCB will work right, every time? The answer lies in quality and reliability, especially during the PCB manufacturing and assembly process.

Let’s take a closer look at what makes a good PCB, how PCB assembly manufacturers test for quality, and what steps you can take to ensure your project is built to last.

Why Quality and Reliability Matter in PCB Assembly

A PCB is like the backbone of any electronic device. If it fails, the whole device can stop working. That’s why PCB production and assembly aren’t just about putting parts together. They’re about making sure every board works as it should, for as long as.

Poor-quality PCBs can cause:

• Sudden device failures
• Safety problems
• Expensive repairs or recalls
• Unhappy customers

So, when you’re choosing a PCB assembly manufacturer or looking for PCB manufacturing services in the UK, it’s smart to ask: How do they ensure quality? How do they make sure every board is reliable?

Key Factors in Evaluating PCB Quality

Let’s break down what to look for when checking the quality of PCB fabrication and assembly:

1. Certifications and Standards

A reputable manufacturer will adhere to industry standards. For example, ISO 9001 certification and IPC Class 2, 3, or 3A qualifications demonstrate that a company adheres to stringent quality standards. These certifications indicate that the manufacturer thoroughly checks every step, from the selection of materials to the production of finished boards.

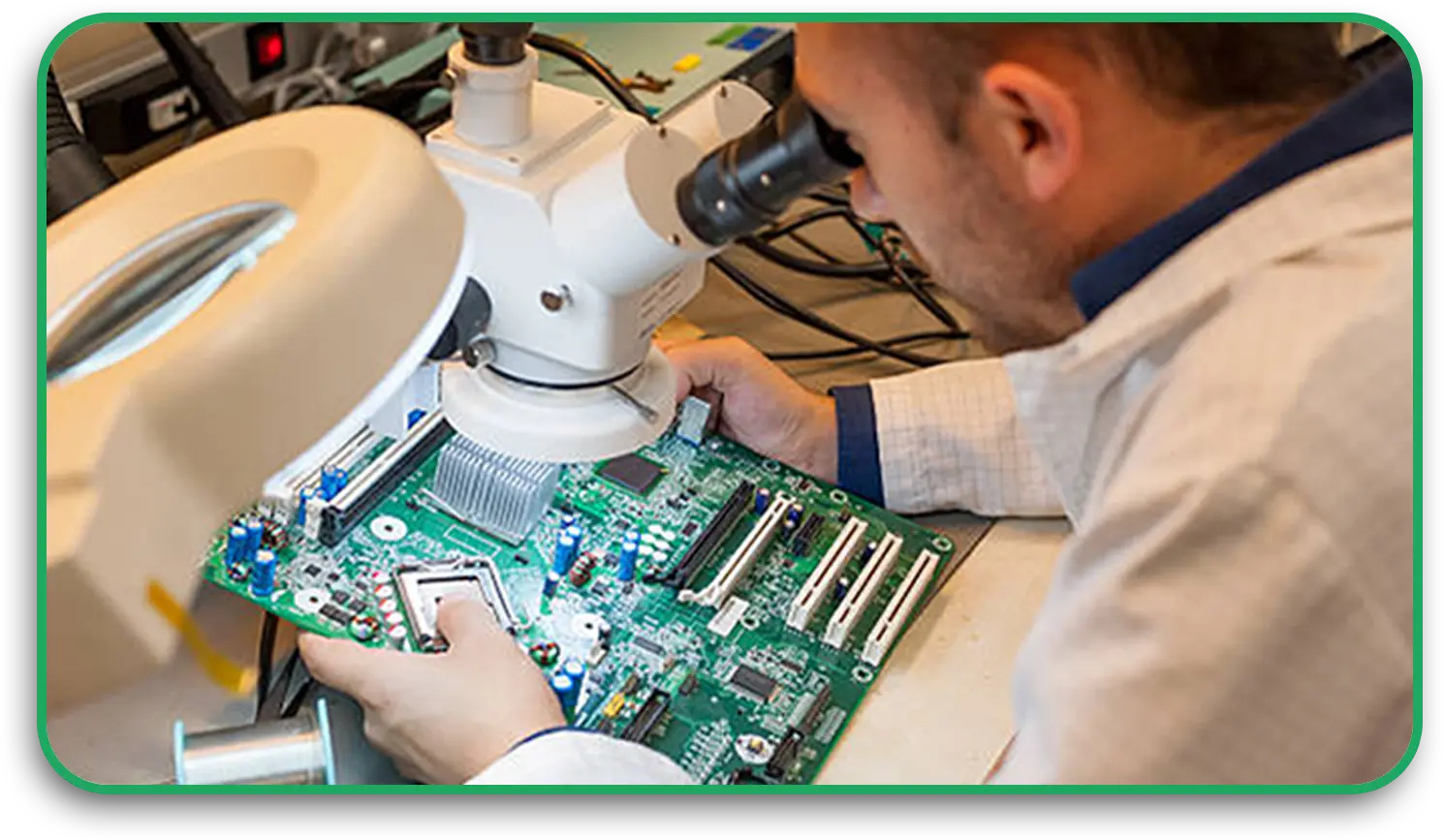

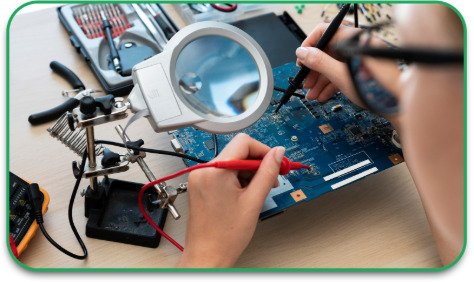

2. Visual Inspection

This is the first line of defence. Trained staff or machines look for:

• Misplaced or missing components
• Soldering problems
• Scratches or cracks
• Bent or broken pins

It might seem simple, but catching visible problems early can save a lot of trouble later.

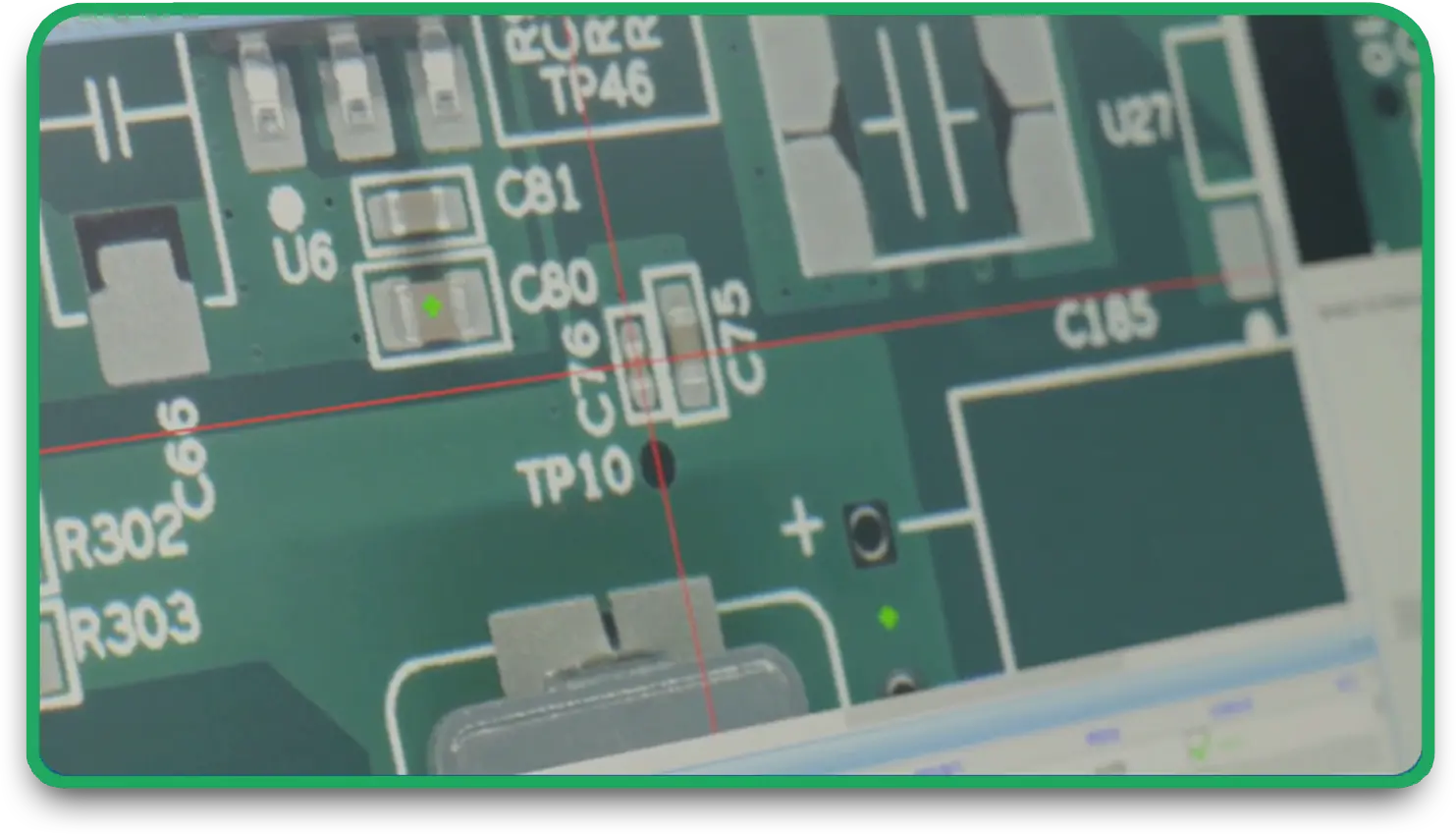

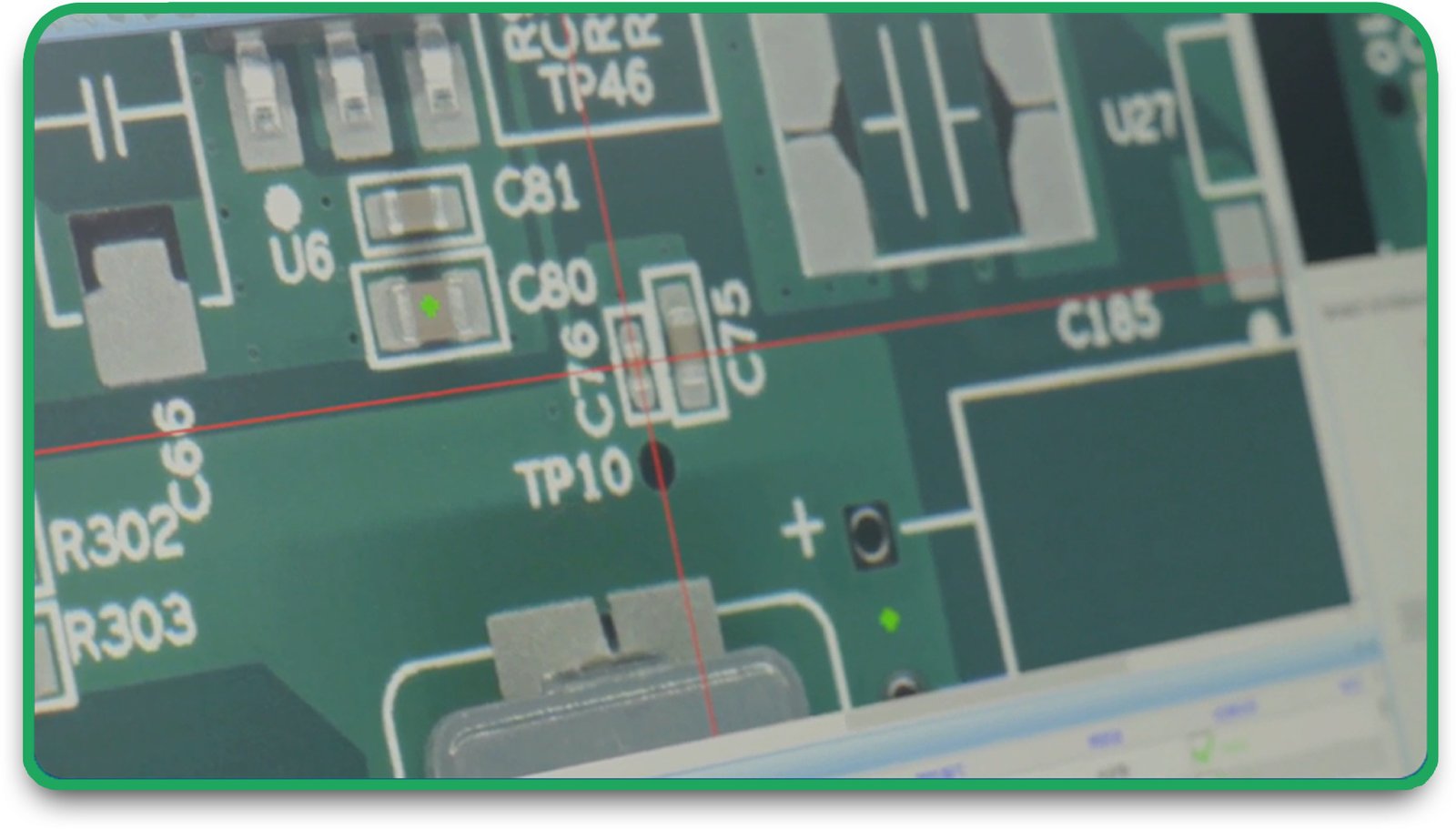

3. Automated Optical Inspection (AOI)

AOI uses cameras and software to scan the board. It compares each board to a “golden” reference board, spotting things like:

• Wrong parts
• Soldering defects
• Misaligned pieces

AOI is fast and accurate, and it’s used at several points during PCB assembly services to catch mistakes before they become bigger issues.

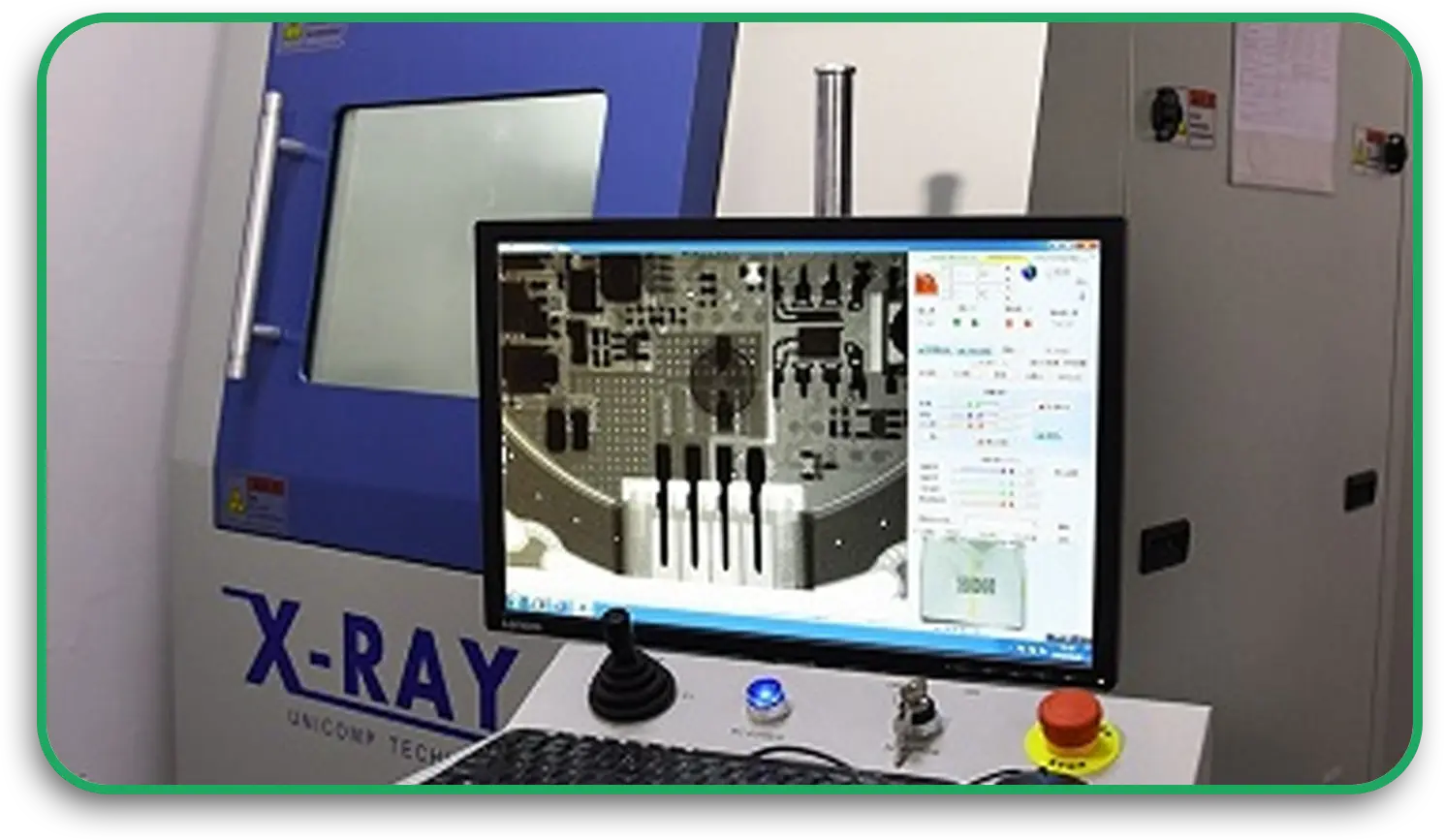

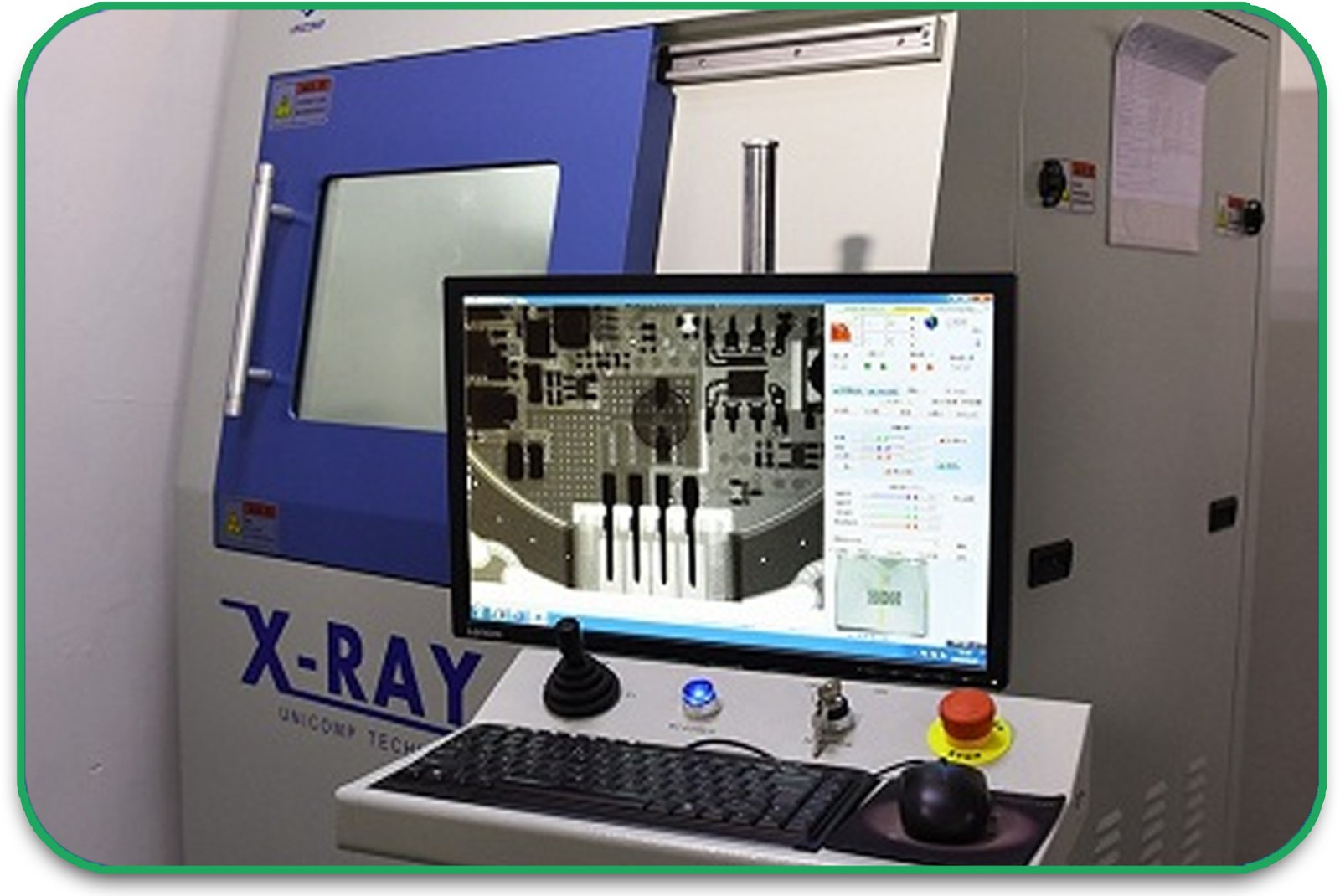

4. X-ray Inspection (AXI)

Some parts, such as Ball Grid Arrays (BGAs), have solder joints that are hidden underneath. X-ray inspection looks inside the board to find hidden problems, such as:

• Bad solder joints
• Voids or gaps
• Short circuits

AXI is especially important for complex boards or those used in safety-critical devices.

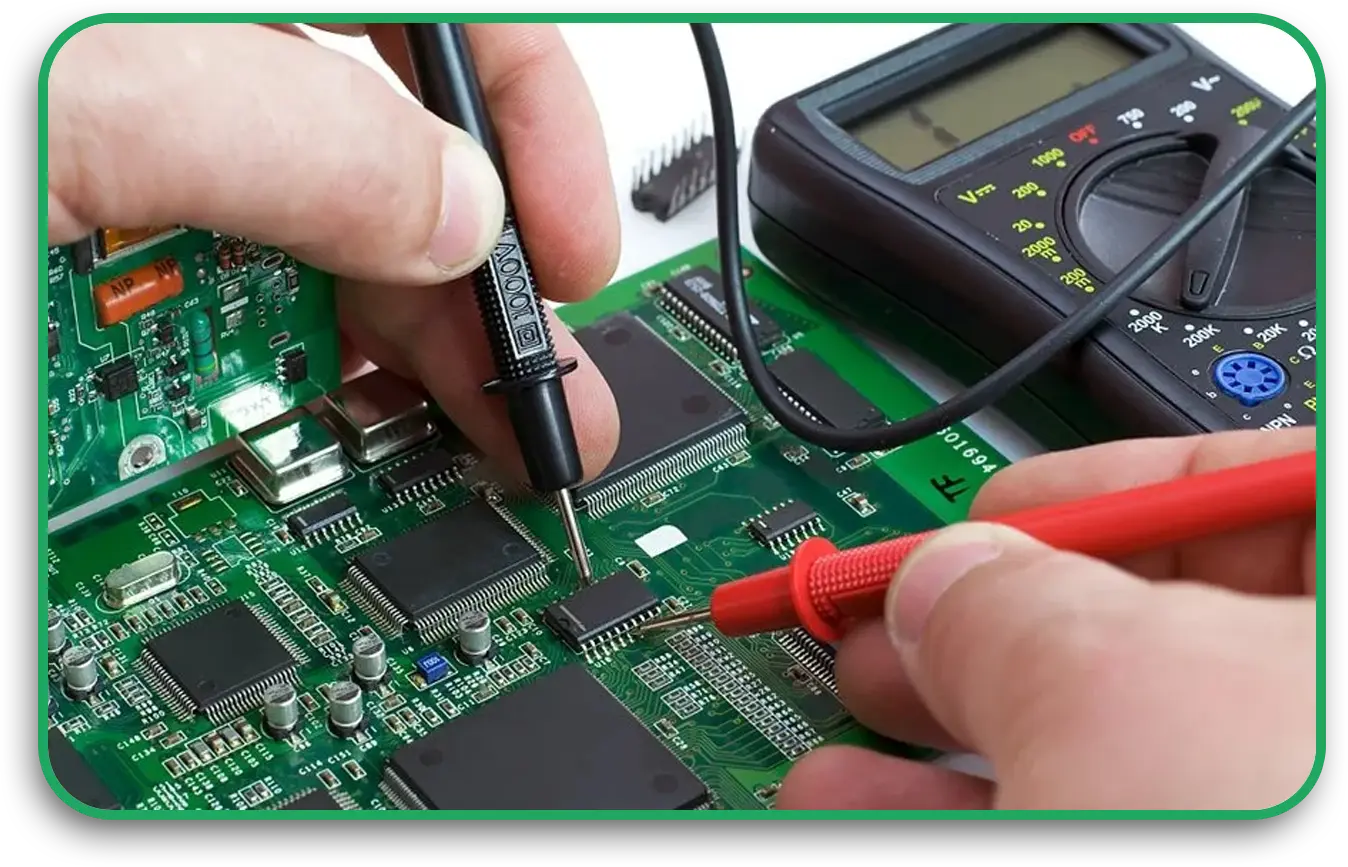

5. In-Circuit Testing (ICT)

ICT checks each component on the board. It measures things like resistance, capacitance, and voltage to make sure every part is in the right place and working as it should. If something is wrong, it’s easier to fix at this stage than after the board is fully built.

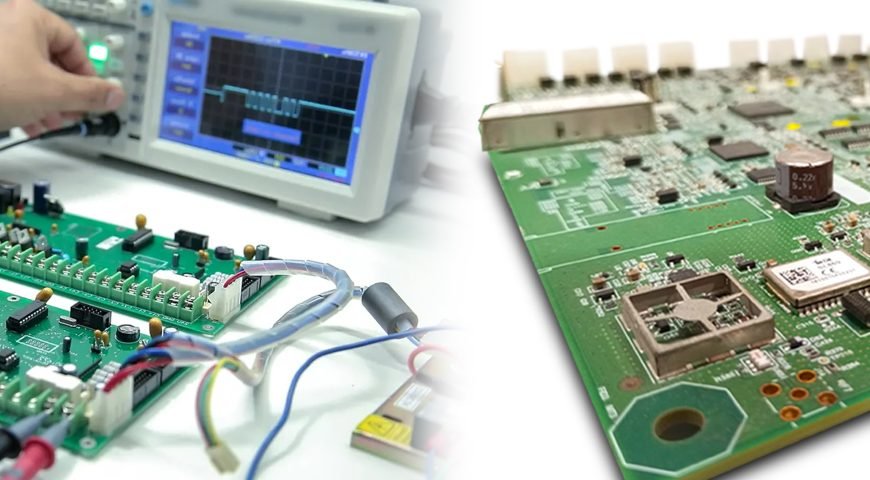

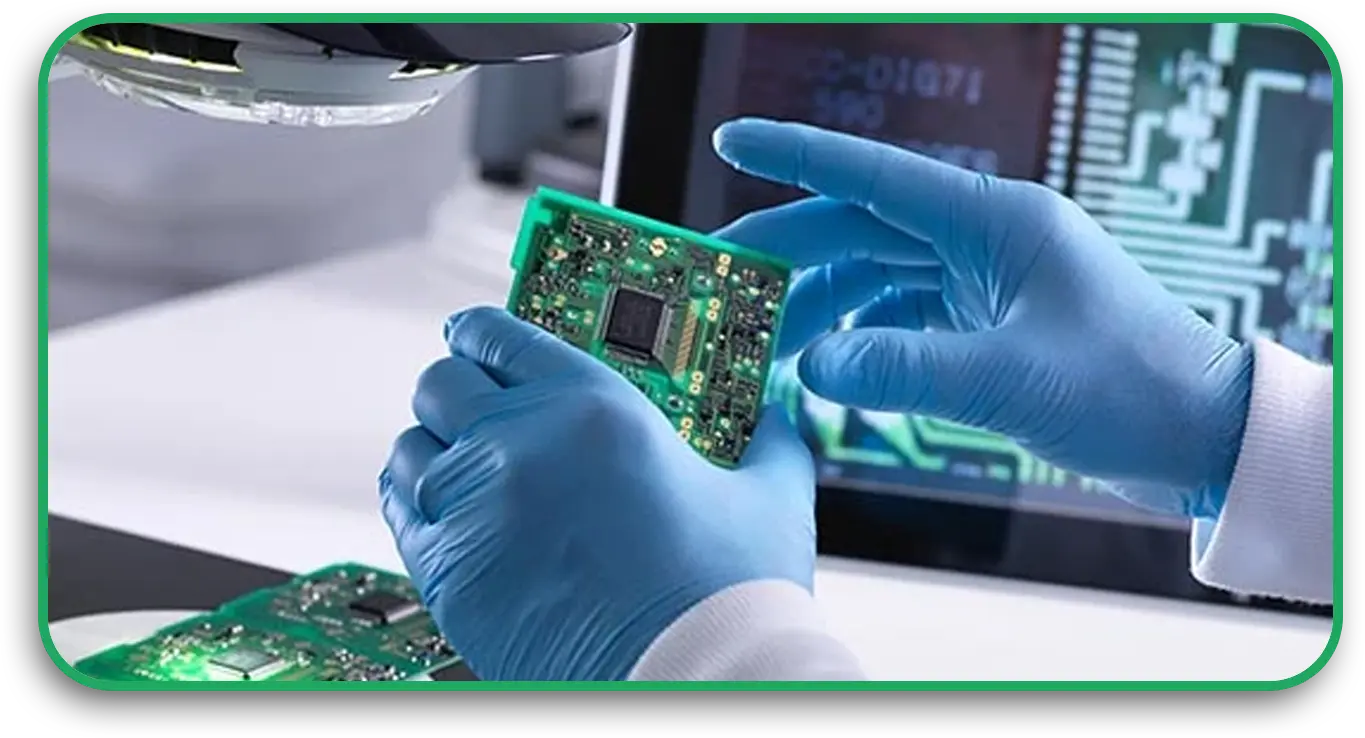

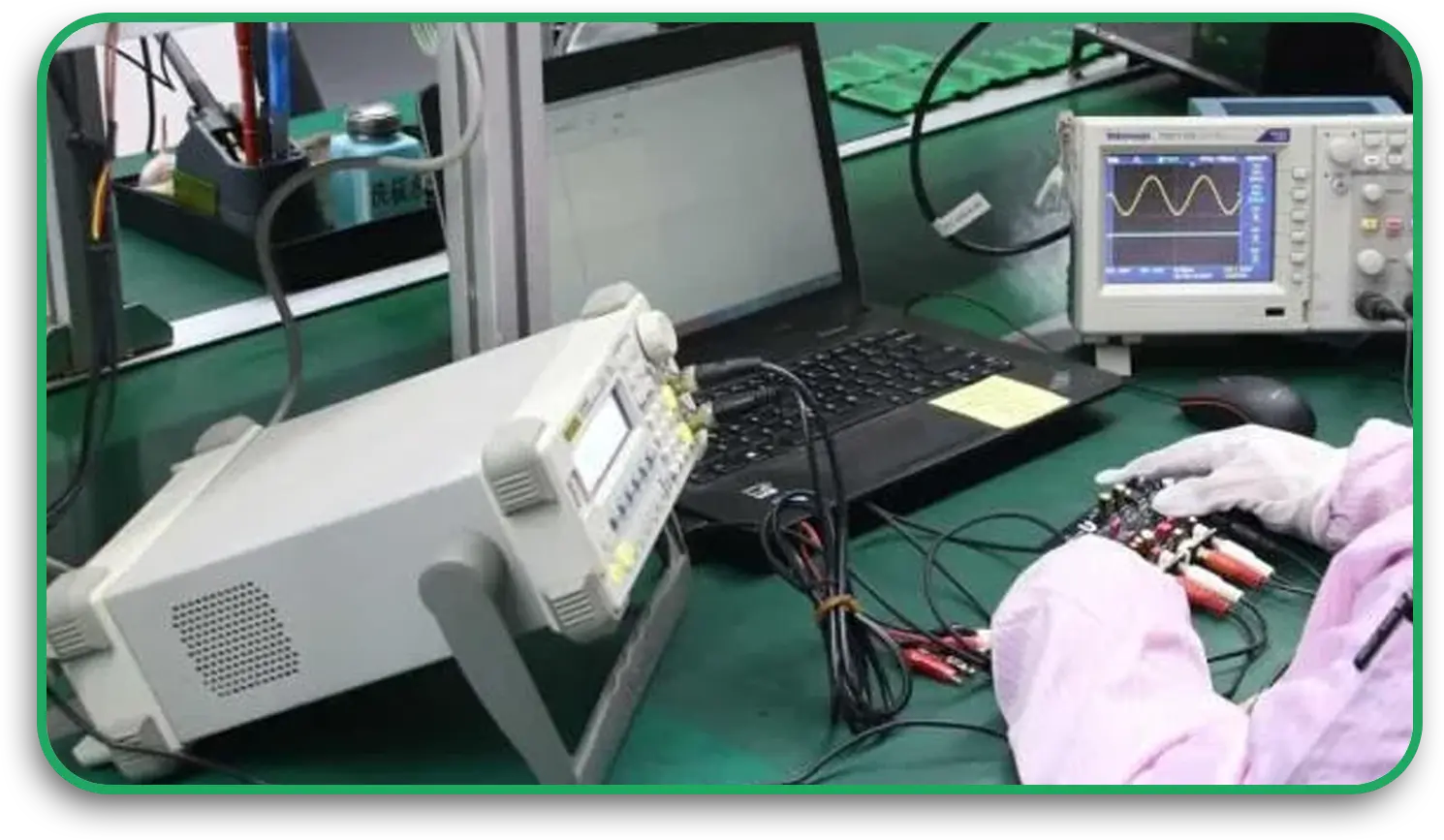

6. Functional Testing

This is like a “dress rehearsal” for your board. The manufacturer powers up the board and runs it through its paces, just like it would work in real life. If the board passes, you know it’s ready for action. If not, it goes back for repairs.

7. Solderability Testing

Solderability tests check if the pads and component leads can form strong, reliable solder joints. This helps prevent cold joints or weak connections that could fail later.

8. Microsection Analysis

This is a comprehensive examination of the board’s structure. A small piece of the board is cut out and examined under a microscope. This helps identify problems within the board, such as poor plating or delamination, that are not visible from the outside.

What Makes a Reliable PCB Assembly Manufacturer?

A reliable PCB and assembly partner does more than just build boards. They help you avoid problems before they start. Here’s what to look for:

• Experience: Do they work with industries like medical, aerospace, or defence, where reliability is critical?
• Transparency: Do they share their testing and inspection processes with you?
• Support: Can you reach them easily if you have questions or need help?
• After-sales service: Will they assist you in resolving issues after delivery?

Manufacturers, with their facilities (not just brokers), can usually offer more consistent quality and better support.

How PCB Manufacturing UK Services Ensure Quality

In the UK, top PCB manufacturing and assembly companies employ a combination of manual and automated checks to identify issues early. They review engineering files before starting, offer 24-hour tech support, and provide instant quotes and status updates.

Some even let you upload your design files online for a quick review. This helps catch errors before production starts, saving time and money.

Tips for Evaluating PCB Assembly Quality

• Ask for test reports: Good manufacturers will share their inspection and test results.
• Request a sample: Test a few boards before ordering a large batch.
• Check for certifications: Look for ISO9001 and IPC standards.
• Visit the factory: If possible, see their process in action.
• Read reviews: What do other customers say about their reliability?

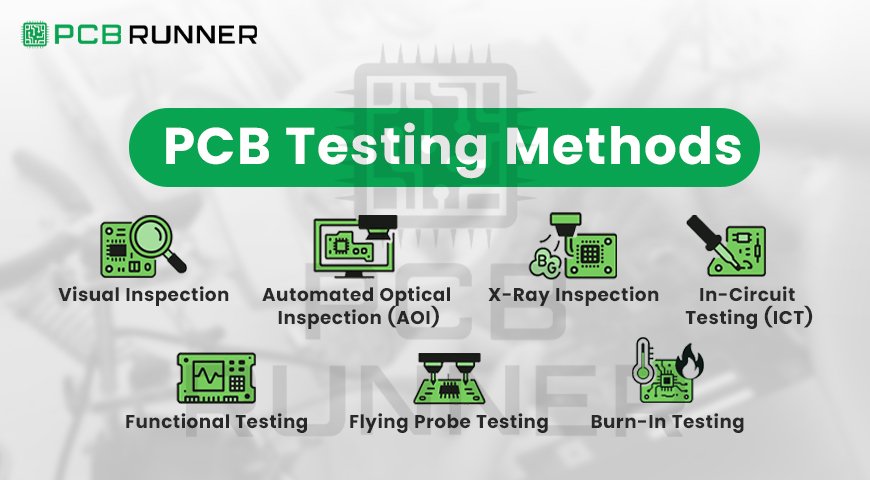

Product Highlights: Common PCB Testing Methods

Here’s a quick look at the most common tests used in pcb fabrication and assembly:

Final Thoughts

Quality and reliability in PCB manufacturing and assembly don’t happen by accident. They’re built into every step, from design to final inspection. By understanding the tests and checks used by your PCB assembly manufacturer, you can make smarter choices and avoid costly surprises.

Remember:

• Always check for industry certifications.
• Don’t skip inspection and testing.
• Work with manufacturers who value transparency and support.

A reliable PCB is more than just a collection of parts; it’s the foundation of every great electronic product. Take the time to evaluate quality, and your devices will thank you for it.

Selecting a PCB assembler is a crucial decision that impacts the entire project. Correct choices lead to time and cost efficiency, while incorrect decisions can result in hours spent troubleshooting avoidable issues. This blog aims to provide clear, articulated guidance, practical insights, and effective strategies tailored to you.

Why It Matters

Think back to your most recent group assignment. Everyone worked hard, and it almost fell apart because one person did not pull their weight. Choosing a PCB assembler is similar to picking that teammate. You need someone dependable, competent, and someone who does not complicate things further. While building a custom printed circuit board requires skill, it also requires an equally skilled collaborator.

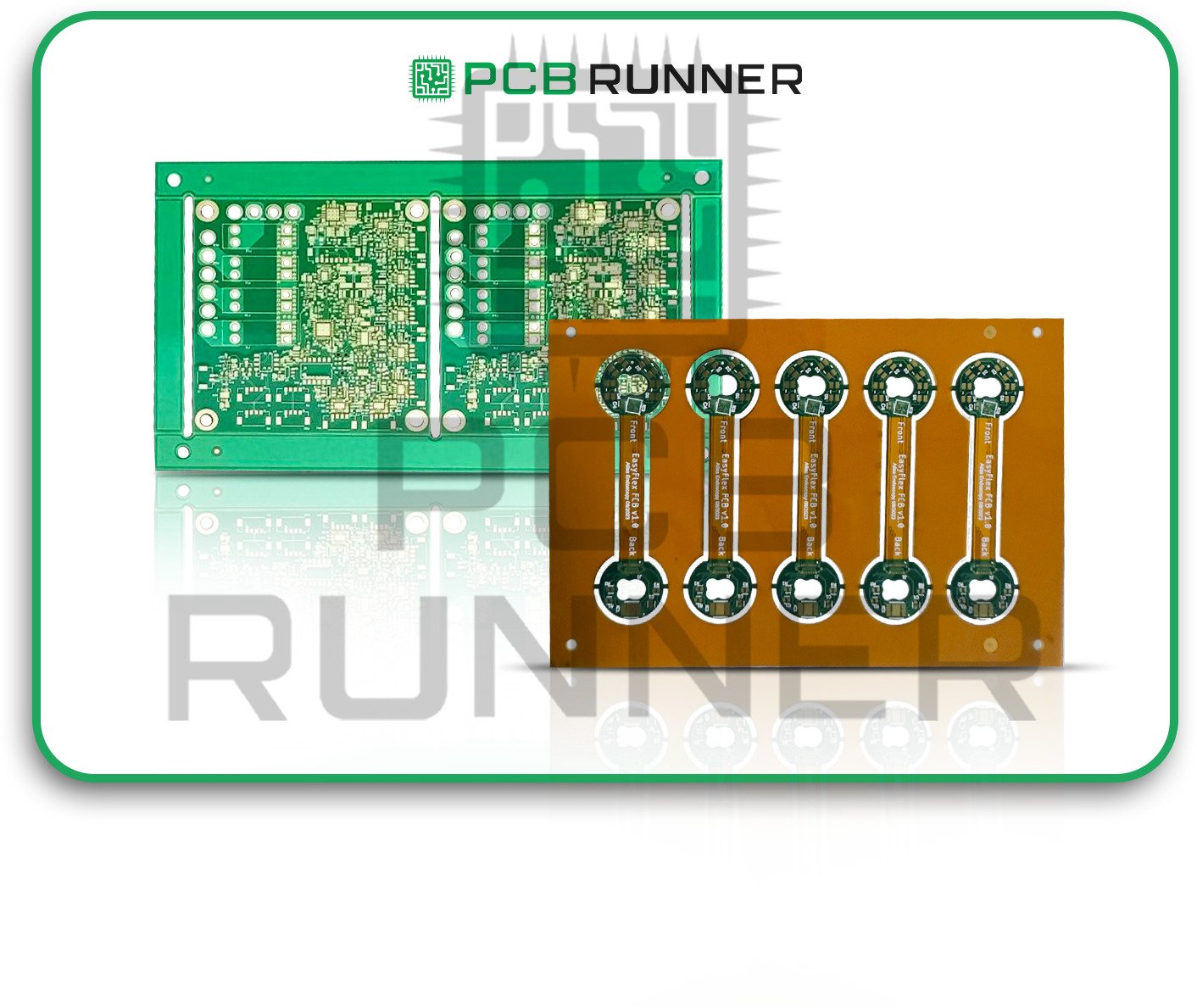

In Their Skill Set, Do They Have Experience with PCB Prototyping?

The same applies to offering specialised services. A plumber cannot attend to automobile issues. In parallel, ask if they have experience managing similar projects. Have they developed prototype circuit boards for comparable products? Do they understand the distinction between a rushed prototype and an elaborate final offering? If a vendor understands prototype PCB manufacturing, it translates to far less guesswork on your end.

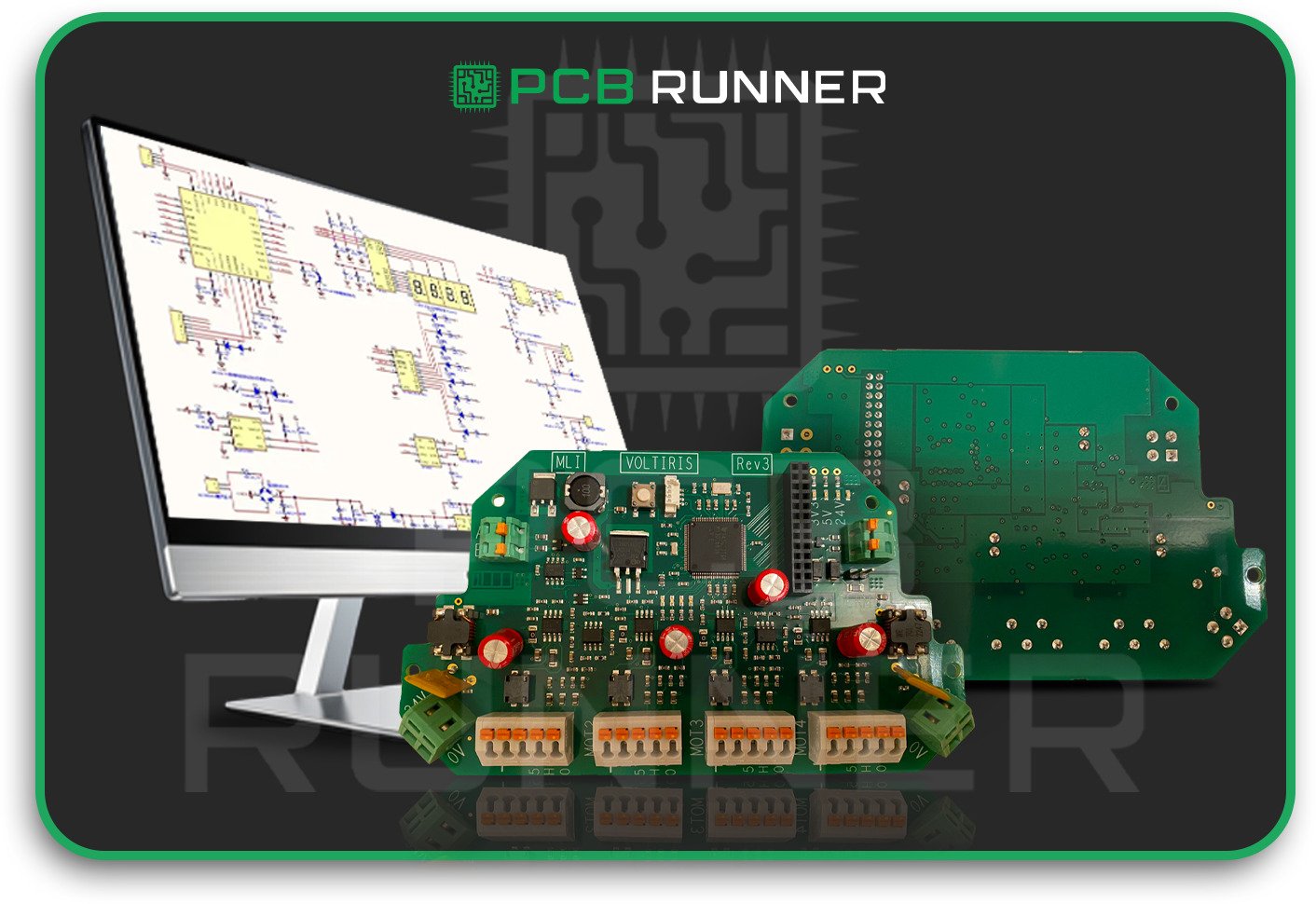

Are They A Full-Service Provider?

Some firms are limiting themselves to an assembly-only approach, while others undertake everything from design and fabrication to assembly and testing. Life becomes easier when dealing with full-service printed circuit board manufacturers in the UK. You do not have to manage multiple vendors. Diagonal communication problems are less likely to occur. Issues are resolved more quickly. You receive a custom-printed circuit board designed specifically for you.

What Certifications And Standards Do They Follow?

Certification and standards are relevant because they demonstrate your company’s commitment to quality. Look for ISO 9001 and IPC-A-610 certifications. These demonstrate that your company values quality processes. If your company is serious about safety, it will also follow RoHS regulations. Do not be shy to ask for verification. A reputable prototype PCB board manufacturer will provide documentation without any problems.

How Soon Can They Deliver?

Time is money. When testing ideas, getting results is critical. Are urgent orders accepted? Is rapid PCB prototyping offered? If deadlines cannot be met, continue searching. A reliable assembler understands that sometimes flexibility is a must.

What Kind of Engineering Support Do They Provide?

Assess the nature of communication with the company. Does the support team include an engineer? Do they offer resolution assistance, or do they opt to provide apologies for errors made? During the phases of prototype fabrication, support helps ease troubleshooting within the design. Timely prototype manufacturing support encourages builders to focus more on construction than on worrying.

How Do They Source Components?

Assess the nature of communication with the company. Does the support team include an engineer? Do they offer resolution assistance, or do they opt to provide apologies for errors made? During the phases of prototype fabrication, support helps ease troubleshooting within the design. Timely prototype manufacturing support encourages builders to focus more on construction than on worrying.

What Quality Control Tests Are Performed?

Negligence should never be tolerated, especially when it comes to orders placed to cater to specific needs. Engineers have shamed the profession by designing circuits whose faults may not be eyeballed. Automated Optical Inspection (AOI) cameras have also been collectively linked, albeit unphonically. Automated Optical Inspection (AOI) cameras indiscriminately index their targeted boards and overlook thoroughly tested units with disregard.

Can They Scale with Your Project?

You may begin with ten boards; however, consider the flexibility of scaling up to one hundred orders or even a thousand the following year. Determine if they can handle larger orders as demand increases. A capable prototype PCB board manufacturer should be able to scale production when needed.

What Equipment Do They Use?

Outdated devices may be prone to more errors. Do they have modern pick-and-place machines? Are both surface mount and through-hole parts within their capability range? The proper equipment increases the chances of better boards. Don’t hesitate to request a tour or pictures.

What Do Other Customers Say?

Do they complete orders on schedule? Are the products functioning as specified? If possible, try to talk to someone who has used the service. Actual experiences are much more valuable than brochures filled with flowery language.

Are They Honest and Helpful After the Sale?

Everyone makes mistakes sometimes. Will they help you resolve issues? Good assemblers take responsibility for their work. After paying, most people expect services to disappear, but responsive businesses continue to engage their clients.

What About Pricing?

The cheapest option isn’t always the best option. Ensure that you receive a detailed estimate. What does it cover? Are there additional fees for testing or expedited services? Ensure that all costs are transparent and that there are no hidden fees. A dependable assembler will always provide cost transparency.

Product Highlights: What Sets a Good Assembler Apart

Prompt delivery for PCB prototyping

• Orders ranging from single pieces to a thousand are welcomed
• Genuine engineering guidance, beyond just marketing
• Design, fabrication, assembly, and testing services offered under one roof
• Backed by quality certifications and customer testimonials

Project guidance tips

• Prototypes that are simple in design:
• Opt for flexible order management. Select a vendor that combines agility and reliability in delivery timelines to ensure streamlined order completion.
• Elaborate custom and complex printed circuit board projects:
• Focus on thorough, advanced testing, engineering support, and the integration of complex components.
• Ready for expansion?

Look for scalability in the partner/vendor. Confirm their staffing and equipment capabilities for larger workloads.

Your Success Checklist

• Do they have a proven track record with similar projects?
• Are they a single-source supplier?
• Are they compliant with industry norms?
• Can they meet milestones?
• Will real engineering staff provide support?
• What is their policy regarding parts and sourcing?
• What are their testing protocols?
• Can they grow with you?
• What is their equipment?
• What do customers report?
• Are they transparent regarding support and pricing?

Final Remarks

In choosing a PCB assembler, one cannot simply consider price or quick turnaround. It requires a diligent evaluation of a partner that genuinely cares about your success. Use this checklist prior to placing your order. Pose queries. Ensure responses and trust your instincts.

The PCB is the heart of the product. It deserves the best care and attention. It can help transform ideas presented in sketches into working prototypes and could even become the next market sensation.

Have this checklist handy at all times. Never forget, the foundation of every outstanding product starts with a single, precisely engineered prototype. Ensure yours is memorable.

Have you ever wondered how modern electronics keep getting smaller and more powerful at the same time? Are you building a compact device and worried about fitting all your parts onto one board? Or maybe you’re trying to boost performance without increasing the size. If so, you’re not alone. These are common concerns when working with circuit boards, and double-sided PCBs might be just what you need.

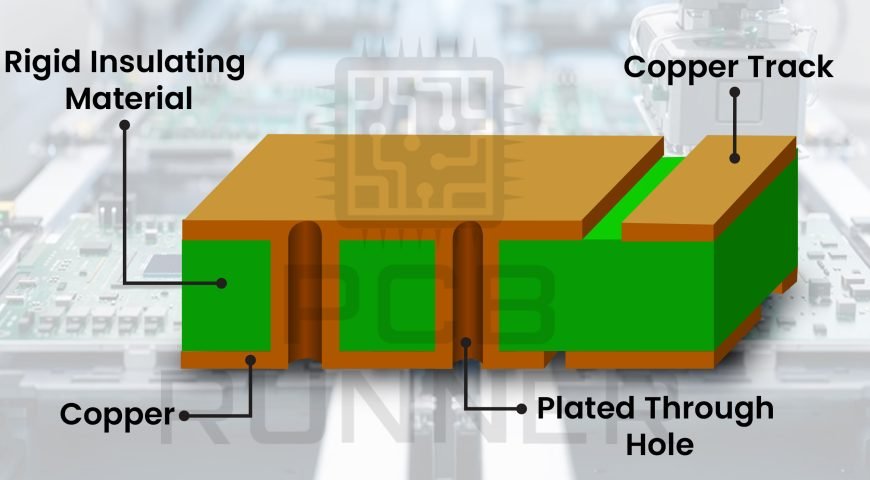

What Is a Double-Sided PCB?

A double-sided PCB is a printed circuit board with copper layers on both the top and bottom. This means you can place components on both sides. That gives you more space and more options when designing your circuit. Unlike a single-sided board, which only has copper on one side, a double-sided PCB lets you connect parts in a more compact and flexible way.

Why Should You Use a Double-Sided PCB Board?

If you’re designing something like a smart device or sensor that needs to be small but fast, a double-sided PCB board can help. Here’s why many people choose them:

• You get more space for parts: You can place parts on both sides instead of just one.
• Your circuits work better: Signals can travel shorter paths, which helps improve speed and reliability.
• They cost less than multilayer boards: You get better performance without paying as much as you would for more complex boards.

Real Benefits of Double-Sided PCB Assembly

Double-sided PCB (Printed Circuit Board) assembly is an essential technique in modern electronics. It involves placing electronic components on both the top and bottom sides of the board. This approach offers several practical benefits that make it a popular choice for many applications. Let’s break down why double-sided PCB assembly is so useful:

1. Better Performance

One of the biggest advantages is better performance. When signals don’t have to travel as far across the board, resistance is lower, and the speed of signal transmission increases. This means that your device can operate more efficiently and respond faster. For example, in devices like smartphones or gaming consoles, quick data transfer is crucial, and double-sided PCBs help achieve that.

2. Smaller Designs

Another major benefit is the ability to create smaller designs. By utilising both sides of the PCB, you can fit more components into a limited space. This is particularly valuable for compact gadgets like smartwatches, fitness trackers, or advanced medical devices, where saving space without sacrificing performance is essential. As technology becomes more compact, double-sided PCB assembly allows engineers to meet these size constraints effectively.

3. Even Heat Spread

In addition to size and performance, double-sided PCBs also offer improved heat management. Since components are distributed on both sides, heat can spread out more evenly, preventing hotspots and reducing the risk of overheating. This balanced heat dissipation ensures that the board stays reliable over time, even in demanding applications like industrial machinery or high-performance computing devices.

4. Flexible Layouts

Moreover, double-sided PCB assembly provides greater flexibility when designing circuit layouts. The extra surface area on both sides gives engineers more options for routing power and signal paths. This means that complex circuits can be designed with fewer compromises, allowing for more efficient and organised component placement. As a result, products can be developed with enhanced functionality while maintaining a sleek, compact form factor.

Where Are Double-Sided PCBs Used?

Double-sided PCBs show up in a lot of products. Here are some common examples:

• Phones and tablets: To keep them slim while still packing power.
• Cars: For control panels, cameras, and safety systems.
• Factories: Machines use these boards in their control units.
• Medical gear: For small tools that track or check health.

Why Choosing the Right PCB Manufacturer Matters

When you’re ready to build a double-sided board, working with the right team is key. Not all PCB manufacturers are the same. A skilled PCB manufacturer can help you avoid problems and build a board that really works.

Here’s what to look for:

• Experience with double-sided PCB assembly
• Ability to meet deadlines
• Support with custom printed circuit board designs
• Good materials and quality checks

You want someone who listens to your needs and delivers solid work.

When You Need a Custom Printed Circuit Board

No two projects are exactly alike. That’s why going custom can be a big help. A custom printed circuit board fits your exact needs, from the shape of the board to the thickness of the copper.

Custom boards let you:

• Pick your own layout and shape
• Decide how much power to handle
• Choose special materials for heat or strength

This kind of flexibility means your design can be faster, smaller, and tougher.

Start With a Double-Sided PCB Board Prototype

Before you make 1,000 boards, it’s smart to test one. That’s what a double-sided PCB board prototype is for. A prototype lets you see how the board fits, works, and holds up in real use.

Fast prototyping helps you catch mistakes early. Good pcb manufacturers can get you a working sample fast, so you stay on schedule.

Why PCB Manufacturers Should Offer Fast Prototyping

Time is important. Delays cost money. That’s why it’s helpful to work with a team that offers fast PCB prototyping. Speed helps you:

• Test ideas quickly
• Fix problems early
• Launch your product faster

Some of the best pcb manufacturers offer 24–72 hour turnaround times on prototypes. That gives you more time to focus on the rest of your project.

Comparing Double-Sided to Other PCB Types

As you can see, double-sided boards are the perfect middle ground. They offer more power than basic boards but don’t cost as much as multilayer ones.

What Is Double-Sided PCB Jump Scoring?

Sometimes, a large double-sided PCB needs to be broken into smaller parts. That’s where PCB jump scoring helps. It’s a method where grooves are made on both sides of the board so you can snap parts apart cleanly.

Jump scoring is useful if:

• You’re making panels of small boards
• You need easy break-off sections

Ask your PCB assembler if they offer this service, especially for high-volume jobs.

Choosing a PCB Assembler for Your Project

Once your design is ready, a pcb assembler takes the parts and puts them on your board. You want someone with experience in double sided PCB assembly.

Look for:

• Good reviews and past work
• Fast service times
• Support with testing

A reliable assembler means fewer headaches and better boards.

Final Thoughts

Double-sided PCBs offer a smart way to make your devices smaller and more powerful. They’re great for phones, tools, cars, and more. You get better signal flow, smaller size, and improved heat control.

To get started, work with experienced printed circuit board manufacturers. Whether you need a custom printed circuit board, a fast double sided PCB board prototype, or jump scoring, the right partner will guide you every step of the way.

If you’re ready to upgrade your design, reach out to a trusted pcb manufacturer or pcb assembler today like PCB Runner. Your next smart device might just start with a smarter board.

Effective testing is essential for ensuring the success of PCB assembly. Whether working with a prototype or a large production run, testing helps detect and resolve issues before they become costly problems. For PCB assemblers, comprehensive testing methods improve quality control, reduce failures, and ensure reliability.

Testing is a critical step in the PCB fabrication process. It helps confirm that all components function correctly, connections are secure, and the board meets performance expectations. This blog will explore the best testing strategies for PCB assembly, from initial inspections to advanced testing techniques.

The Importance of PCB Testing

PCBs are at the core of modern electronics. Any defect in a PCB can lead to malfunctions or system failures. Without proper testing, manufacturers risk delivering faulty products, leading to potential recalls and customer dissatisfaction.

Key reasons why PCB testing is crucial:

• Identifies defects early in the production process
• Ensures proper component placement and soldering
• Prevents short circuits and electrical failures
• Improves overall product reliability
• Reduces manufacturing costs by minimizing rework

Testing is not just about preventing defects; it is also about optimizing the production process and ensuring that each PCB meets industry standards.

Key PCB Testing Methods

Visual Inspection

The first step in PCB testing is visual inspection. This method helps detect apparent defects such as misaligned components, soldering issues, or missing parts.

• Identifies physical damage or contamination
• Detects incorrect part placement
• Ensures connectors and pads are properly aligned

While visual inspection is proper, it cannot detect hidden faults, making additional testing necessary.

Automated Optical Inspection (AOI)

Automated Optical Inspection (AOI) uses cameras and image processing to detect defects. This method is more efficient than manual inspection and helps identify issues like:

• Soldering defects such as bridges or cold joints
• Misaligned or missing components
• Variations in solder paste application

AOI is widely used in circuit board assembly because it provides quick and accurate results.

X-ray Inspection

X-ray inspection is crucial for high-density interconnect PCBs and multilayer designs. It helps detect defects that are not visible through AOI, such as:

• Voids in solder joints
• Hidden cracks in traces
• Misalignment in multilayer PCB assemblies

X-ray testing is beneficial for boards with Ball Grid Array (BGA) components, where connections are hidden beneath the package.

In-Circuit Testing (ICT)

In-circuit testing (ICT) checks individual components and connections on the PCB. This method verifies:

• Resistance, capacitance, and inductance values
• Voltage levels and signal integrity
• Short circuits or open circuits

ICT is effective for detecting early-stage assembly defects before functional testing.

Functional Testing

Functional testing ensures the PCB operates as intended. It simulates real-world conditions to check:

• Power regulation and signal flow
• Communication between components
• Response to inputs and outputs

Functional testing is essential for validating prototype PCB assembly before full production.

Flying Probe Testing

Flying probe testing is ideal for low-volume production and prototype PCB assembly. Unlike ICT, this method does not require custom test fixtures, making it more cost-effective.

• Tests continuity and component functionality
• Detects open and short circuits
• Suitable for multilayer PCBs with complex layouts

Burn-In Testing

Burn-in testing evaluates how a PCB performs under stress. It involves operating the PCB at high temperatures and voltages to detect potential failures.

• Identifies early component failures
• Ensures reliability in extreme environments
• Used for aerospace, automotive, and medical applications

Best Practices for PCB Testing

To improve PCB quality, manufacturers should follow these best practices:

• Use multiple testing methods: Combining AOI, ICT, and functional testing ensures a thorough inspection.
• Test early in the process: Catching defects early reduces rework and costs.
• Implement real-time monitoring: Automated systems can track defects as they occur, improving efficiency.
• Follow industry standards: Adhering to IPC and ISO guidelines ensures compliance with global quality benchmarks.
• Train personnel: Skilled technicians can identify issues that automated tests may miss.

How Testing Enhances PCB Fabrication and Assembly

By incorporating rigorous testing strategies, PCB assemblers can:

• Improve product reliability and longevity
• Reduce defects and manufacturing delays
• Lower production costs by minimizing rework
• Ensure compliance with industry regulations
• Deliver high-quality PCBs that meet customer expectations

Testing is not just about identifying issues; it is a crucial step in refining the manufacturing process and ensuring high-quality PCB assembly.

Conclusion

Effective testing is key to ensuring the success of PCB fabrication and assembly. By implementing a combination of visual inspection, AOI, X-ray testing, ICT, functional testing, and burn-in testing, manufacturers can detect and correct defects before they become serious problems. Partnering with a reliable PCB assembler that follows rigorous testing standards can help you achieve superior product quality. Whether you are working on a prototype or a large production run, investing in proper testing strategies will lead to better performance, reliability, and customer satisfaction.

Looking for High-Quality PCB Assembly?

At PCB Runners, we specialize in PCB fabrication, circuit board assembly, and testing solutions to ensure reliable and high-performance PCBs. Contact us today to learn how our testing strategies can enhance your production process.

Frequently Asked Questions (FAQs)

1. What is the most effective testing method for PCB assembly?
A combination of AOI, ICT, and functional testing provides the most comprehensive quality control.

2. Why is functional testing necessary?
It verifies that the PCB operates correctly under real-world conditions.

3. How does AOI improve PCB quality?
AOI quickly detects soldering defects, misaligned components, and other issues, reducing manual errors.

4. What testing methods are best for prototype PCB assembly?
Flying probe testing, AOI, and functional testing are commonly used for prototypes.

5. How can I ensure my PCB meets quality standards?
Work with an experienced PCB assembler that follows industry best practices and rigorous testing protocols.

Ensuring high-quality PCB assembly is crucial for the reliability and performance of electronic devices. Any defect in the assembly process can lead to malfunctions, failures, or costly rework. This is why PCB assemblers rely on a range of inspection techniques to detect issues early and maintain high manufacturing standards.

From automated optical inspection (AOI) to manual visual checks, these methods help PCB fabrication facilities identify soldering defects, misaligned components, and electrical faults before final deployment. In this guide, we will explore the most effective circuit board assembly inspection techniques and how they improve overall PCB quality and reliability.

Why PCB Inspection is Important?

Modern electronic devices are becoming smaller, more complex, and densely packed with components. This makes it essential for PCB assemblers to use advanced inspection methods to ensure manufacturing accuracy and defect-free production.

Inspection plays a key role in:

• Detecting soldering defects like cold joints, bridging, and insufficient solder
• Identifying misaligned or missing components
• Ensuring trace integrity to prevent electrical failures
• Reducing rework and product recalls
• Improving overall production efficiency

With multiple inspection techniques, manufacturers can maintain consistent quality while meeting industry standards for high-performance PCBs.

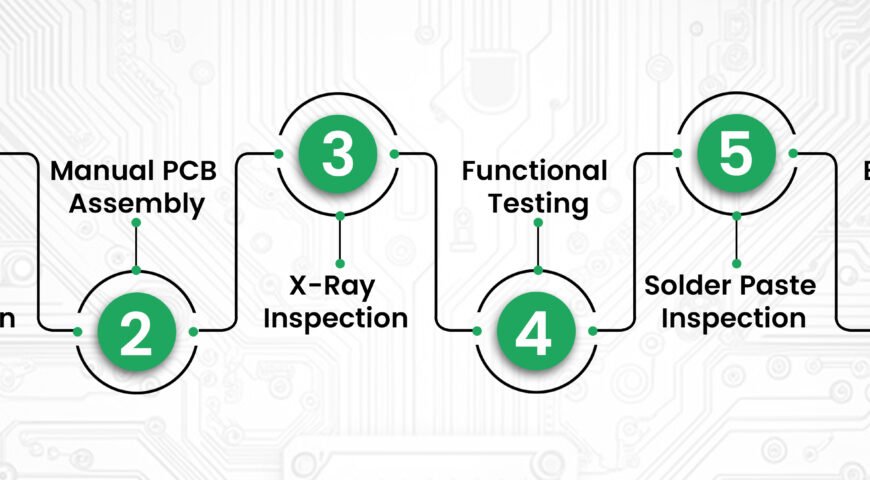

Key PCB Inspection Techniques

1. Automated Optical Inspection (AOI PCB Inspection)

Automated Optical Inspection (AOI) is one of the most widely used techniques in PCB fabrication. It uses high-resolution cameras and AI-driven image processing to scan boards for defects, soldering issues, and misaligned components.

Benefits of AOI in PCB Inspection:

• Fast and efficient – Scans large batches of PCBs in seconds
• High accuracy – Detects defects with precision down to micrometers
• Non-contact method – Does not risk damaging the board
• AI integration – Improves defect recognition and reduces false positives

AOI is ideal for inspecting Surface Mount Technology (SMT) boards with fine-pitch components. It ensures that every component is placed correctly and securely before moving forward in the assembly process.

2. Manual PCB Assembly Visual Inspection

Despite advancements in automation, manual inspection remains an essential step in PCB fabrication. Skilled technicians examine boards using magnification tools, microscopes, and bright lighting to identify defects that machines might miss.

Why Manual Inspection is Important:

• Detects subtle defects such as hairline cracks or irregular solder joints
• Allows human judgment for complex PCB layouts
• Useful for low-volume production or prototype testing

While manual inspection is effective, it is time-consuming and less reliable for mass production. That’s why it is often combined with automated testing methods to ensure thorough quality checks.

3. X-ray Inspection for Hidden Defects

For multi-layer PCBs or boards with Ball Grid Array (BGA) components, X-ray inspection is essential. This technique allows manufacturers to see through layers and inspect connections that are not visible to the naked eye.

Advantages of X-ray PCB Inspection:

• Reveals hidden solder joints and internal traces
• Detects voids, cracks, and short circuits
• Non-destructive method for detailed analysis

X-ray inspection is widely used in high-reliability applications such as aerospace, medical, and automotive electronics.

4. Functional Testing for Performance Validation

Once a PCB is assembled, it must be tested to ensure it works as intended. Functional testing involves applying power to the board and checking its response to various inputs.

Key Functional Testing Methods:

• Boundary scan testing – Used for testing digital circuits with limited physical access
• In-circuit testing (ICT) – Checks individual components and connections
• Flying probe testing – A flexible alternative to ICT for small batch testing

Functional testing is essential in verifying PCB functionality, signal integrity, and power distribution. It helps manufacturers identify faulty components or design flaws before mass production.

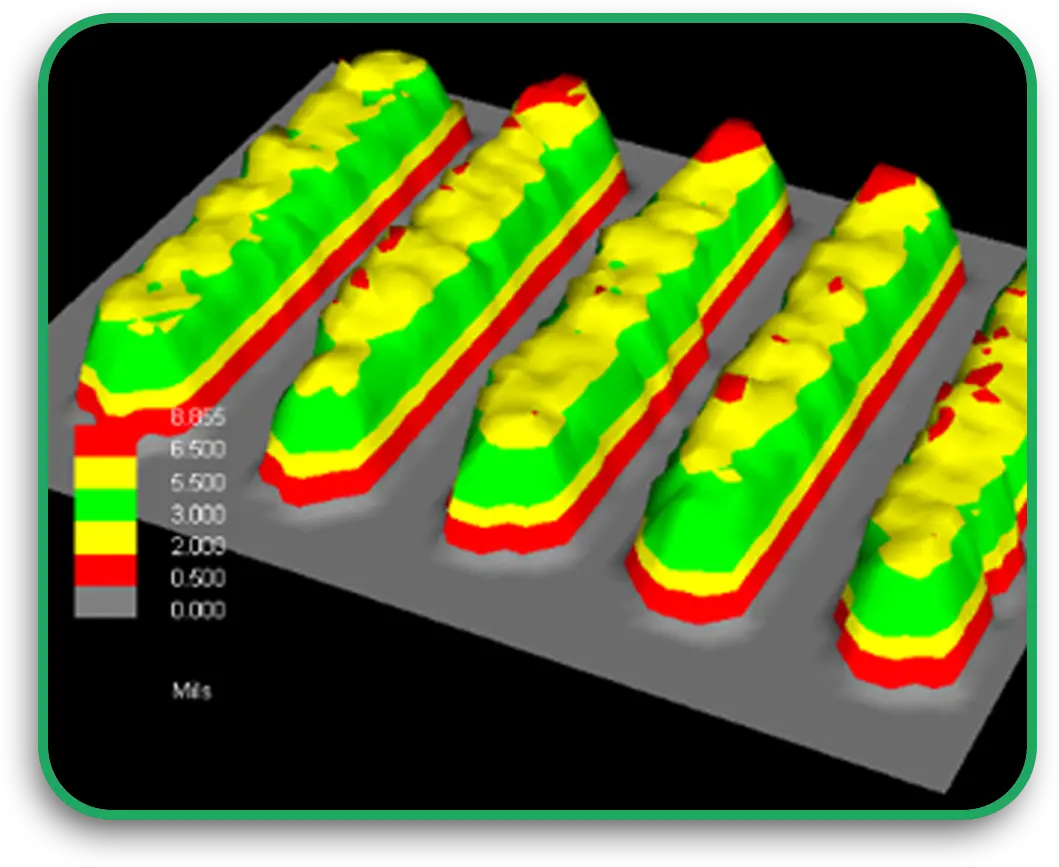

5. Solder Paste Inspection (SPI) for SMT Assembly

For Surface Mount Technology (SMT) PCBs, solder paste application is a critical step. Any issues with paste alignment, thickness, or consistency can lead to poor solder joints and defective boards.

Solder Paste Inspection (SPI) uses 3D imaging and laser scanning to analyze solder paste deposits before components are placed.

Why SPI is Important:

• Reduces soldering defects such as bridging or missing paste
• Ensures even distribution of solder paste
• Improves yield rates and reduces rework

6. Electrical Testing for Short Circuits and Opens

To verify the electrical continuity of a PCB, electrical testing methods such as bed-of-nails testing or flying probe testing are used.

Key Electrical Testing Benefits:

• Identifies open circuits, short circuits, and incorrect component values
• Ensures power integrity across multiple layers
• Prevents latent failures caused by weak connections

Best Practices for High-Quality PCB Inspection

To maximize the effectiveness of inspection techniques, PCB assemblers should follow these best practices:

1. Integrate Multiple Inspection Methods

Using a combination of AOI, X-ray, functional testing, and manual inspection ensures comprehensive defect detection.

2. Implement Real-Time Quality Control

Tracking defects in real-time allows manufacturers to identify process issues early and reduce waste.

3. Use Industry Standards for PCB Inspection

Following IPC-A-610 and ISO 9001 standards ensures that PCBs meet global quality requirements.

4. Train Technicians for Manual Inspection

Even with automated tools, skilled technicians play a vital role in verifying and troubleshooting defects.

5. Optimize Design for Manufacturability (DFM)

By designing PCBs for easier assembly and inspection, manufacturers can reduce errors and improve efficiency.

Why PCB Inspection is Essential for Your Project

Investing in high-quality PCB inspection leads to:

• Better product reliability
• Fewer defects and reduced rework
• Lower production costs
• Faster time-to-market

If you need reliable PCB fabrication and assembly, partnering with an experienced PCB assembler is key.

Conclusion

PCB inspection is a critical step in ensuring high-quality circuit board assembly. From AOI PCB inspection to X-ray analysis and functional testing, manufacturers use a variety of techniques to detect defects and improve reliability.By integrating advanced inspection technologies and following best practices, PCB assemblers can deliver superior-quality products that meet industry standards.

Need High-Quality PCB Manufacturing?

At PCB Runners, we specialize in precision PCB fabrication and assembly with rigorous inspection processes to ensure flawless performance. Contact us today for a free quote and experience top-tier PCB manufacturing services.

Frequently Asked Questions (FAQs)

1. What is AOI in PCB inspection?
AOI (Automated Optical Inspection) is a non-contact inspection method that uses cameras and image processing software to detect soldering defects, missing components, and alignment issues on PCBs.

2. Why is X-ray inspection important for PCB assembly?
X-ray inspection is used to detect hidden defects such as voids, cracks, and poor solder joints, especially in multi-layer PCBs and BGAs.

3. How does functional testing improve PCB quality?
Functional testing simulates real-world operating conditions to ensure the PCB performs as expected, identifying faulty components and circuit errors.

4. What are the most common PCB defects?
Common defects include solder bridges, cold joints, missing components, short circuits, and open traces.

5. How can I ensure my PCBs are high quality?
Partnering with a trusted PCB assembler, using advanced inspection methods, and following DFM principles will ensure high-quality PCBs.

The demand for high-quality PCB fabrication and assembly is growing rapidly as modern electronics become more complex and compact. Whether you’re designing consumer gadgets, medical devices, or industrial equipment, the circuit board assembly process plays a crucial role in ensuring the reliability and performance of your product.

Choosing the right PCB assembly manufacturer and using the best PCB assembly services can make a significant difference in product quality, durability, and efficiency. In this guide, we will explore the PCB fabrication process, assembly techniques, and key considerations to achieve high-quality PCB printed circuit board assembly.

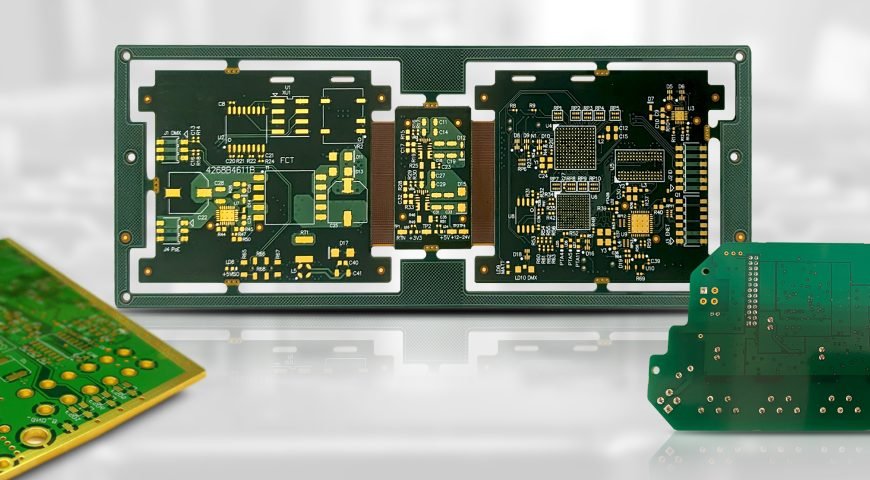

What is PCB Fabrication?

PCB fabrication is the process of manufacturing printed circuit boards from raw materials like copper, fiberglass, and solder mask. This process involves multiple steps, including designing the board, etching copper traces, drilling holes, and applying protective coatings.

A well-fabricated PCB ensures optimal electrical performance, mechanical strength, and thermal management. The fabrication process must be precise, as even a small error can impact the entire circuit’s functionality.

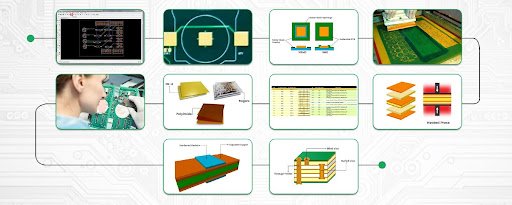

Key Steps in PCB Fabrication

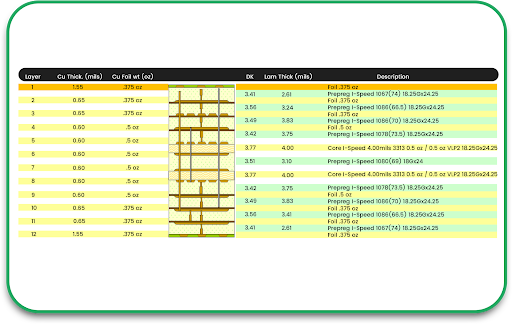

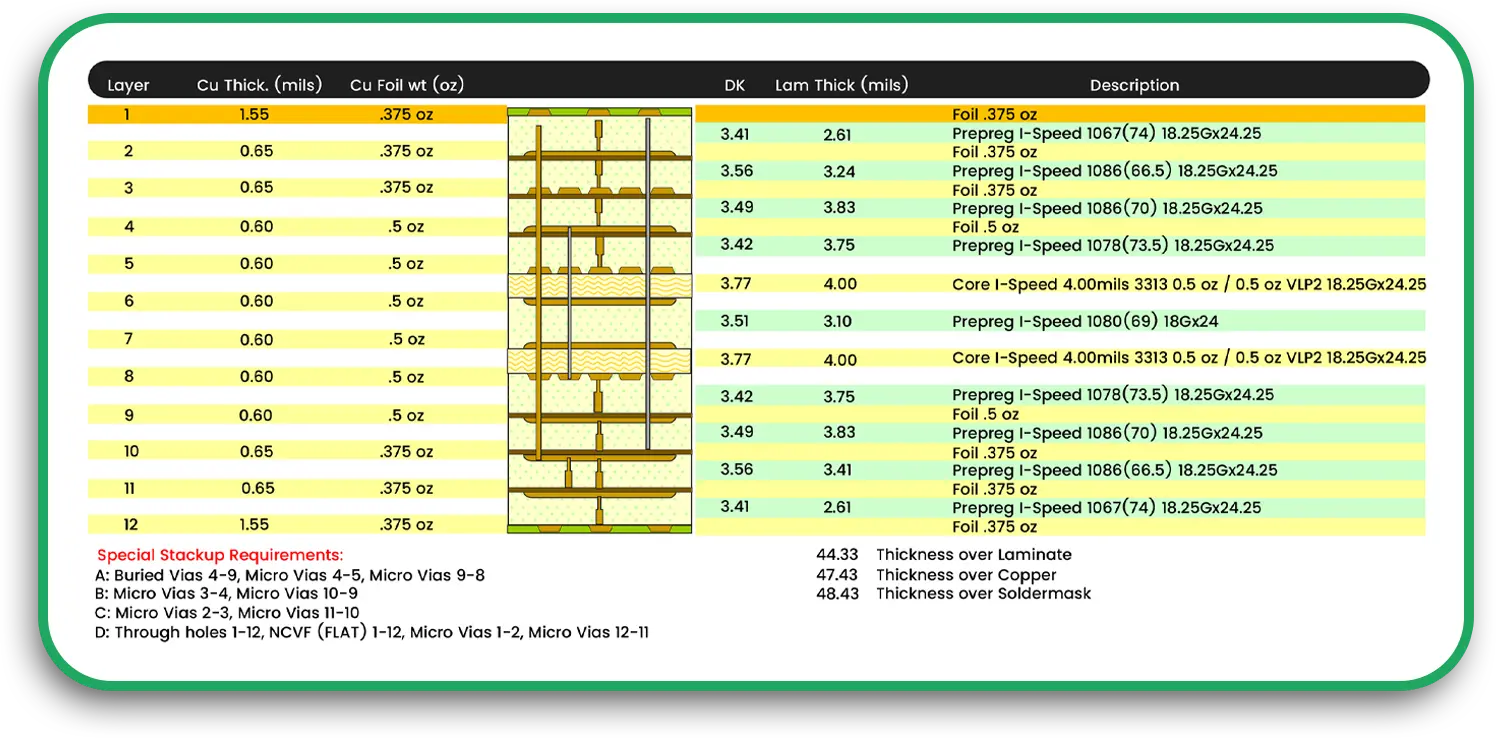

1. PCB Design and Layout

Before fabrication begins, engineers use PCB design software to create the board layout. This includes defining trace widths, hole placements, and layer stack-ups.

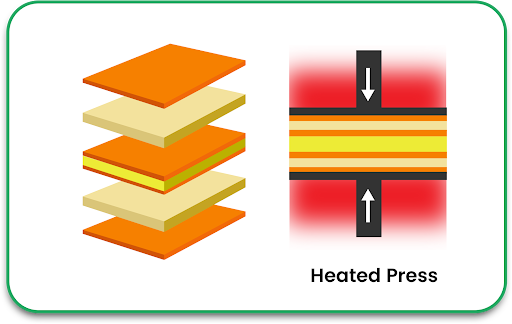

2. Preparing the Substrate

The board’s core material, typically FR-4 (fiberglass-reinforced epoxy), polyimide, or metal, is selected based on application requirements.

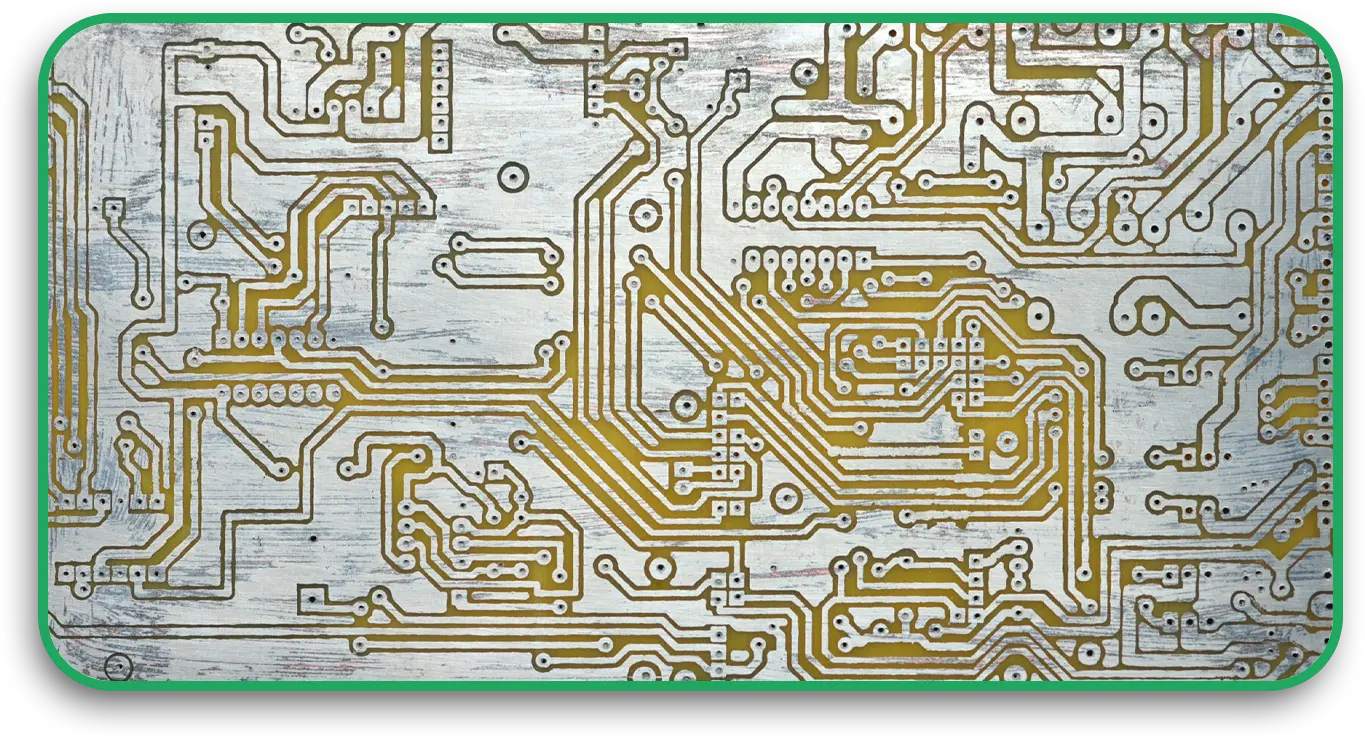

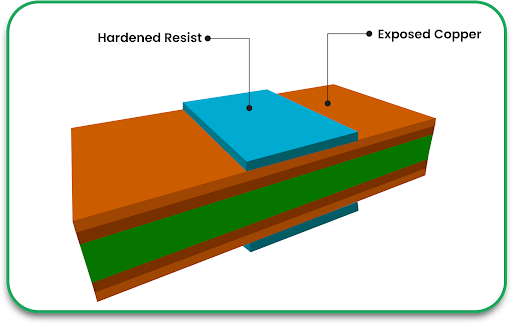

3. Copper Cladding and Etching

A thin copper layer is laminated onto the board, and unwanted copper is etched away to form conductive pathways.

4. Drilling Holes

Holes are drilled for mounting components and vias, which connect different layers in multilayer PCBs.

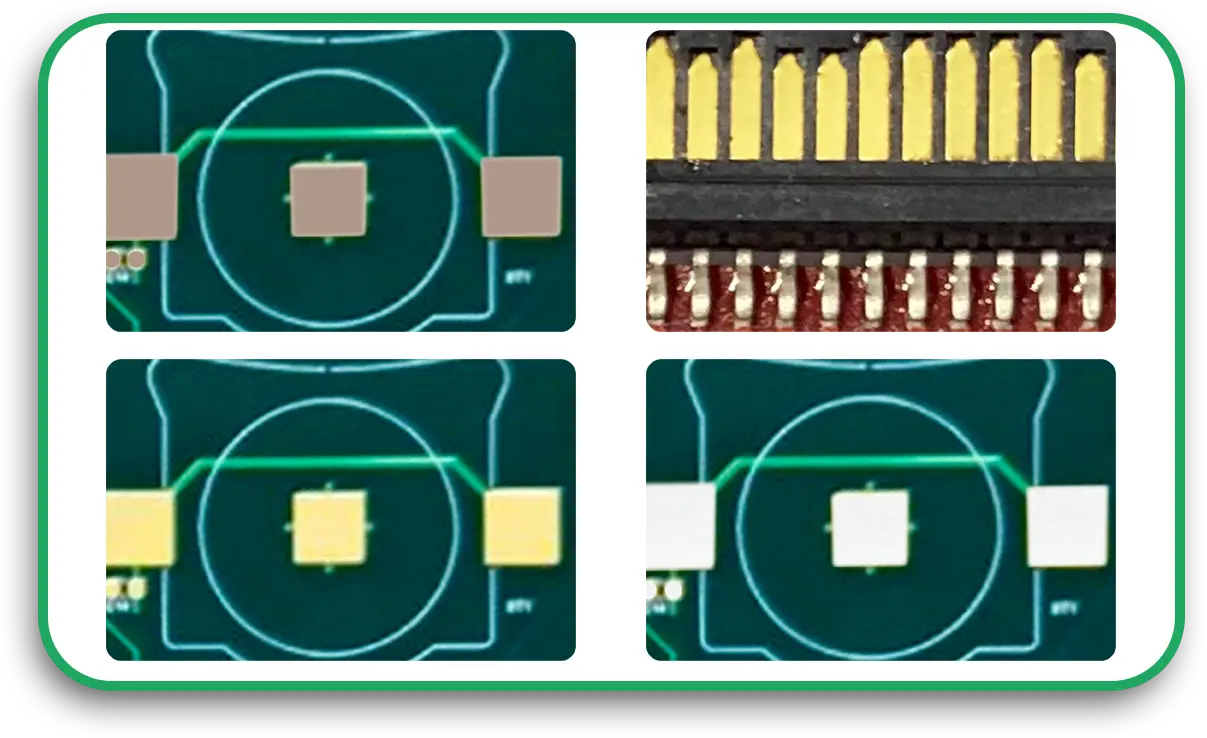

5. Plating and Surface Finishing

Copper-plated vias and surface finishes, such as ENIG (Electroless Nickel Immersion Gold) or HASL (Hot Air Solder Leveling), improve conductivity and durability.

6. Solder Mask and Silkscreen Application

The solder mask protects copper traces, while the silkscreen layer adds component labels and reference marks.

7. Final Inspection and Testing

Each PCB undergoes electrical and optical testing to ensure it meets design specifications before moving to circuit board assembly.

What is PCB Assembly?

PCB assembly (PCBA) is the process of mounting and soldering electronic components onto a fabricated circuit board. This step is critical in turning a bare PCB into a fully functional electronic circuit.

A reliable PCB assembly manufacturer follows strict quality control procedures to prevent soldering defects, misaligned components, or poor electrical connections.

Key PCB Assembly Methods

1. Surface Mount Technology (SMT)

• Uses automated machines to place small components onto the board’s surface.
• Ideal for compact, high-density designs.
• Faster and more cost-effective than traditional through-hole assembly.

2. Through-Hole Technology (THT)

• Components with leads are inserted into pre-drilled holes and soldered in place.
• Provides stronger mechanical bonds, making it ideal for high-stress environments.

3. Mixed Technology Assembly

• Combines SMT and THT for optimal performance and reliability.
• Used in aerospace, medical, and industrial applications requiring both miniaturisation and durability.

Essential Factors for High-Quality PCB Assembly

1. Choosing the Right PCB Assembly Manufacturer

A trusted PCB assembly manufacturer ensures precision, reliability, and compliance with industry standards. Look for certifications such as ISO 9001, IPC-A-610, and RoHS compliance.

2. Component Sourcing and Quality Control

Using high-quality, genuine components prevents failures and ensures long-term reliability.

3. Optimised PCB Design for Assembly (DFA)

Designing for efficient assembly reduces defects and improves yield. Consider factors such as proper pad sizing, component spacing, and thermal relief.

4. Effective Soldering Techniques

Reliable PCB assembly services use reflow soldering for SMT components and wave soldering for through-hole components to create strong electrical connections.

5. Testing and Inspection

• Automated Optical Inspection (AOI) detects misalignments and solder defects.
• X-ray Inspection checks hidden solder joints in BGA and high-density PCBs.
• Functional Testing ensures the assembled PCB performs as expected.

Benefits of High-Quality PCB Assembly

1. Enhanced Reliability

Proper PCB fabrication and assembly techniques prevent short circuits, solder cracks, and component failures, ensuring long-term durability.

2. Improved Electrical Performance

Precision assembly ensures optimal signal integrity, reducing noise and interference in high-speed applications.

3. Faster Time-to-Market

Efficient PCB assembly services streamline production and reduce design revisions, accelerating product development.

4. Cost Savings

Minimising assembly defects reduces rework and production waste, leading to lower manufacturing costs.

5. Scalability for Mass Production

Reliable PCB assembly manufacturers can handle high-volume orders while maintaining consistency and quality.

Latest Innovations in PCB Fabrication and Assembly

1. High-Density Interconnect (HDI) PCBs

HDI PCBs feature smaller traces, microvias, and stacked layers, allowing for compact and high-performance circuit designs.

2. Flexible and Rigid-Flex PCBs

Flexible PCBs improve durability in wearable devices, aerospace, and automotive applications.

3. Lead-Free Soldering

With growing environmental concerns, manufacturers are shifting to RoHS-compliant, lead-free soldering techniques.

4. AI-Driven Quality Control

Artificial intelligence (AI) is improving defect detection and process optimisation in modern PCB assembly lines.

5. Automated Assembly for Faster Production

Fully automated circuit board assembly increases efficiency and reduces human errors, improving overall yield.

Conclusion

High-quality PCB fabrication and assembly is essential for developing reliable, high-performance electronics. From advanced PCB fabrication techniques to precise assembly methods, every step plays a vital role in ensuring product success.By partnering with a trusted PCB assembly manufacturer, you can achieve faster production, improved quality, and cost-effective solutions for your electronic projects.

Looking for Expert PCB Fabrication and Assembly?

At PCB Runners, we specialise in custom PCB fabrication, circuit board assembly, and high-reliability PCB solutions. Contact us today to discuss your PCB assembly needs and get a free quote.

Frequently Asked Questions (FAQs)

1. What is the difference between PCB fabrication and PCB assembly?
PCB fabrication is the process of manufacturing the bare board, while PCB assembly involves mounting electronic components onto the fabricated board.

2. What factors affect PCB assembly quality?
Key factors include design optimisation, component quality, precise soldering, and thorough testing procedures.

3. How do I choose the best PCB assembly manufacturer?
Look for certifications, industry experience, component sourcing capabilities, and quality control measures when selecting a PCB assembly manufacturer.

4. What are the advantages of multilayer PCBs in assembly?
Multilayer PCBs offer higher circuit density, improved signal integrity, and better heat dissipation, making them ideal for advanced electronic applications.

5. Why is functional testing important in PCB assembly?
Functional testing ensures the assembled PCB works as intended, preventing failures in real-world applications.

Wearable technology is transforming the way we interact with electronics, from smartwatches and fitness trackers to medical monitoring devices and augmented reality glasses. These devices require Multilayer PCBs that are lightweight, compact, and durable while maintaining excellent electrical performance. The assembly of a Custom Printed Circuit Board for wearables involves specialized techniques to ensure flexibility, reliability, and power efficiency.

As demand for wearable PCB solutions continues to grow, engineers and manufacturers must adopt the best Circuit Board Assembly practices to create high-performance wearable electronic devices. This guide covers essential electronic PCB assembly techniques to improve functionality, durability, and overall performance.

Key Requirements for Wearable PCBs

1. Compact and Lightweight Design

Wearable devices have strict size and weight limitations. PCBs must be thin, flexible, and designed for minimal power consumption. Multilayer PCBs are commonly used to maximize functionality while maintaining a compact footprint.

2. Flexibility and Durability

Since wearables experience constant movement, wearable PCBs must withstand bending and flexing without losing functionality. Flexible PCBs or Rigid-Flex PCBs offer improved durability by combining rigid and flexible layers into a single board.

3. Efficient Power Management

Wearable devices operate on small batteries, requiring PCBs with low power consumption. Efficient Circuit Board Assembly ensures minimal energy loss and optimized battery life.

4. Reliable Electronic Component Placement

Properly placing and soldering electronic components PCB is critical for the durability of wearable electronics. Using advanced electronic PCB assembly methods like Surface Mount Technology (SMT) improves accuracy and reliability.

PCB Assembly Techniques for Wearable Electronics

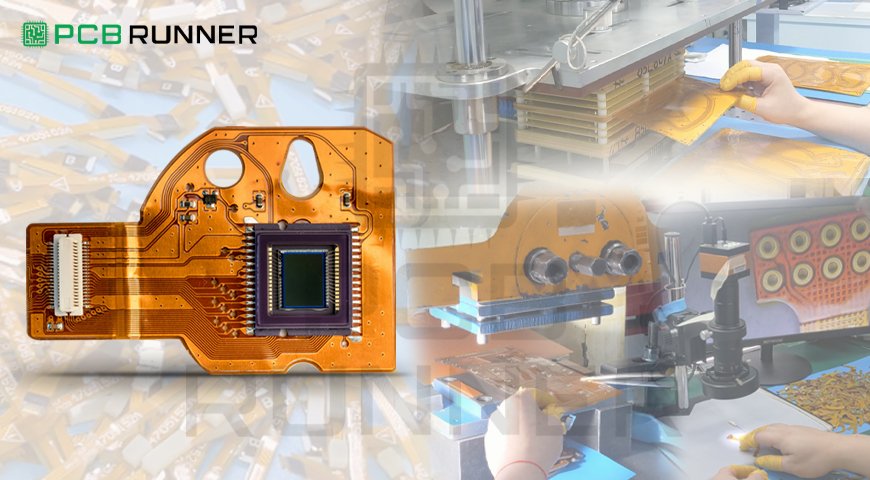

1. Using Flexible PCBs

Unlike traditional rigid PCBs, wearable PCB designs often incorporate flexible PCBs to accommodate movement. These boards allow wearable devices to fit comfortably on the body without breaking or losing electrical connectivity.

Advantages of Flexible PCBs:

• Lightweight and space-saving
• Resistant to bending and flexing
• Ideal for compact wearable electronic devices

2. Rigid-Flex PCB Technology

For applications requiring both durability and flexibility, Rigid-Flex PCBs combine stiff and flexible sections into a single Multilayer PCB. These hybrid boards reduce the need for additional connectors and cables, improving reliability.

Benefits of Rigid-Flex PCBs:

• Enhanced structural integrity
• Reduced component failures
• Ideal for fitness trackers and medical wearables

3. Surface Mount Technology (SMT) Assembly

SMT is the preferred method for electronic PCB assembly in wearable electronics. It allows for the placement of miniaturized components directly onto the PCB surface, reducing weight and improving electrical performance.

Why SMT is Ideal for Wearable PCBs:

• Supports high-density component placement
• Improves electrical performance and signal integrity
• Reduces the overall weight of the PCB

4. Low-Power Design Techniques

Since wearables rely on battery power, Custom Printed Circuit Board designs must incorporate low-power consumption techniques.

Power Optimization Methods:

• Use energy-efficient microcontrollers and sensors
• Optimize power distribution with embedded passive components \
• Implement low-power communication protocols like Bluetooth Low Energy (BLE)

5. Miniaturized Component Placement

As wearable devices become smaller, PCBs must accommodate electronic components PCB with ultra-fine pitches. High-precision Circuit Board Assembly techniques such as Microvia Technology and High-Density Interconnect (HDI) PCBs enable better performance in compact designs.

Advantages of Miniaturized Components:

• Maximizes space efficiency
• Improves signal transmission speed
• Enhances device aesthetics with slimmer designs
• Material Considerations for Wearable PCB Assembly

Selecting the right materials is crucial for manufacturing durable wearable electronic devices:

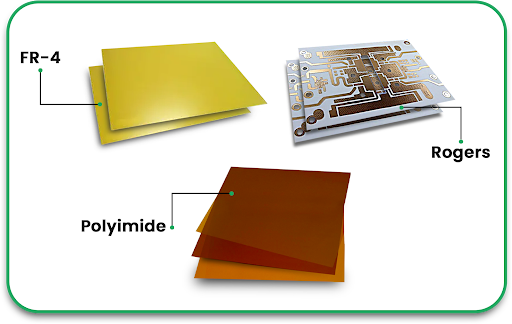

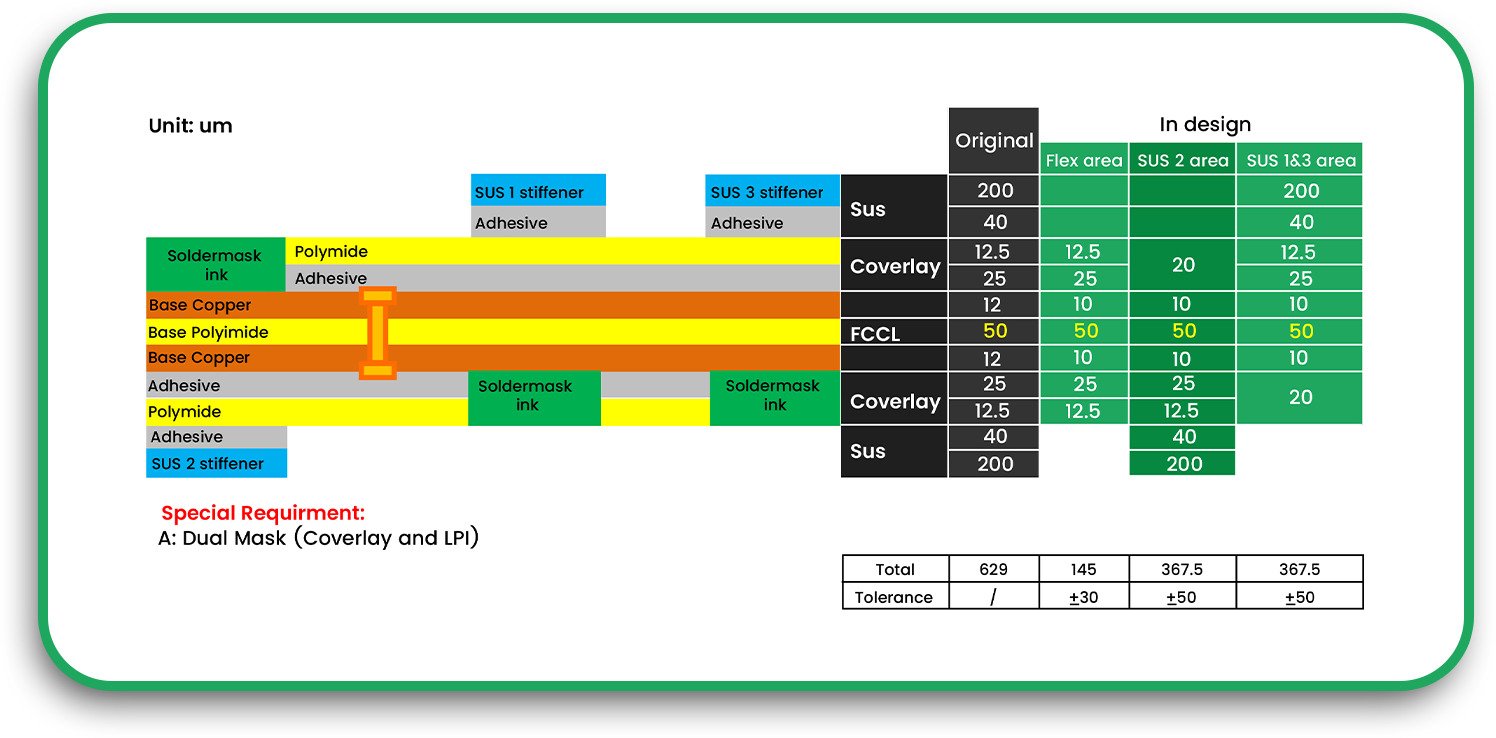

1. Substrate Materials

Wearable PCBs often use polyimide or liquid crystal polymer (LCP) instead of traditional FR-4. These materials provide flexibility, heat resistance, and improved electrical performance.

Common Substrate Choices:

• Polyimide: High flexibility and heat resistance
• LCP: Low moisture absorption and excellent signal integrity
• FR-4: Suitable for rigid sections of hybrid PCBs

2. Conductive Materials

To ensure optimal electrical performance, wearable PCBs use copper foils with different thickness levels based on current requirements.

Common Conductive Layers:

• Standard copper foils for low-power applications
• Heavy copper PCB layers for power-intensive sections

3. Protective Coatings

Wearable PCBs require protective coatings to safeguard components from sweat, moisture, and physical impact.

Types of Protective Coatings:

• Conformal Coatings: Protect against dust, moisture, and mechanical stress
• Encapsulation (Potting): Provides additional insulation and protection
• Solder Mask Material: Prevents solder bridging and oxidation

Challenges in Wearable PCB Assembly

1. Heat Dissipation in Compact Designs

Wearable devices have limited space for heat sinks. PCB manufacturers use thermal vias and graphene-based heat spreaders to dissipate heat efficiently.

2. Component Durability

Since wearables are constantly exposed to motion, electronic components PCB must withstand vibrations and impacts. Using reinforced Circuit Board Assembly techniques helps improve resilience.

3. Signal Integrity and Interference

High-speed data transmission in wearables requires careful PCB layout design. Shielding techniques and High-Density Interconnect (HDI) PCBs help minimize signal loss and electromagnetic interference (EMI).

Future Trends in Wearable PCB Assembly

1. Stretchable and Biocompatible PCBs

New materials such as stretchable polymers and biocompatible substrates are expanding the possibilities of wearable electronics, particularly in medical applications.

2. Printed Electronics and Flexible Hybrid Electronics (FHE)

Innovations in printed circuit technologies enable cost-effective, lightweight, and customizable wearable PCBs for next-generation smart devices.

3. AI-Driven PCB Assembly Automation

AI-powered electronic PCB assembly is enhancing manufacturing precision, reducing defects, and improving yield rates in high-performance wearable electronics.

Conclusion

High-performance wearable PCB design requires a combination of advanced materials, compact layouts, and precise electronic PCB assembly techniques. By leveraging Multilayer PCBs, Rigid-Flex PCBs, and low-power design methods, manufacturers can create reliable wearable electronic devices that perform well in real-world conditions. For engineers and designers looking to optimize Circuit Board Assembly for wearables, working with experienced PCB manufacturers ensures high-quality fabrication, enhanced durability, and seamless integration of miniaturized components.

Need High-Quality Wearable PCBs?

PCB Runners specializes in Custom Printed Circuit Board solutions for wearable technology. Whether you need Multilayer PCBs, Flex and Rigid PCBs, or specialized Circuit Board Assembly, our expert team is ready to help. Contact us today to discuss your project needs.

Frequently Asked Questions (FAQs)

1. What type of PCB is best for wearable electronics?
Flexible PCBs and Rigid-Flex PCBs are ideal for wearable devices because they allow movement without breaking.

2. Why is low power consumption important in wearable PCBs?
Wearables run on small batteries, so low-power PCB designs extend battery life and improve efficiency.

3. How do you protect wearable PCBs from moisture?
Protective coatings like conformal coatings and encapsulation shield PCBs from sweat and environmental exposure.

4. What is the best soldering method for small wearable PCBs?
Surface Mount Technology (SMT) is preferred for its high precision and ability to handle miniaturized components.

5. Where can I get a custom wearable PCB manufactured?
PCB Runners offers professional wearable PCB manufacturing and assembly services with fast turnaround times. Contact us for a quote today.
