Harnessing the Power of Effective PCB Routing: Strategies, Best Practices, and Future Trends

In the realm of printed circuit boards, a rigid circuit board is the most common type of board. They are still widely employed in many everyday consumer products and are still quite popular today.  Because of its unyielding construction, rigid PCBs are a type of circuit board that cannot be bent or curved. They consist of multiple layers, adhered to one another by heat and glue, including a substrate layer, a copper layer, a solder mask layer, and a silkscreen layer.  While certain circuit boards are exclusively single-, double-, or multilayered, rigid PCBs can be any of these depending on the specifications. But once they are made, there is no turning back on them.

Construction of Rigid PCBs

Typically, rigid PCBs are made up of several layers, each of which consists of a solder mask, conductive copper layer, and substrate material. The substrate material, which is typically fiberglass, offers insulation and stiffness. Circuit traces are created by etching the conductive copper layer, which links different components. The solder mask layer aids in soldering components onto the board and shields the copper traces from oxidation.

The Importance of Effective Rigid PCB Routing

In the field of electronics, the functionality and dependability of devices are directly impacted by the quality of PCB routing. Several implications of efficient PCB routing methods are as follows:

Improving Circuit Performance and Stability:
The performance and stability of electronic circuits are greatly influenced by the efficient routing of printed circuit boards. Signals can go between components as effectively as possible with well-designed routing, reducing delays and distortions. This in turn enhances the circuit’s general speed and responsiveness.
PCB layout and signal integrity are intimately related. Signal integrity is the foundation of dependable electronics. Accurate information delivery and the preservation of electrical signal quality are made possible by properly routed traces, which also serve to prevent distortions.

This is particularly important for high-speed circuits because even minute delays or variations can cause problems.
Preventing Crosstalk and Interference: Crosstalk and electromagnetic interference (EMI) are reduced via efficient routing. Unwanted signal coupling is minimized by making sure that traces are properly spaced and routed away from sensitive components. This protects the quality of the transmission and avoids unintentional interactions that can  compromise functionality.

Maintaining Reliability:
Well-designed electronics are characterized by their reliability. Inadequate power distribution, noise, and signal reflections from poor routing techniques can cause unstable behavior or even failure. A PCB that has been painstakingly routed guarantees that components receive consistent power, which lowers the possibility of erratic performance or early component wear.

Implications of Inadequate Routing

Signal Distortion and Delay:
Signal distortion and delays can be caused by poor routing. Signals may have timing problems and changed waveforms due to impedance mismatches, reflections, or long transmission distances. This may result in a breakdown in component communication and impair the functionality of the circuit as a whole.

Noise and Interference:
Inadequate routing leaves traces vulnerable to outside noise or interference from nearby components. This interference has the potential to cause data transmission problems by adding noise to signals and lowering their quality.

Decreased Reliability:
Device reliability is decreased when circuits with inadequate routing are more likely to malfunction. Unexpected voltage drops, problems with heat dissipation, or weakened connections can cause malfunctions or early device failure in parts.

While ineffective routing can lead to several problems that jeopardize the circuit’s functioning and long-term dependability, effective routing guarantees optimal performance, signal integrity, and stability. To ensure that the electronics they design and engineer meet the highest reliability standards while maintaining optimal performance, they must become proficient in PCB routing.



Rigid PCB Routing best practices

Correct routing of your board is one of the most important parts of the printed circuit board (PCB) design and layout process. Adopting appropriate PCB routing best practices will help you cut down on problems later on in the production process and save time.  It might be difficult for novices to navigate the procedure because there are so many different routing tools and approaches available. When you begin routing your PCB, bear the following points in mind.

AVOID DEPENDING ON YOUR AUTOROUTE

An autoroute tool is likely something you’ve encountered if you’ve ever used PCB design software. When using this tool for PCB layout, it could initially appear like a time-saving and practical option. But you should never depend just on this instrument. While this program is useful for novices learning how to route a PCB, routing the board yourself will yield the best results.  Furthermore, auto-routing doesn’t always yield precise results. Using the tool frequently leads to common symmetry errors, which might cause quality concerns and additional routing challenges on your end. It is recommended to use this tool in conjunction with manual routing rather than as a stand-alone fix.

GO ABOVE A SOLID GROUND PLANE WITH HIGH-SPEED SIGNALS

It is imperative to route via a stable ground plane when working with high-speed signals. By doing this, you can make sure that the trace connection holds strong and that, after the PCB is completed, no other issues arise.

Another way to lessen the likelihood of impedance—which is likely to happen with two separate ground planes—is to route PCBs over a solid plane. Connecting trace components to the appropriate locations on the board is essentially made easier by adhering to this best practice.

SET UP VIAS IN A GRID TO PREVENT HOT SPOTTING

PCB routing relies heavily on the via positioning. Hot spots are areas with significantly higher current densities due to improper route placement. Severe issues may arise from an increase in heat in a particular area of the board.

Placing the vias into a grid to spread them out across the board’s area is the easiest strategy to avoid these hot spots. You should give the vias at least 15 millimeters of distance apart for optimal results.

 USE A TRACE BEND OF 135 DEGREES

When routing your printed circuit boards, try to stay away from using a 90-degree trace bend. The trace width produced by this angle is less than the advised minimum. Although this might not seem like a big deal, it might cause several issues with the PCB’s final layout. Additionally, a 90-degree trace bend’s small outside edge acts as a heat trap that might result in shorts. Route tracing bends at 135 degrees is the optimal angle. This broader perspective will guarantee that your board is laid out correctly and prevent short problems.  To prevent crosstalk, increase the distance between the tracks. The distance between traces is another important consideration. A signal accumulation between two traces in a single location of the board is prevented by proper spacing. Crosstalk is the term for the increase in activity brought on by incorrect trace spacing. When there is crosstalk, one trace signal drowns out the other. Because of this, after PCB routing is complete, there is a possibility of circuit shorts.  To prevent this kind of problem, it’s best to include the proper amount of gap between traces while routing your PCB.

 AVOID HOT SPOTS BY USING DAISY CHAIN ROUTING

Daisy chaining is another method of avoiding hot spots in PCB routing. One method of routing that connects many locations on the circuit board is called daisy chaining. Long stub traces, which frequently result in issues with the signal being transferred, are avoided with the aid of this kind of PCB routing.

Daisy chaining is a useful routing technique to employ when attempting to prevent hot spot problems since it guarantees adequate space for the signal to pass through.

 AVOID RUNNING SIGNALS OVER SPLIT PLANES

The return signal path between traces must be considered while routing over two distinct reference planes. Verify that the signal can travel the return path successfully. Crosstalk can also be more likely when routing across a split plane, which can result in additional trace signal problems.

 ELIMINATE NOISE BY DIVIDING DIGITAL AND ANALOG GROUND PLANES

The analog and digital ground planes should be kept apart to facilitate the identification of which components need to be connected to which plane. Stated differently, keeping these two portions apart guarantees that the corresponding digital and analog components are connected correctly. Isolating the two signals, preventing interference, and lowering noise are the main goals of separating these two parts.

 PARTITION THE LAYOUTS VIRTUALLY INTO DIGITAL AND ANALOGOUS GROUNDS

Routing a PCB by virtually dividing its digital and analog components is another useful best practice. There is a virtual line that divides the planes instead of a physical one. This offers a simple method for seeing the links between each of the corresponding planes. This virtual line must be taken into account when routing the PCB to distinguish between the digital and analog traces. Maintaining the distinct signals of the PCB on the right side of the board may be facilitated by essentially dividing the two grounds.

 USE THE APPROPRIATE TRACE WIDTH TO AVOID BROKEN CONNECTIONS

When routing your PCB, knowing the appropriate trace width will help you avoid wasting a lot of time and effort trying to fix issues. Excessive heat buildup throughout the board may result from the amount of energy flowing through the traces if they are not wide enough. The link that runs between the traces may fail as a result of this temperature rise.
Before PCB routing, accurately determining your trace width can help lower the possibility of overheating and faulty connections.

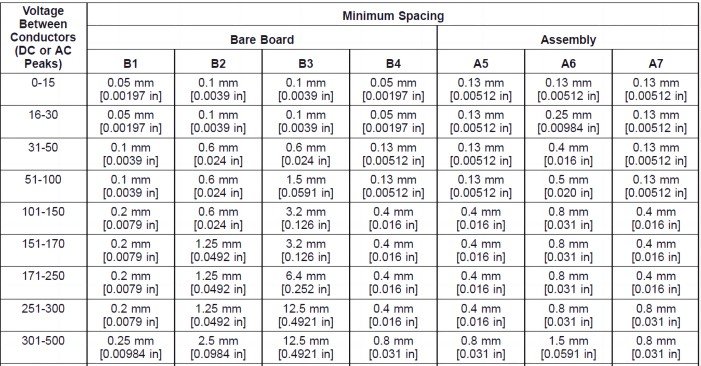

The PCB Trace Spacing Regulation Standards.

Various industry groups and standards agencies determine the regulations governing PCB trace spacing. These standards make sure that, to avoid signal interference, electrical leakage, and other problems, the distance between traces on a printed circuit board (PCB) satisfies specific specifications. The following significant factors determine how far apart traces are spaced on a printed circuit board (PCB):

The PCB Trace Spacing Regulation Standards.

Rules for Trace Spacing Design

The following design guidelines are commonly applied when determining PCB trace spacing:

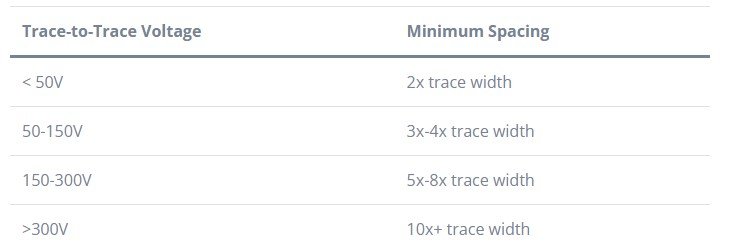

Considering Voltage

Greater distances between higher voltage traces are necessary to avoid arcing. Standard design guidelines:

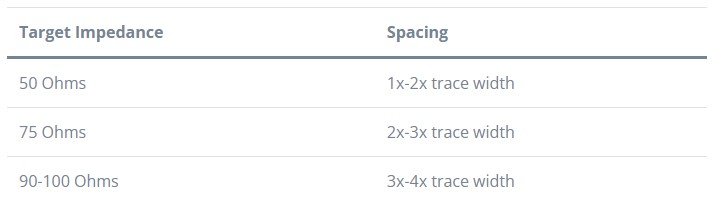

Considering Impedance

A wider distance increases impedance by lowering capacitive coupling. As an illustration:

a screenshot of a computer

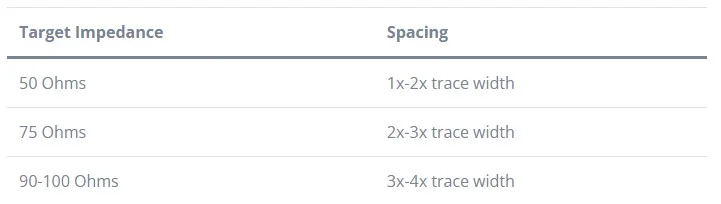

Predicted on the Prevention of Crosstalk

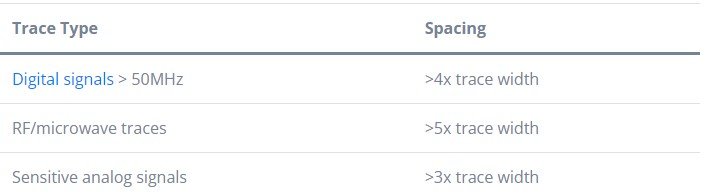

Noise coupling is reduced by greater distances between high-speed digital or analog traces:

a screenshot of a website

a screenshot of a computer

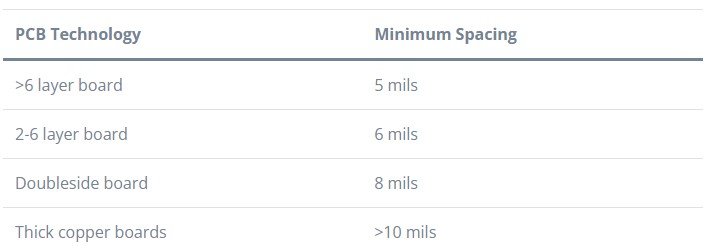

Manufacturability-based
Respect tolerances and capacities of the fabrication process:

a screenshot of a computer



Margin of Safety

Margin addition shields shorts from process unpredictability:

10–20% additional margin space

Greater leeway in prototype compared to production  Reliable trace isolation is ensured through the careful use of suitable design criteria.

Rules for Trace Width Design

Trace width selection is guided by similar considerations:

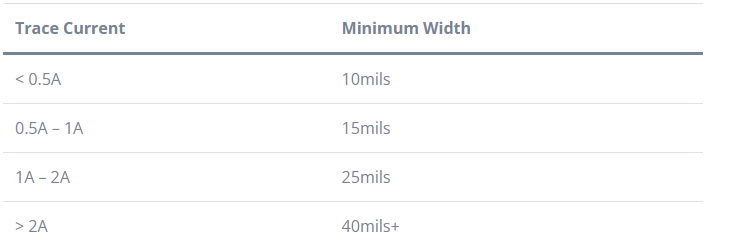

Higher current handling is possible with thinner traces based on current:

a screenshot of a computer



Based on thermal rise restrictions, additional widening might be required.

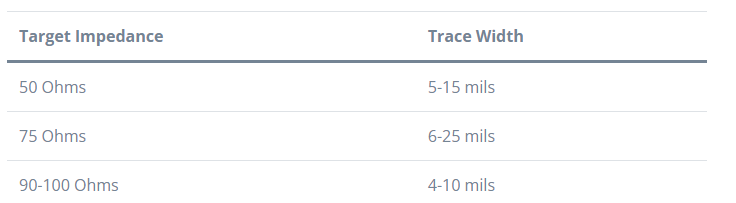

Considering Impedance
Greater impedance results from narrower traces:

Considering Impedance

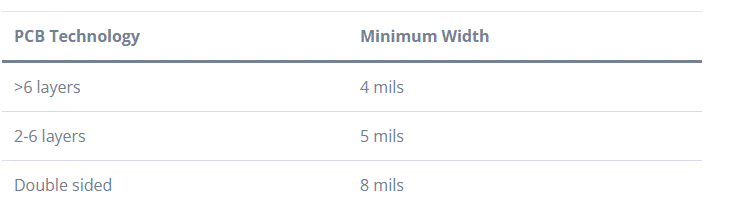

Manufacturability-based
Compare the trace width to the manufacturing capacity:

Manufacturability-based

PCB Design Guidelines:

Reducing Interference

It is PCBs’ worst enemy. Don’t worry; we’ll provide you with design principles to lessen this threat. Adopt these strategies to produce high-performing, crosstalk-free devices.

Boost the distance between traces.

 More space between traces prevents inductive and capacitive coupling. Give your traces some breathing room, and the chatter will decrease.

Make use of ground planes

Capacitive coupling is decreased by separating signal traces with a ground plane. It also minimizes inductive coupling by giving currents a return path. Your allies are the ground aircraft.  Make use of differential signaling. Send complimentary signals at the same time. Signal integrity is improved via the cancellation of noise and interference.

Apply impedance control.

 Match the impedance of traces to eliminate reflections and distortions. Crucial for high-speed designs, impedance control maintains signal quality.

Shield your traces.

Guard traces, copper planes, and shielding materials protect against interference. Safeguard your traces, and let them thrive.

Optimize trace routing.

Route traces at right angles and stagger them on different layers. Utilize vias for transitions between layers.

Mind the trace length.

Keep trace lengths as short as possible. Less length equals less chance for crosstalk.

Consider trace width.

Wider traces reduce inductive coupling. Experiment with trace widths to find the ideal balance.

Think about Board Edge Clearance

Another factor to consider during panel construction is board edge clearance. It prevents harm by acting as a shield for the copper and board components.

Design for Manufacturability: Optimizing Depanelization

Release in Tabs for Breakouts

There are two methods for depanelizing PCBs: breakout tabs, which create tiny tabs in between the PCB designs. There is a gap on the panel between these tabs. There should be 0.125 inches of space between the copper and the components and the tab.

Clearance  in V-grooves

Cutting the V-grooves, which are pre-scored V-shaped marks positioned beside the board edges, is an additional technique for depanelization. The components in V-grooves should have a 0.05-inch clearance, and the copper should have 0.02 inches of clearance. A delicate art, efficient PCB routing strikes a balance between electrical needs and physical limitations.  Understanding the function of routing and how to get the best outcomes requires knowing this. Routing, or “tracking,” the board involves skill and accuracy, from using an auto-router carefully to making sure high-speed signal routing is applied appropriately.

Employ Auto-Router Moderation

Even though auto-routers can greatly expedite the routing process, it’s not always a good idea to rely just on them. Even though they are automated, auto-routers may not always consider the minute details of certain board designs. It is a tool that should be used in addition to human adjustments, not in instead of them.  When used sparingly in conjunction with human supervision, auto-routers can improve routing efficiency and avert certain problems at the design stage that could later need PCB troubleshooting.

Employ High-Speed Signaling

Higher signal speeds are required by modern electronics, which makes high-speed signal routing essential. This method guarantees the least amount of distortion or interference during signal transmission.  High-speed signal design in electronic circuits requires even trace widths, careful attention to impedance, and sufficient space between traces. By using such meticulous measures, signal integrity problems are avoided during the routing board nets process, and the device operates at peak efficiency.

Expand the Traces You Draw

Making your traces as wide as feasible is one of the fundamental principles of PCB design. In addition to improving performance and lowering the possibility of overheating traces, wider traces can carry higher currents and provide lower resistance.  Additionally, they are less prone to manufacturing problems, which results in fewer errors and disruptions during PCB CNC routing procedures. The fact that larger traces can withstand greater power levels without suffering appreciable energy loss is another important benefit.

Put Daisy Chain Routing Into Practice

Using a technique called Daisy Chain Routing, parts are linked together in a succession, akin to a chain’s links.
When routing buses with several similar components, like RAM chips on a memory module, this technique is quite helpful. The signals are routed through each component in turn rather than going straight from one to the main source or other component. This produces a layout that is more ordered and uncluttered, which is advantageous for boards that have limited space. Particularly in high-speed designs, the signal delay that is added as it moves through each component in the chain must be taken into consideration. The ability to require fewer layers on a network is another benefit of daisy chain routing.

Employ Stack Multilayering

There is a pressing need to reduce size while retaining functionality in the rapidly evolving field of electronics.
This goal is satisfied by the Multilayer Stackup Design method. As the name implies, this method routes more traces in the constrained board area by using many layers of the PCB.  Because interior layers can operate as a shield against external noise sources, this promotes superior electromagnetic interference (EMI) shielding and allows for a more compact design. Separate layers for power, ground, and signals can also greatly enhance the performance of the PCB by lowering crosstalk and enhancing impedance management.

Use the Buried and Blind Vias

In PCB design, vias are crucial because they enable connections between various layers. Conventional through-hole vias pass through the whole board, but they might take up valuable routing space in high-density systems.
Go into Buried and Blind Vias. Blind vias do not go over the whole board; instead, they connect one or more inner layers to an outer layer. Buried vias are entirely contained within the board and connect two or more inner layers.
These tailored vias can significantly reduce potential interference locations and improve signal integrity, all while saving a substantial amount of space. However, using them makes the production process more complicated.

Thus, even if they have obvious benefits, it’s important to balance them against the additional expenses and production difficulties.

Techniques for PCB Thermal Management

You might want to be aware of the best PCB thermal management strategies to avoid excessive heat because it can lower the performance of your PCB. For better heat dissipation, a lot of PCB designers use cooling fans, thermal via arrays, and heat sinks. In their thermal design of PCBs, they might also incorporate heat pipes and thick copper traces.

Consider the following methods for heat dissipation as you strive to optimize your PCB for thermal management:

Warmth Sinks

Metallic vias intended to conduct heat in a PCB are referred to as heat sinks. These metallic vias transport heat from the top layers to the insulating layers, distributing it across the PCB. Heat dissipation is possible because of this technique, which transfers heat to a copper plane. Engineers typically mount heat sinks to parts that produce heat, such as power transistors and switching devices. You should anticipate that these devices will disperse heat across wide areas and transfer heat to the surrounding environment.

Heating Pipes

Heat pipes are a wonderful option for thermal management on a PCB with limited space. Because they aid in passive heat transfer, they are frequently utilized to support tiny electronics. To absorb heat, these pipes include trace amounts of water, acetone, nitrogen, and ammonia. Heat-absorbing fluids condense into vapor, which is then sent through a pipe and into a condenser. The vapor is subsequently condensed by this condenser, returning it to a liquid state.

The heat pipe can then resume the cycle by utilizing the fluid to absorb heat once more once the vapor condenses back into a liquid. Because these pipes have no moving components and can operate quietly and vibration-free, several industries employ them in PCBs. They also don’t need a lot of care and are excellent thermal conductors.

Fans for cooling

Using cooling fans increases PCB thermal resistance in another way. Heat buildup can be avoided by installing a cooling fan to a PCB, which allows hot air to be forced out of the area. Cooling fans help remove heat more thoroughly and quickly, which is why high current power supplies usually utilize them.

Via Arrays for Heat

Using thermal via arrays is one of the primary PCB thermal approaches. These thermal via arrays support the PCB’s appropriate heat conduction. Since proximity allows these devices to dissipate heat more quickly and effectively, they function best when placed close to heat sources. Simple vias and filled and capped vias are the two primary forms of thermal via arrays that are typically seen in PCBs. Since they greatly lower the PCB’s thermal resistance, simple vias are frequently a preferred option.

However, because PCB designers can position filled and capped vias beneath a thermal solder pad, they typically offer better performance. They may draw heat straight from the source thanks to their positioning. However, because PCB designers can position filled and capped vias beneath a thermal solder pad, they typically offer better performance. They may draw heat straight from the source thanks to their positioning. Because of its copper filling, which stops uncontrollably large solder flow and cavities from forming in the via during reflow soldering, a filled and capped via also performs very well at dissipating heat.

Heavy Copper Wires

A PCB’s ability to dissipate heat can be enhanced by thick copper traces because additional copper permits heat to disperse over a greater surface area. Thick copper traces are typically used by businesses for high-power applications. Additionally, thick traces will be used to help cool components with significant thermal dissipation.

Essentials of PCB Routing for the Contemporary Designer:

Differential Pair Routing

When a plane ground offers a return path for the signal to flow, that is known as single-ended routing. Single-ended routing has a few drawbacks, including low signal-to-noise ratio, crosstalk, and electromagnetic interference.  The most exciting aspect of differential pair routing is that interference will exist equally in both signals so that the receiver can cancel out the signal, even though differential routing requires two signals with opposite polarity but the same magnitude to transfer a single data signal from another.

You must pay attention to trace width, spacing, and other performance factors to guarantee the best possible performance from differential pair routing.

Routing  Complex  ICs

You must comprehend the fundamental configuration to comprehend the setup and regulations of routing sophisticated ICs. To accomplish the desired downsizing, compact routing is squeezed into numerous layers to create reduced trace widths for sophisticated integrated circuits. Complex integrated circuit routing is a high-speed constraint that needs a predetermined schematic. In this case, you must make sure that the entire ground path stays extremely close to the receiver that provides you with the least amount of data.

Making Use of AutoRoute

Using automated PCB routing ensures optimal resource utilization with accurate time management. Tracing routing manually gets very difficult when working on a larger board. You can complete the task faster with the auto router’s assistance. Numerous CAD systems and PCB design tools with auto router features are available; they are rather simple to use and produce excellent results.

If you are persuaded to get an auto-router, you must comprehend and become familiar with the crucial guidelines and limitations that determine net classes based on the trace widths and spacing of each board. A thorough comprehension of the regulations might help one realize the intended design. Running traces across the component placement and routing must be avoided. Before analyzing the configuration,  perform a route cleanup to check the routing of the circuit.

Additional PCB routing approaches and advice

Different PCB routing suggestions apply to analog parts, terminal components, connectors, and other components. Look at these pointers:

  • To find out the exact width and spacing needed, speak with the PCB maker.
  • To guarantee a steady current flow, you will want power and broader ground connections.
  • The ground and power must be kept close to one another to minimize inductance and prevent noise in the circuit.
  • Depending on the circuit, different trace widths will be present in the power supplies.
  • Large spacing is required when working with high-speed traces to avoid any type of crosstalk.

It can be concluded that having sophisticated routing tools and approaches can greatly enhance designs With the correct guidelines and resources, you can complete even the most challenging designs. Both manual and automatic methods have their merits, but to stay current and produce well-designed PCB designs that meet your needs, you should keep up with the newest technological advancements.

Prospective Developments in PCB Panelization

Miniaturization Difficulties and Solutions

Miniaturization creates new difficulties for PCB panelization as electronic devices get smaller and smaller. To ensure that depanelization techniques can support complex layouts while preserving quality and dependability, designers and manufacturers will need to work closely together. Sophisticated materials and fabrication methods will be crucial in overcoming these obstacles.

Keeping Up Quality and Dependability

Techniques for Testing and Inspecting

Assurance of quality is still the top priority in PCB depanelization. Strict testing and inspection protocols are necessary to find flaws, such as bad components or solder joints, before they become more serious difficulties. Techniques like X-ray testing and automated optical inspection (AOI) are frequently employed to guarantee the integrity of depanelized PCBs.

Reducing the Risks of Panelization

Panelization has several advantages, but it also has certain inherent dangers, like the possibility of uneven solder paste distribution or stress concentration at V-cut lines. Designers and manufacturers need to be very deliberate in their planning and validation to reduce these risks. Minimizing potential problems also involves selecting the right materials and following industry guidelines.

Aspects of Sustainability and the Environment

Cutting Down on Waste in Depanelization One important component of sustainability is less material waste, which is achieved by efficient penalization. Through the optimization of panel layouts and the reduction of inter-PCB space, manufacturers can effectively minimize the quantity of scrap material produced during the manufacturing process. This environmentally friendly strategy fits nicely with the increased focus on sustainable production methods.

Eco-Friendly Practices and Materials

Further improving sustainability can be achieved by depanelization that uses eco-friendly materials and procedures. For example, using lead-free solder complies with standards and lessens its impact on the environment. When creating panelized PCBs, designers can also investigate the usage of recyclable materials and take end-of-life disposal options into account.

Conclusion

To correctly implement a circuit design on a working PCB, well-thought-out routing techniques utilizing both automation and manual tweaking are necessary. Both novice and seasoned designers will benefit from using the techniques in this guide to create routing layouts that are clear, effective, error-free and ready for manufacturing. It is time well spent to pay attention to routing to prevent hassles caused by a board layout that is not ideal. Proper PCB layout guarantees correct signal transfer and improves circuit response as devices get smaller and more sophisticated. It preserves dependability, minimizes interference, and protects signal integrity. Noise, unreliability, and signal distortion can result from poor routing. Thus, it becomes crucial to become proficient in PCB routing. Expertise is needed to navigate obstacles like high-speed signals and intricate architecture. It is essential to maintain controlled impedance, appropriate location, and strict adherence to design limitations. These subtleties are enhanced by multi-layer PCBs, which permit increased component density, enhanced signal isolation, and effective power distribution.
