Printed circuit boards, or PCBs, are the building blocks of electronic devices because they allow signals to flow between components and provide electrical connections between them. Vias, which create interlayer connections, are one of the essential components of PCB design. One popular form of via that is essential to obtaining the best possible performance, reliability, and signal integrity is the staggered via. The purpose of this note is to examine the features, benefits, applications, and manufacturing considerations of staggered vias in detail. As seen in the figure below, they have a conical shape but are joined without overlapping to make an impressive structure.

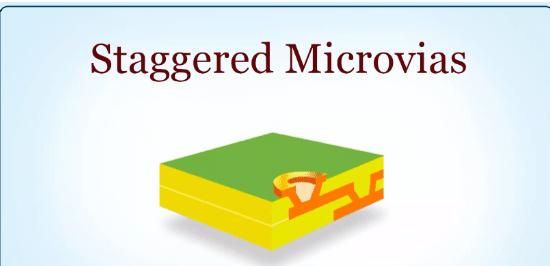

Staggered vias are distinguished by their distinct entry and exit locations on various PCB layers.

Characteristics and Layout:

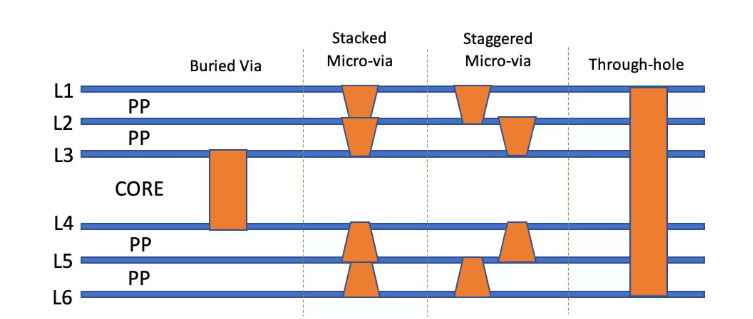

Staggered vias are distinguished by their distinct entry and exit locations on various PCB layers. In order to minimize the possibility of signal crosstalk between neighbouring vias, the entrance and exit points are purposefully spaced apart. This offset design minimizes interference possibility and preserves signal integrity while improving electrical performance.

Benefits of Staggered Vias:

Signal Isolation:

Staggered vias greatly lessen the chance of signal interference between neighbouring vias by offsetting the entry and exit sites. In high-speed applications, where preserving signal integrity is critical, this trait is very important.

Improved Electrical Performance:

Higher-frequency signal transmission is made possible by staggered vias’ reduced resistance and inductance. Improved overall electrical performance is a result of the decreased parasitic effects.

Ease of Manufacturing:

When compared to more sophisticated via types, staggered vias are comparatively easier to create. They necessitate perforating the entire printed circuit board, and the offset design is simply incorporated into the manufacturing process.

Tighter designs:

Upon closer inspection of the high-density interconnect PCB, we can see that the circuit network connections on the board are extremely intense. Because of its tremendous intensity, the board appears to require less actual physical space. The designers can create more compact constructions by utilizing design elements like tacked and staggered vias, which will increase the versatility of HDI circuits.

Reduced trace lengths:

In comparison to other regular vias,  have shorter trace lengths. The smaller dimensions and sizes of the staggered are the cause of this. Additionally, a micro via’s smaller size enhances its FR capabilities and EMS features.

Outstanding dependability:

Staggered via is far more inventive and efficient than through-hole when taking reliability into account. Compared to other vias, microvias are far more dependable, regardless of the size of the circuit board. Microvias are a dependable solution for preserving a circuit board’s thermo-mechanical dependability. Additionally, a PCB’s functionality and performance are impacted by staggered via reliability.

Encouragement of cutting-edge technology:

This is just another fantastic advantage of microvias. Staggered fit into a PCB with less room. As a result, they enable the production of compact and smaller PCBs. Compact PCBs are also now a common feature of contemporary electronics.

Manufacturing challenges of PCBs using staggered vias

Drilling:

Using a laser to drill micro vias frequently requires exact adjustment of the laser’s parameters to ensure that the holes produced are the right size and form.

Plating:

Specific plating techniques must be used to ensure that micro vias are correctly attached to the other printed circuit board (PCB) layers.

Examine:

Staggered Microvias may be difficult to visually verify, thus non-destructive testing methods may be required to ensure proper production and connection.

Selection of materials:

The materials chosen for use on the printed circuit board can have a big impact on how reliable staggered micro vias are. The materials utilized in the production of micro vias must be of a high grade.

Select Top-Rated PCB Manufacturers:

It’s critical to find a reputable manufacturer who guarantees accurate positioning of staggered vias. The best manufacturers are able to perfectly design the PCB board to fit your specifications. Their state-of-the-art and well-equipped manufacturing facility operates high-tech machinery and processes. Providing consistency and quality should be the aim of a PCB maker. Thus, deal with the PCB manufacturing company to obtain a superior product.

PCB Runner provides all services under one roof as a PCB manufacturer in the UK and Europe and a PCB assembly service provider in the UK and Europe. Our clients receive single-window service. In order to make it easier for our customers to work with our printed circuit board production and assembly skills, we offer exclusive services. Our clients pick us because we provide:

Trusted PCB Provider in Europe and the UK
24 Hour Tech Support Using PCB Runner

High-Grade PCB Manufacturing in the UK and Europe
Get A Free PCB And Assembly Quote Right Now

Pcb Runner manufacturing capabilities

Advanced PCB Board Types


We provide a range of sophisticated PCB board kinds and HDI board types, including the following:

  • From the topmost layer to the bottommost layer, via vias
  • Blind vias connecting two or more HDI layers to a surface layer
  • Buried /staggered  amidst two or more inner HDI strata
  • Substrates that are passive and not connected electrically
  • Coreless structure with pairwise layers
  • Coreless construction alternative using a pair of layers

There are more benefits when you use our HDI boards. By simply converting their current design to an HDI board design, any innovative organization can reap the benefits of HDI boards. Manufacturer of High-Density Interconnect, PCB Runner, provides a wide range of services for converting your advanced printed circuit boards to HDI PCB design.

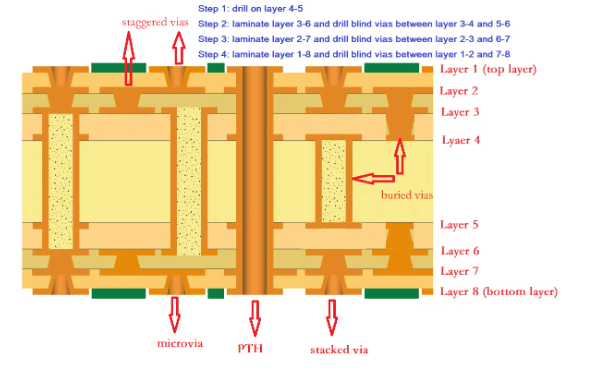

Buried staggered via – How Are Buried and Blind Vias Constructed?

Drilling

The multilayer lamination can be done either before or after the vias are formed. Drilling is used to add the blind and buried vias to the PCB, which might be risky. It is critical that the builder comprehends and is conscious of the drill’s depth. Insufficient depth in the hole could prevent a strong connection. However, if the hole is too deep, it may result in distortion or a deterioration of the signal. It wouldn’t work if any of these things happened.

The process of sequential lamination

A hydraulic press is used to laminate the layers of copper in a printed circuit board (PCB) together at high temperatures and pressures. The layers are separated by a fibreglass sheet that has been pre-impregnated with epoxy. Sequential lamination can be used to incorporate buried vias into a PCB. A PCB with buried vias is produced by first creating a layer with blind vias (as though it were a two-sided PCB) and then consecutively laminating this layer with an inner layer.

Plating and Metallization

Each staggered microvia hole contains tiny conformal seed layers of metal deposited by electroless copper techniques. Thicker metal is subsequently deposited in a subsequent copper electroplating operation until the via is filled to the level of the pad surface. For reliability, a flawless, void-free copper plating is essential.

Process Management

To maximize manufacturing yield, integrity must be maintained throughout the drilling, metallization, and imaging processes. In order to maintain depth uniformity, plate quality, microvia diameters, and capture pad sizes within allowable tolerances and move toward 6 sigma capability levels, statistical process controls are in place.

Staggered Microvia PCBs balance cost restrictions and achieve strict functionality requirements during volume manufacturing by utilizing such disciplined methodologies.

Applications of Staggered Via PCBs

Staggered vias are widely used in many different contexts, such as:

1. Consumer electronics:

These devices are frequently used in laptops, tablets, cellphones, and other portable devices when limited space demands effective interconnection solutions.

2. High-Speed Designs:

In high-speed PCB designs, like those used in data centres, networking equipment, and telecommunications devices, staggered vias are preferred. Staggered vias are perfect for processing high-frequency signals because of their improved signal integrity characteristics.

3. Multilayer PCBs:

Staggered vias work well in these situations because they offer a dependable way to connect the various layers of the board.

4. Defence and Aerospace:

Aerospace applications are characterized by strict quality standards and long working lifetimes. Staggered microvias maintain G-forces under extreme circumstances and combine steering systems.

5. Medical Equipment:

Staggered Microvias in implanted devices, ultrasonic transducers, and other instruments are motivated by the connecting of multilayer rigid-flex-rigid printed circuit boards that conform to human anatomy.

6. Emerging Applications:

Staggered Microvia PCBs will be essential to the intrinsic scalability of consumer IoT networks and associated edge devices as sophisticated circuitry moves toward self-learning capabilities.

The needs for electronic functionality seem to be growing with each new generation of products. Microvias are therefore still being used at an exponential rate on a global scale in businesses where intelligence, speed, and efficiency criteria are always increasing.

Quality and Compliance

Strict Quality Control

At PCB Runner, we recognize the value that PCB functionality and quality have for our clients. For this reason, we incorporate quality-oriented concepts throughout every stage of the assembly and production of PCBs. We are still dedicated to conducting all PCB-related activity in accordance with recognized worldwide quality standards.

We ensure that every one of our assembled and bare PCBs meets or surpasses the exact specifications provided by our customers. Our reputation for excellent quality, timely delivery, and competitive pricing is attested to by our clientele.

Our products are guaranteed to be of the highest quality and dependability thanks to our strict manufacturing procedures. International standards like ISO9001 are met by us, and we are eligible for IPC Classes 2, 3, and 3A.

ACCREDITATIONS

We withhold a number of PCB certifications as a symbol of our dedication to the quality management system, demonstrating our steadfast commitment to upholding standards of quality.

Use the icons below to browse through our official certifications.

The 2015 ISO 9001 standard

ISO 14001:2015

ISO 13485:2016

Our engineers are all certified IPC A-610 personnel. Please get in touch with us if you would like more information.

The following six quality control areas are what you should search for in a PCB CM:

  • IPC accreditation: Your board’s production technicians must be qualified in soldering, reworking, and other assembly tasks.
  • Component knowledge: To ensure that your board is constructed using the best parts, the CM should have engineering procedures and checks in place.
  •  Controls for processes: System and assembly methods that are documented are essential to preserving manufacturing process uniformity.
  • Verifications of assembly: Solder joints on assembled boards should be checked both before and after soldering.
  • Exam and evaluation: Every task must be continuously confirmed using a variety of automated and manual inspection methods.
  • Practical workstation: Complex printed circuit board assemblies must be constructed on an orderly and well-maintained assembly line that spans the factory and includes each individual workstation.

Advantages of choosing us:

For the production and assembly of fully functional printed circuit boards, PCB Runner is the recommended option. The diversity and adaptability of the solutions we provide are preferred by our clients. We provide every kind of printed circuit board you need, ranging from single-layer to multi-layer, rigid boards, rigid-flex boards, and HDI boards. No matter the quantity of your purchase, we can handle boards of any form or size that you require.

The fact that PCB Runner has specialists for every step of PCB assembly and manufacturing is by far our greatest asset. We provide PCB fabrication and assembly services that are full turnkey, partial turnkey, and full feature. To put it briefly, we provide a comprehensive end-to-end solution for your projects. From design and manufacturing to assembly, testing, packing, and shipping, our professionals will be at your side every step of the way.

You will quickly see the benefits of working with PCB Runner for your PCB fabrication and assembly since they are a one-stop shop, saving you the trouble of contacting multiple businesses to finish your project.

Our Proficiency

  • PCB Panels
  • Layer Stackup, Blind, and Buried
  • Lead Free
  • Soldering Through Laser
  • Micro Via
  • via in Pad
  • Full-Featured PCB Manufacturing and Assembly Capabilities offered by  PCB Runner
  • Stiff PCBs
  • Flexible PCBs
  • PCBs that are rigid-flexible
  • PCBs using High Density Interconnect (HDI)
  • PCBs with many layers

Base Materials for PCBs

What we can offer you is:

  • PCBs at High Temperatures
  • PCBs that comply with RoHS regulations
  • PCBs with High-Frequency RF
  • Fast Digital PCBs
  • Prototype PCB Assembly, PCB Services, and PCB Assembly
  • Sources for Components: Low Volume, High Volume, Partial Turnkey, and Full Turnkey PCB Assembly

Read More: Stacked Via PCB Manufacturing Services for UK and Europe

Conclusion

An essential component of PCB design, staggered vias allow for effective interlayer communication while preserving signal integrity. Their special offset design improves electrical performance and lessens signal interference, which makes them appropriate for a variety of uses, especially in multilayer PCBs and high-speed designs. The significance of staggered vias in producing dependable and high-performing printed circuit boards (PCBs) will not diminish as technology advances, propelling improvements in manufacturing processes and guaranteeing the continuous development of electronic products.


PCB Runner specializes in Staggered Via Manufacturing with complex specifications for all industries and critical design requirements. Please do submit your schematics & BOM files to our email at sales@pcbrunner.com or engineering@pcbrunner.com
