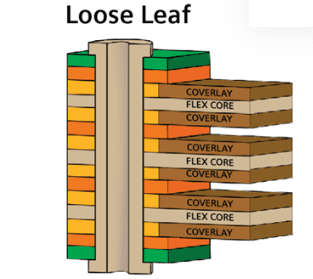

Consider using a loose-leaf approach to the stack-up in the bend regions of flex when there are four or more layers present. Making flex cores on several levels to place two or three flex pieces in between the stiff materials is a solution for a high layer count. In terms of pliability, using three stacked flexes with two or three layers each is preferable to a six-layer flex region.

Flex thickness, width, and copper content all have an impact on flexibility and bend radius, as many FPCs have a restricted bend radius. There is an option to go below the minimal advised bend radius when using the loose-leaf technique. Calculating the minimum bend radius depending on the thickness of each layer in the stack-up is made possible by separating the layers into a separate flexible printed circuit board. However, each individual flex circuit is constructed to be a little bit longer than the one behind it, giving all of the flex elements enough space to bend without putting undue strain on either the layer next to it or on themselves.

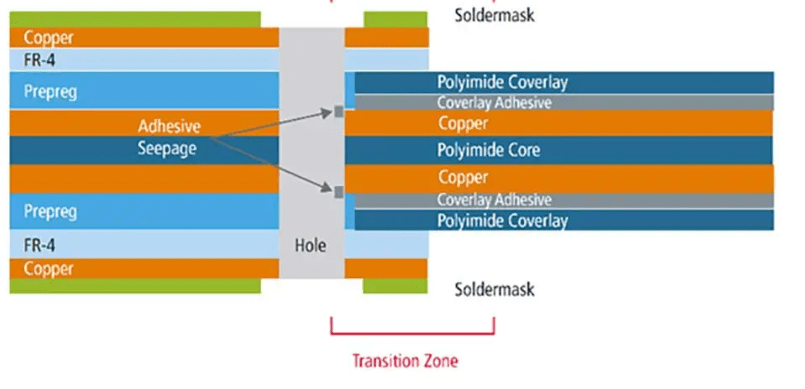

Our HDI loose leaf stack up manufacturing services in Europe provide cost-effective solutions for high-density PCB designs.

Complex Design Rules:

Compared to stiff PCBs, rigid-flex PCBs frequently have more complex design rules. Bend radii, layer stackup, and material limitations are just a few of the mechanical and electrical specifications that designers must be aware of when working with rigid and flexible parts.

Bend Radius Considerations:

Selecting the right bend radius for the flexible sections is a crucial part of the rigid-flex design process. Selecting an excessively small bend radius can result in signal integrity problems and mechanical failure. For example, if the thickest sub-composite is 0.3 mm, then the IPC rules for determining the minimum bend radius yield a result of 3.0 mm. This falls much short of the minimum required by the original design.

Signal Integrity and EMI Control:

It can be difficult to keep signals intact and manage electromagnetic interference (EMI) in the flexible parts. Signal quality can be impacted by the substrate’s flexibility and the signals’ closeness to the bend location.
Layer Transition: It can be difficult to smoothly move signal layers from the rigid to the flexible regions. Impedance mismatches and signal loss can be caused by misalignment or inappropriate layer transitions.

 Flexible circuit boards, also known as rigid-flex circuit boards, are primarily used to enhance product integrity while conserving space or helping to reduce the end product’s size. Although this product can cost up to twice as much as a solid circuit board or much more than a wire assembly, its application and reliability are growing. The success of your product depends on your ability to design rigid-flex or flex PCBs correctly. Working with your supplier and their experts is the best and fastest route to market.

Flexible-rigid PCB stacking

Flex ribbon

You must describe your flex ribbon using a stack up that is comparable to your rigid PCB once you begin designing stiff flex PCBs. Since flex ribbons are thinner than the boards they interface with, they must have the same stack up as the rigid printed circuit board’s inner layers. In addition to carrying signal between boards, flex ribbons usually require a ground return connection.



 Copper design with crosshatching

Use a cross-hatched copper pattern if you want to stretch a power or ground plane all the way across the flex ribbon. Compared to a solid copper film or copper foil, cross-hatched copper is more flexible. In the event that signal layers on the flex ribbon require shielding, cross-hatched copper should also be utilized.

Immediately beneath the cover layer is the signal layer

Unless you want to place components directly on the ribbon, the signal layer on a flex ribbon does not need to be positioned exactly below the cover layer. As long as the signal layer is below the cover lay, SMT components can be positioned directly on the ribbon. This is turning into a more common design option.

The signal layer needs to have solder lands placed in it

In order for SMT components to reach the signal layer, the cover lay must have holes drilled in it and solder lands positioned immediately beneath it. Make sure your fabricator can handle your chosen design by always checking with them. It is always best to put components so that their length is parallel to the bend rather than placing them immediately in the bend area.





Owing to the wide variety of alternatives available when creating flex PCB layer stack-ups, designers should speak with their fabrication company to ensure that the stack-up they have in mind can be produced in a dependable manner. There are many distinctive design options available with flex and rigid-flex PCBs, but designers should make sure their idealized loose leaf stack up can be built as planned.

Bond piles and cover lays

Flexible materials called cover lays are used to shield and insulate the flex circuitry on surfaces and stop them from lifting. They are usually placed outside of a flex sub stack. An adhesive is usually placed on the side that faces the copper in a cover lay structure, with a polyamide dielectric placed on top. bond piles, which have adhesive on both sides and a polyamide dielectric in the centre, are utilized on inner strip line layers and resemble cover lays. They are applied while joining two flex cores.
